Home >> Ford >> 2003 >> Explorer 4.0 E, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Diagnosis And Testing >> Speed Control >> Pinpoint Test G: The Speed Control Indicator Lamp Is Always On >> Testing

Pinpoint Test G: The Speed Control Indicator Lamp Is Always On: Testing

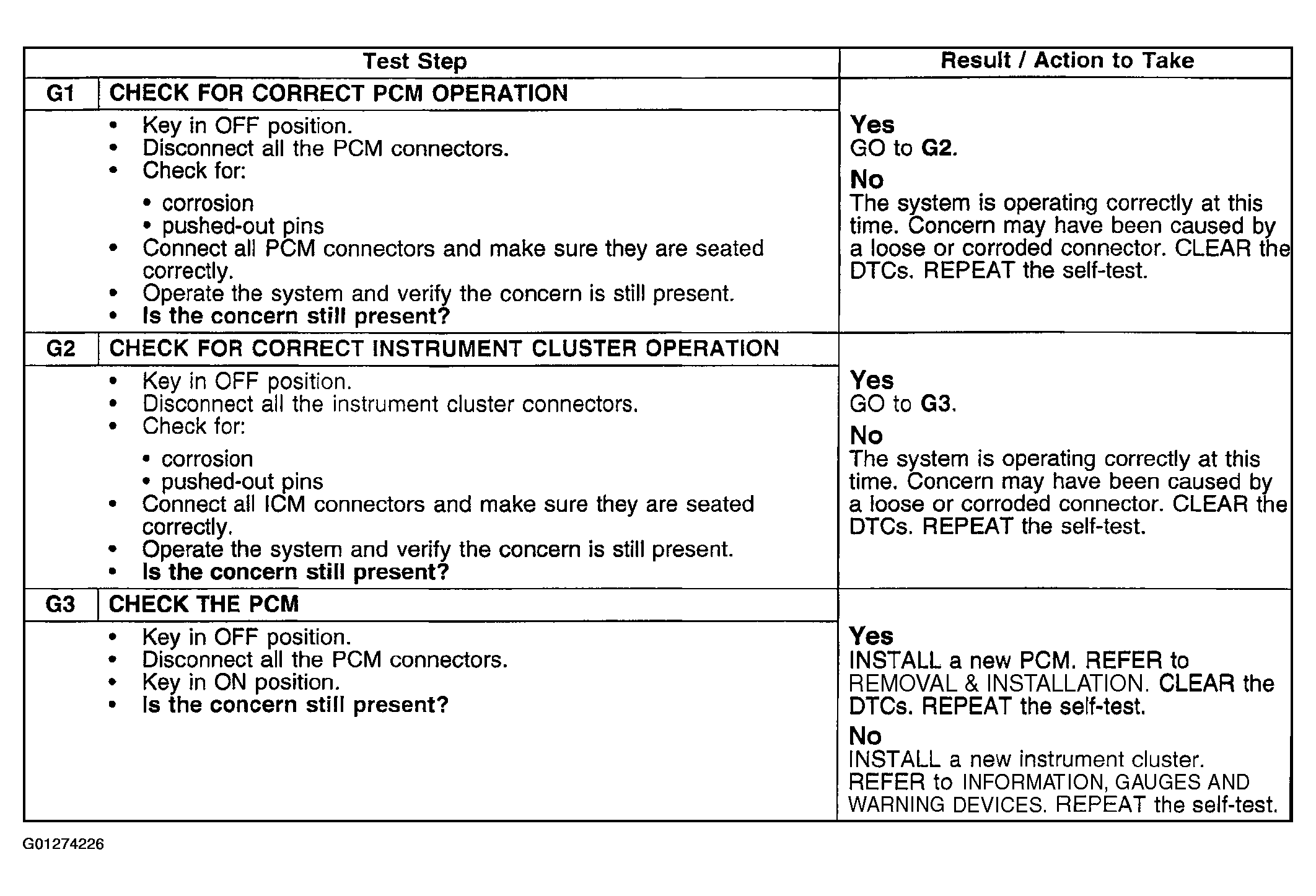

Fig 1: Pinpoint Test G: Speed Control Indicator Lamp Is Always On (G1 - G3)

G01274226

Courtesy of FORD MOTOR CO.
