Selective Thrust Washer Specifications

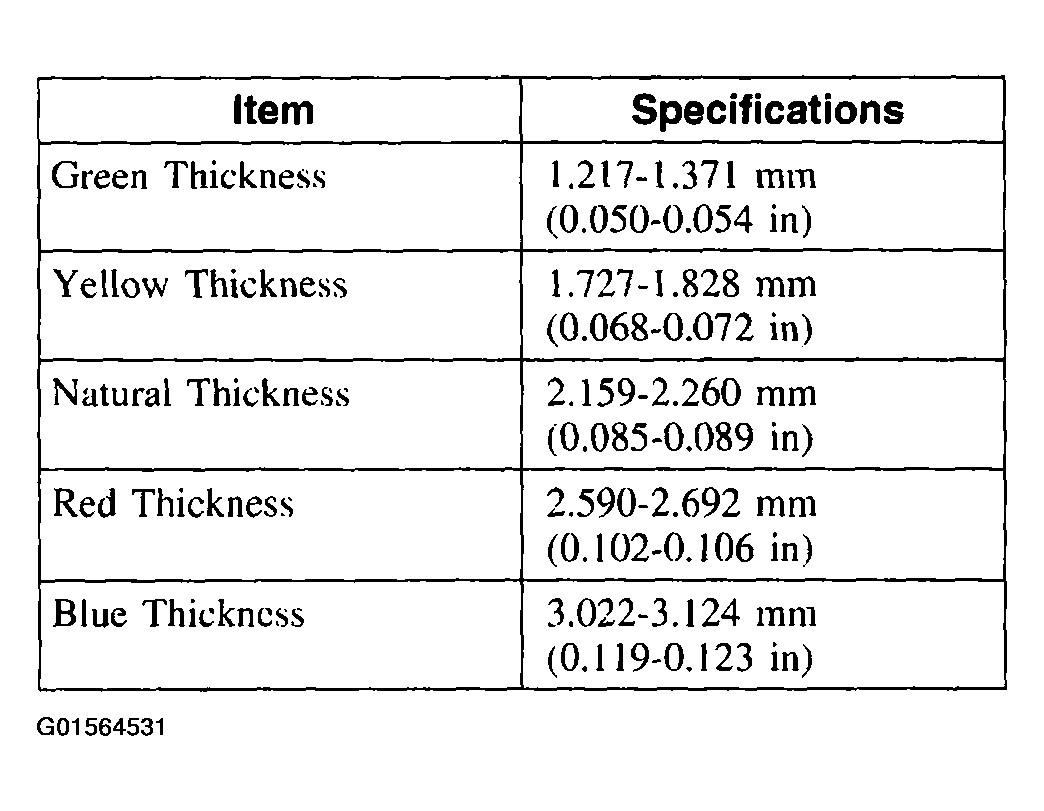

Fig 1: Selective Thrust Washer - No. 1 Specifications

G01564531

Courtesy of FORD MOTOR CO.
