Description And Operation
>>
Main Components And Functions
Main Components And Functions

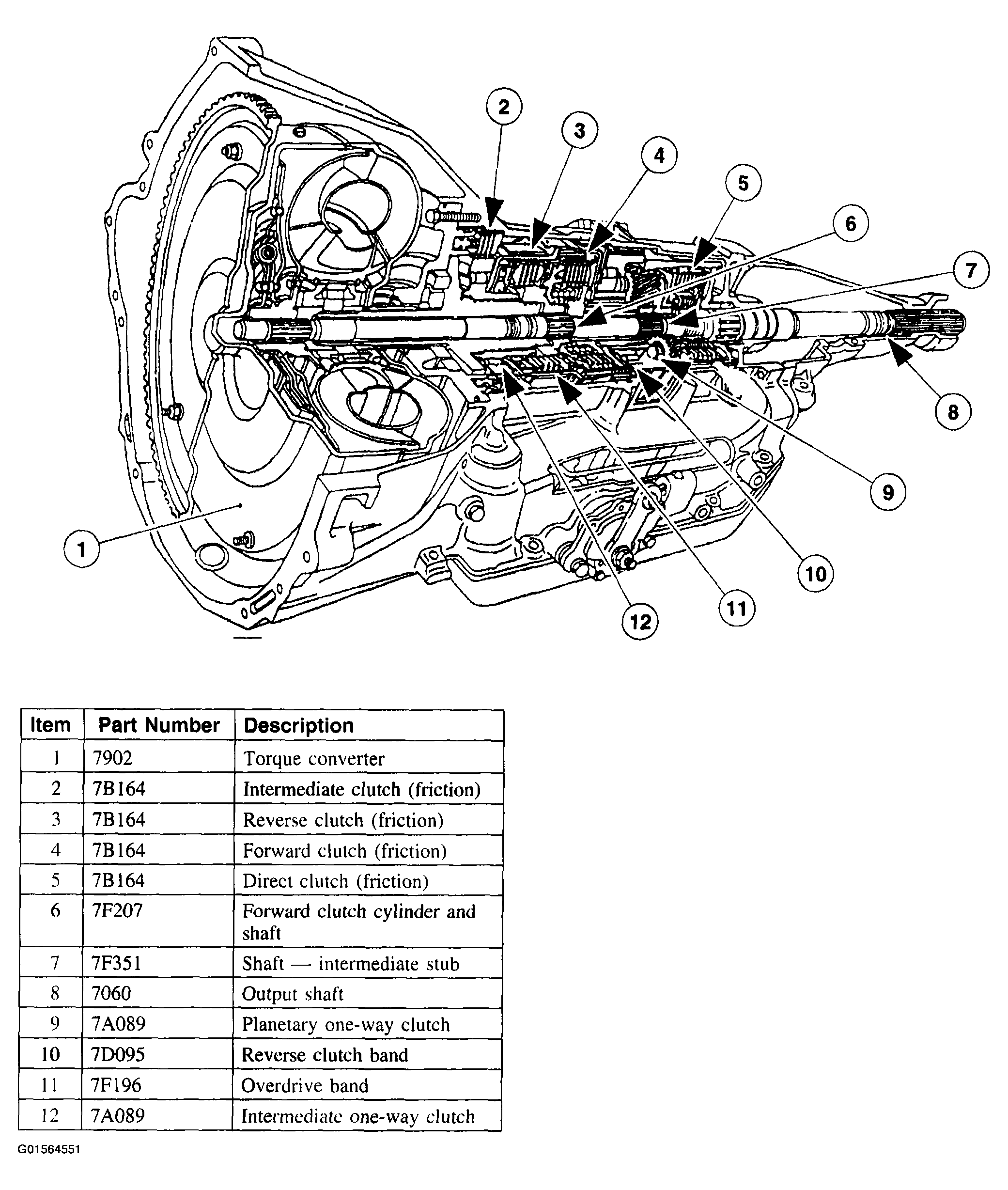

Fig 1: Locating Transmission Main Components (Cross Sectional View) And Item Description Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
