Advance Trac®/IVD Switch C3208

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

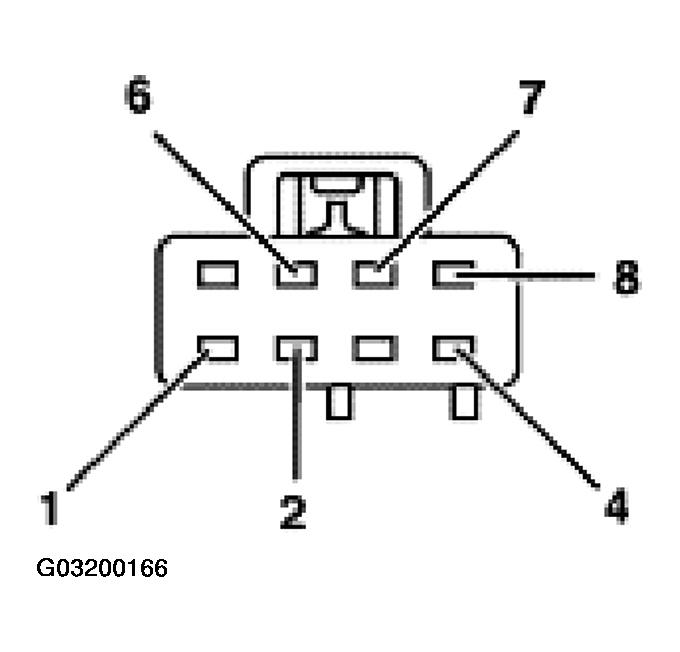

C3208 CONNECTOR REFERENCE CHART

G03200166
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 20-CF54 (PK/WH) Advance Trac®/IVD switch power Greater than 10 volts on actuation.
2 8-CF54 (WH/VT) Advance Trac®/IVD signal Greater than 10 volts on actuation.
4 31S-CF45 (BK/GN) Advance Trac®/IVD OFF signal Greater than 10 volts with switch OFF.
7 31-LH45 (BK/WH) Switch illumination ground Zero voltage, less than five ohms to chassis ground.
8 64S-LH45 (BU/OG) Switch illumination power Greater than 9 volts on actuation when connected.
