Pinpoint Test H: Flash Code 3 - DEACTIVATOR Switch Circuit Failure

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

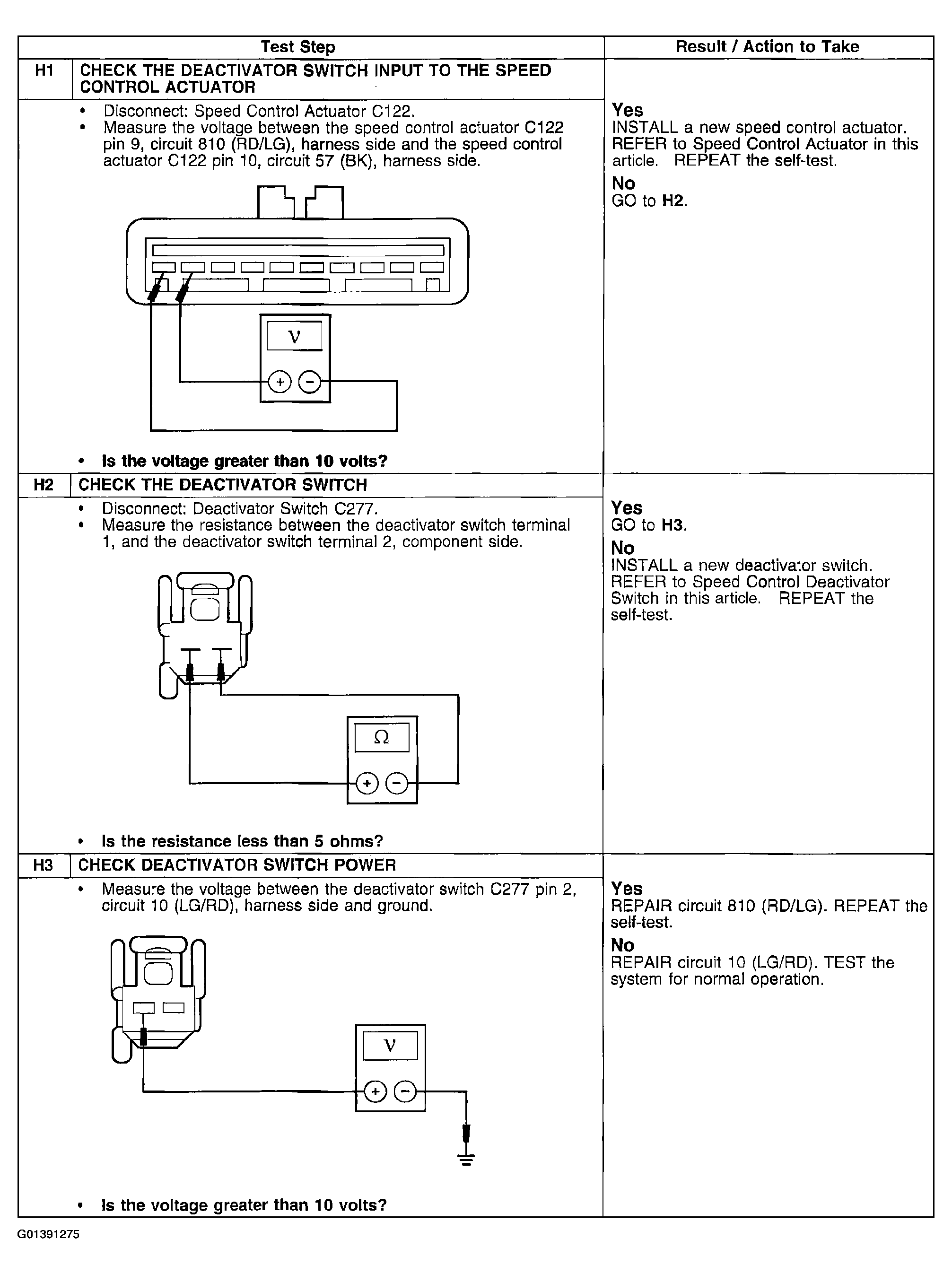

Fig 1: Pinpoint Test H: Flash Code 3 - Deactivator Switch Circuit Failure (Steps H1-H3)
G01391275Courtesy of FORD MOTOR CO.
