Pinpoint Test B: The Set Speed Fluctuates

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

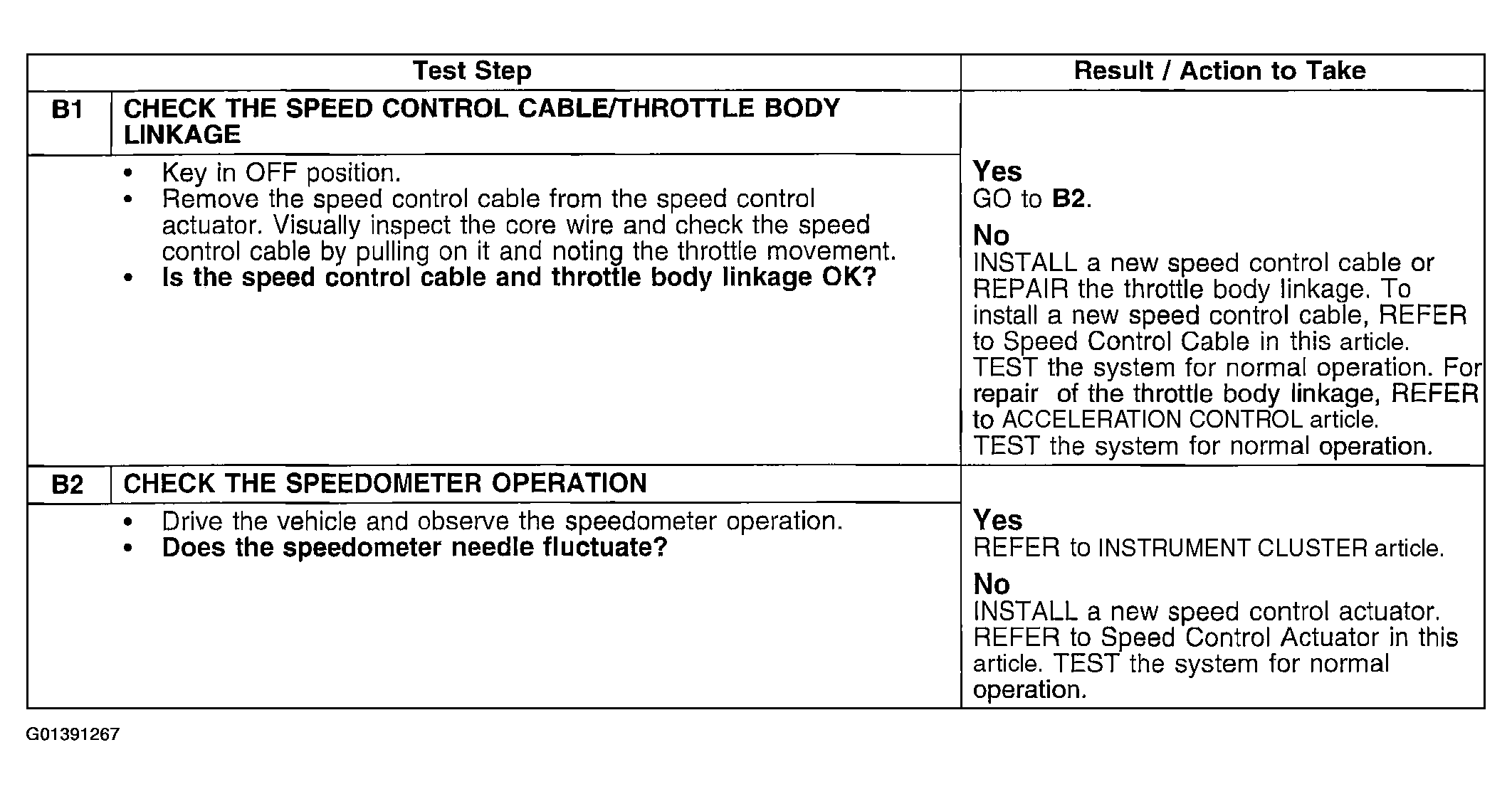

Fig 1: Pinpoint Test B: Set Speed Fluctuates (Steps B1-B2)
G01391267Courtesy of FORD MOTOR CO.
