Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Clean and inspect the mating surfaces.
  2. Position the oil pump and loosely install the bolts. Tighten the bolts in the sequence shown.

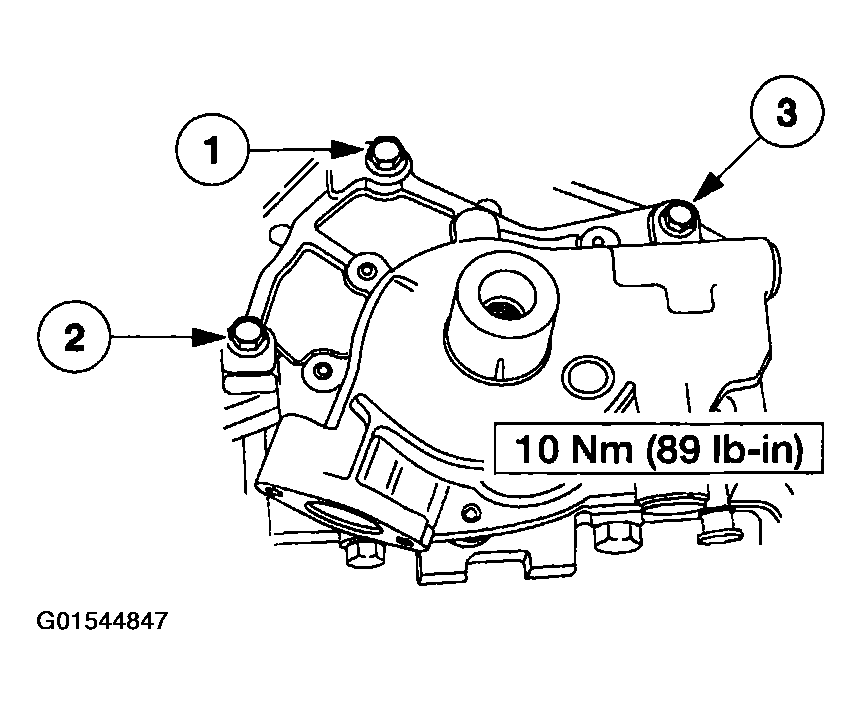

    Fig 1: Positioning Oil Pump And Installing Bolts
    G01544847Courtesy of FORD MOTOR CO.
  3. Install the oil pan. Refer to OIL PAN - Automatic Transmission  or OIL PAN - Manual Transmission .
  4. Install the timing chain (6268). Refer to Timing Drive Components .
  5. Connect the battery ground cable.
