Removal & Installation

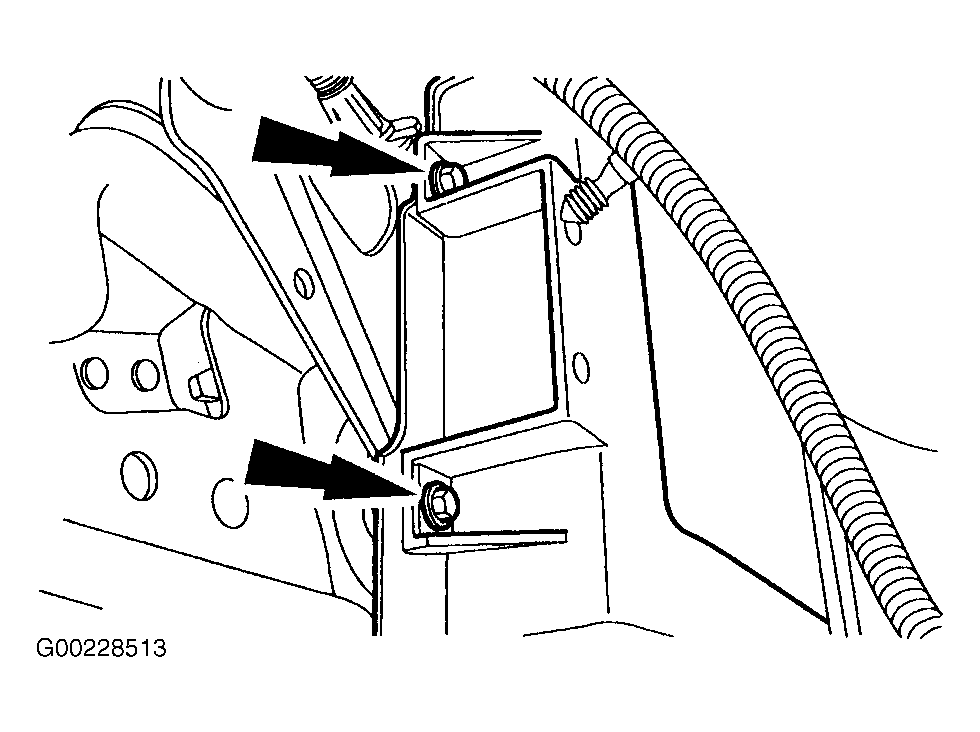

Disconnect negative battery cable. Remove any component(s) necessary to gain access to PCM. PCM is located behind left side of instrument panel, near brake pedal, through bulkhead. Loosen PCM harness connector retaining bolt. Unplug harness connector from PCM. Remove 2 PCM mounting bolts. See Fig 1. Remove PCM bracket with PCM. Separate PCM from bracket. See Fig 2. To install, reverse removal procedure. Tighten bracket bolts and PCM harness connector bolt to specification. See TORQUE SPECIFICATIONS .
