Pinpoint Test C: The Transmission Control Switch Is Inoperative

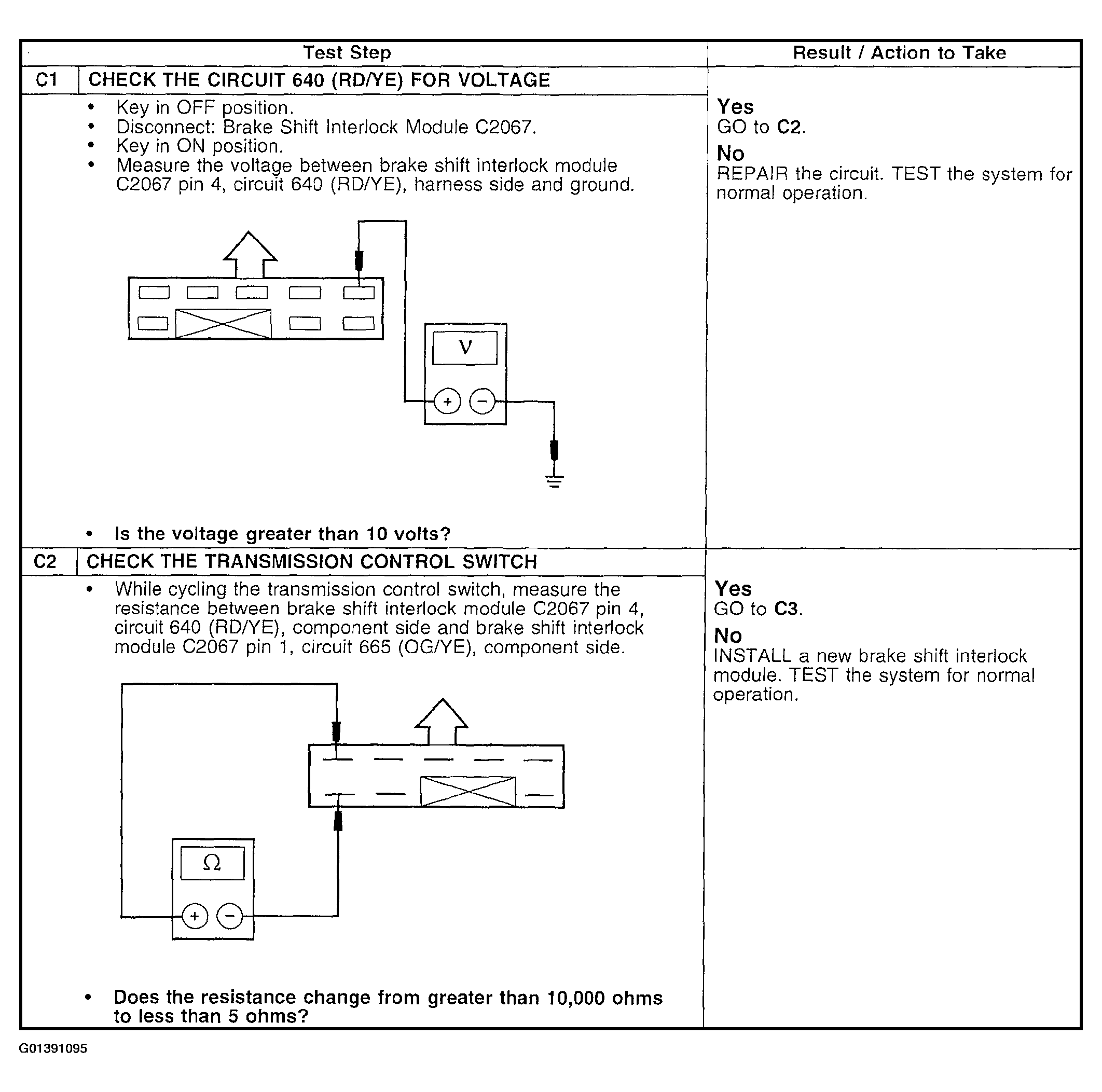

Fig 1: Pinpoint Test C: Transmission Control Switch Is Inoperative (Steps C1-C2)
G01391095Courtesy of FORD MOTOR CO.

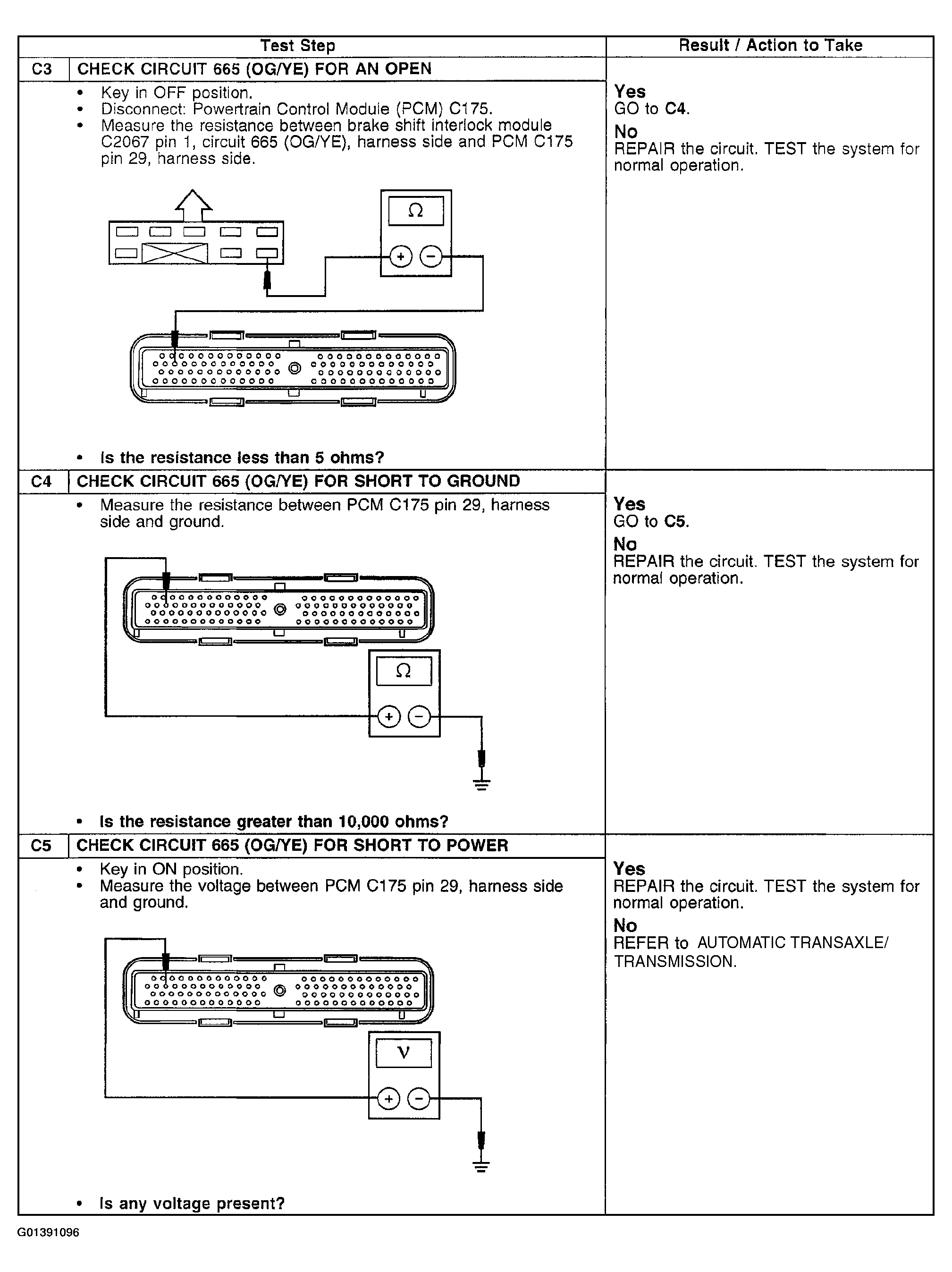

Fig 2: Pinpoint Test C: Transmission Control Switch Is Inoperative (Steps C3-C5)
G01391096Courtesy of FORD MOTOR CO.
