Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Remove the four screws and the climate control assembly.

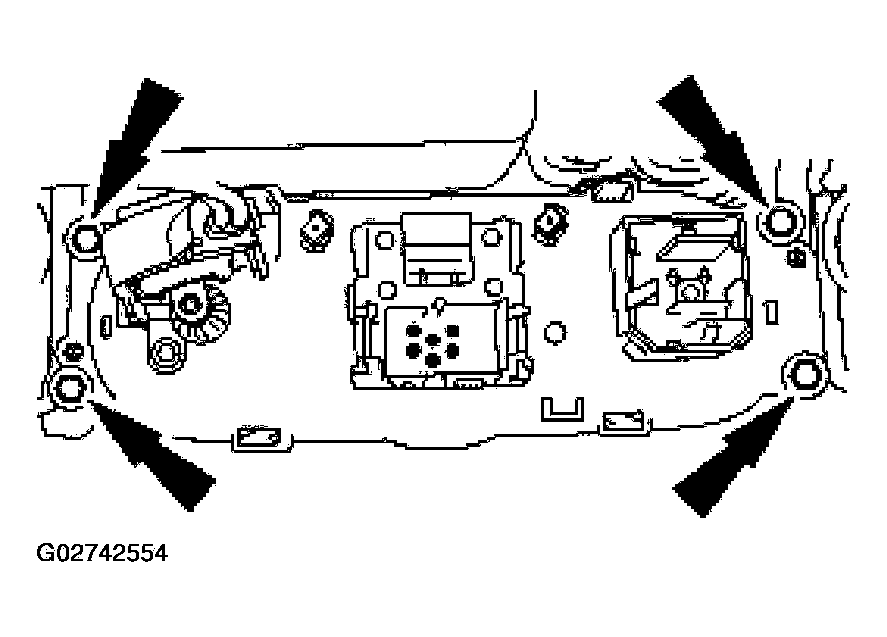

    Fig 1: Removing Climate Control Assembly Screws
    G02742554Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
