Generic Electronic Module (GEM) Connector End View (C201b)

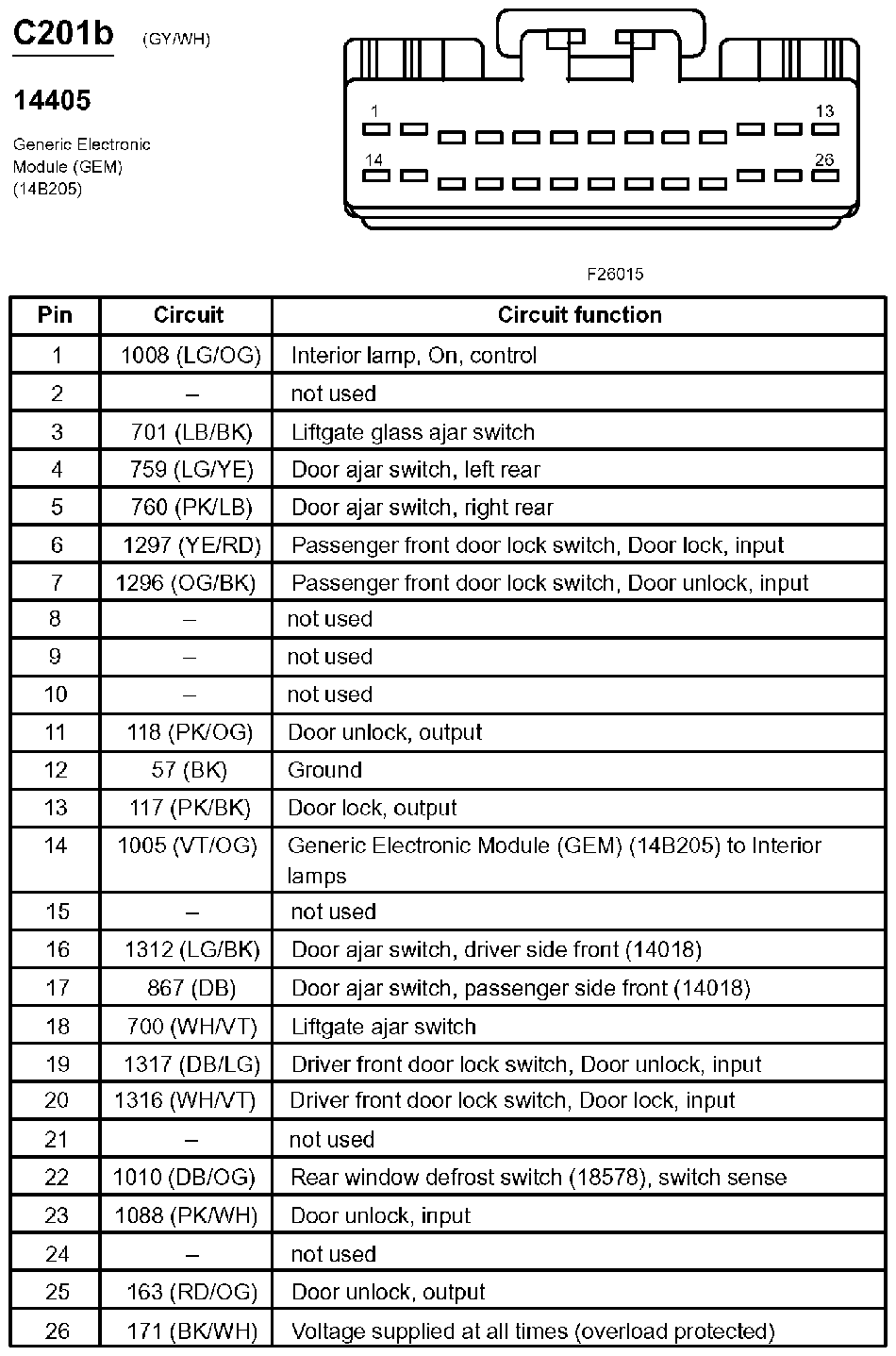

Fig 1: Generic Electronic Module (GEM) Connector End View (C201b)

G07831459

Courtesy of FORD MOTOR CO.
