Generic Electronic Module (GEM) Connector End View (C201a)

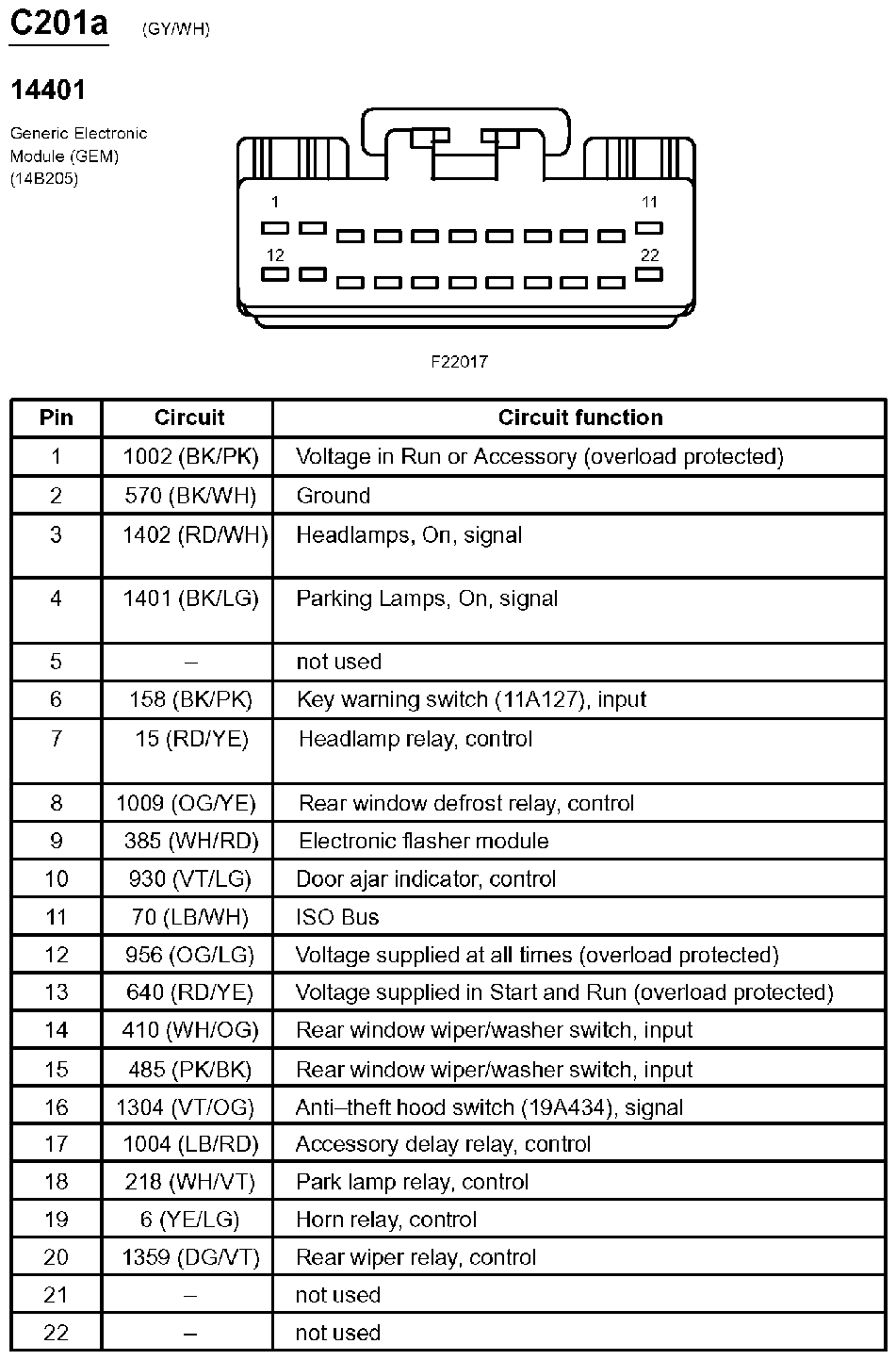

Fig 1: Generic Electronic Module (GEM) Connector End View (C201a)

G07831458

Courtesy of FORD MOTOR CO.
