Pinpoint Test G: Abs Warning Indicator Always On, No DTCS

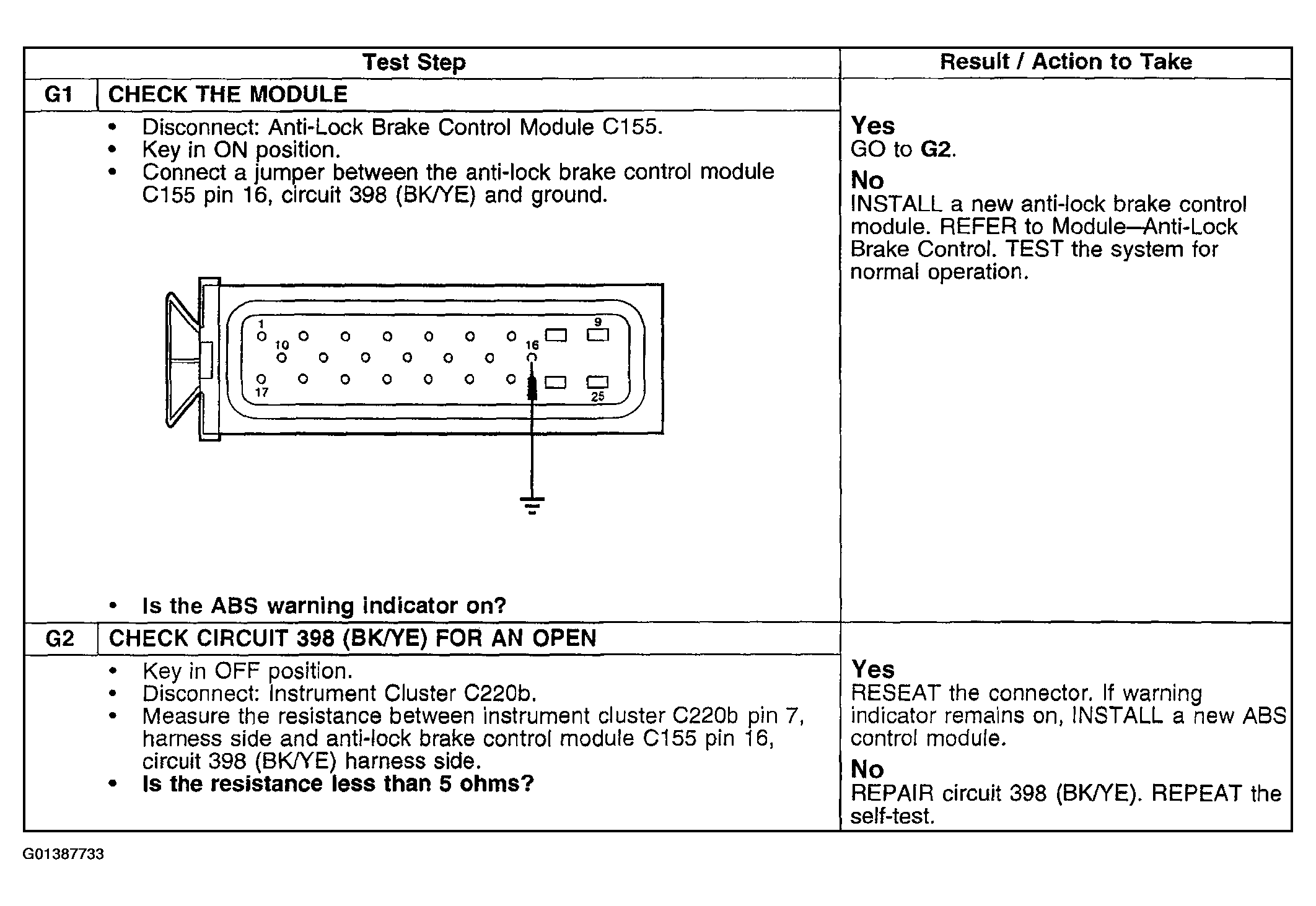

Fig 1: Pinpoint Test G: ABS Warning Indicator Always On, No DTCS

G01387733

Courtesy of FORD MOTOR CO.
