Removal and Installation

  1. Disconnect the battery ground cable.
  2. Remove the headlamp switch knob.
    1. Remove the headlamp switch knob.
    2. Rotate the headlamps switch bezel counterclockwise and remove.
    Fig 1: Removing Headlamp Switch Knob
    G01453060Courtesy of FORD MOTOR CO.
  3. Remove the instrument panel finish panel.
    1. Remove the screws.
    2. Remove the instrument panel finish panel.
    • Disconnect the electrical connectors.

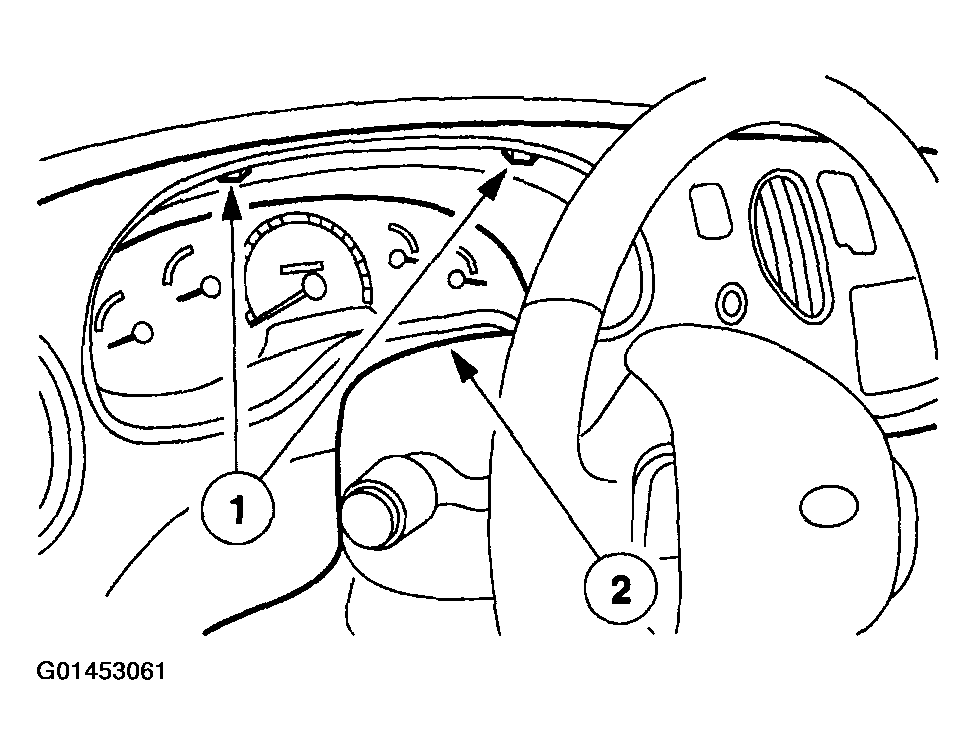

    Fig 2: Removing Instrument Panel Finish Panel
    G01453061Courtesy of FORD MOTOR CO.
  4. Remove the control assembly.
    1. Remove the screws.
    2. Remove the control assembly.

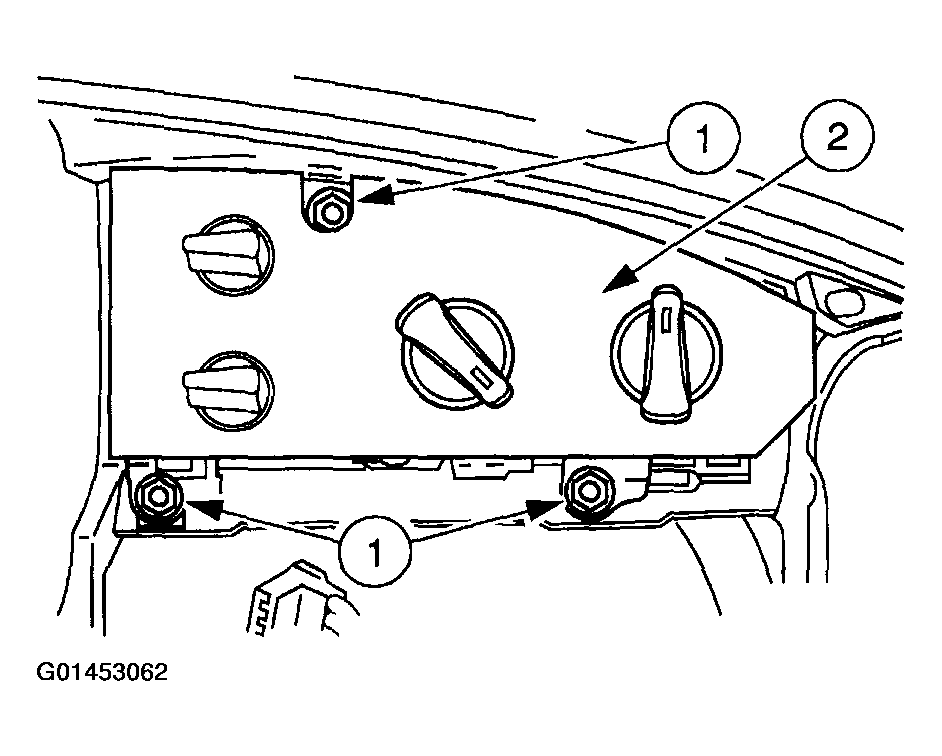

    Fig 3: Removing Control Assembly
    G01453062Courtesy of FORD MOTOR CO.
  5. Disconnect the vacuum harness and electrical connectors.
    • Disconnect the vacuum harness connector.
    • Disconnect the electrical connectors.

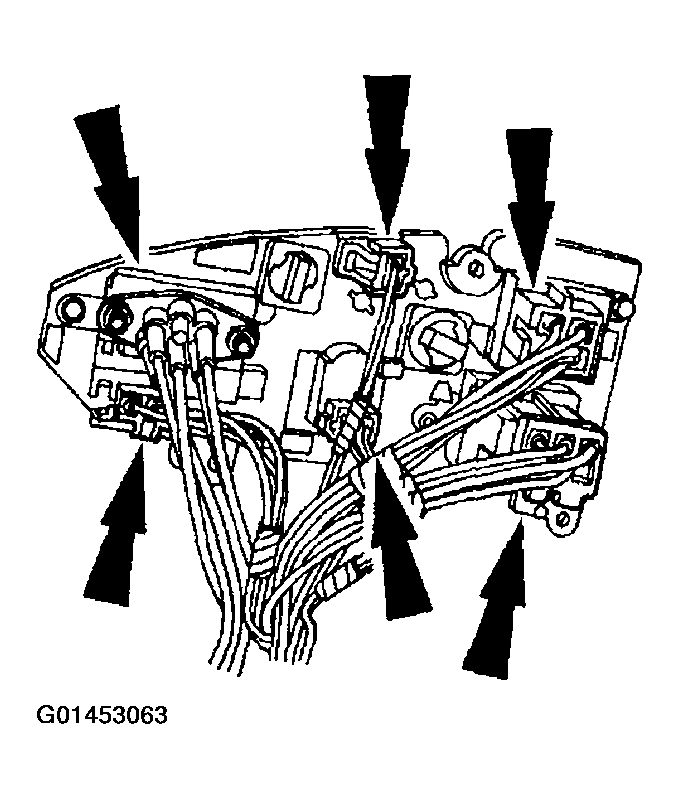

    Fig 4: Disconnecting Vacuum Harness And Electrical Connectors
    G01453063Courtesy of FORD MOTOR CO.
  6. Remove the control assembly.
  7. To install, reverse the removal procedure.
