Component Locations

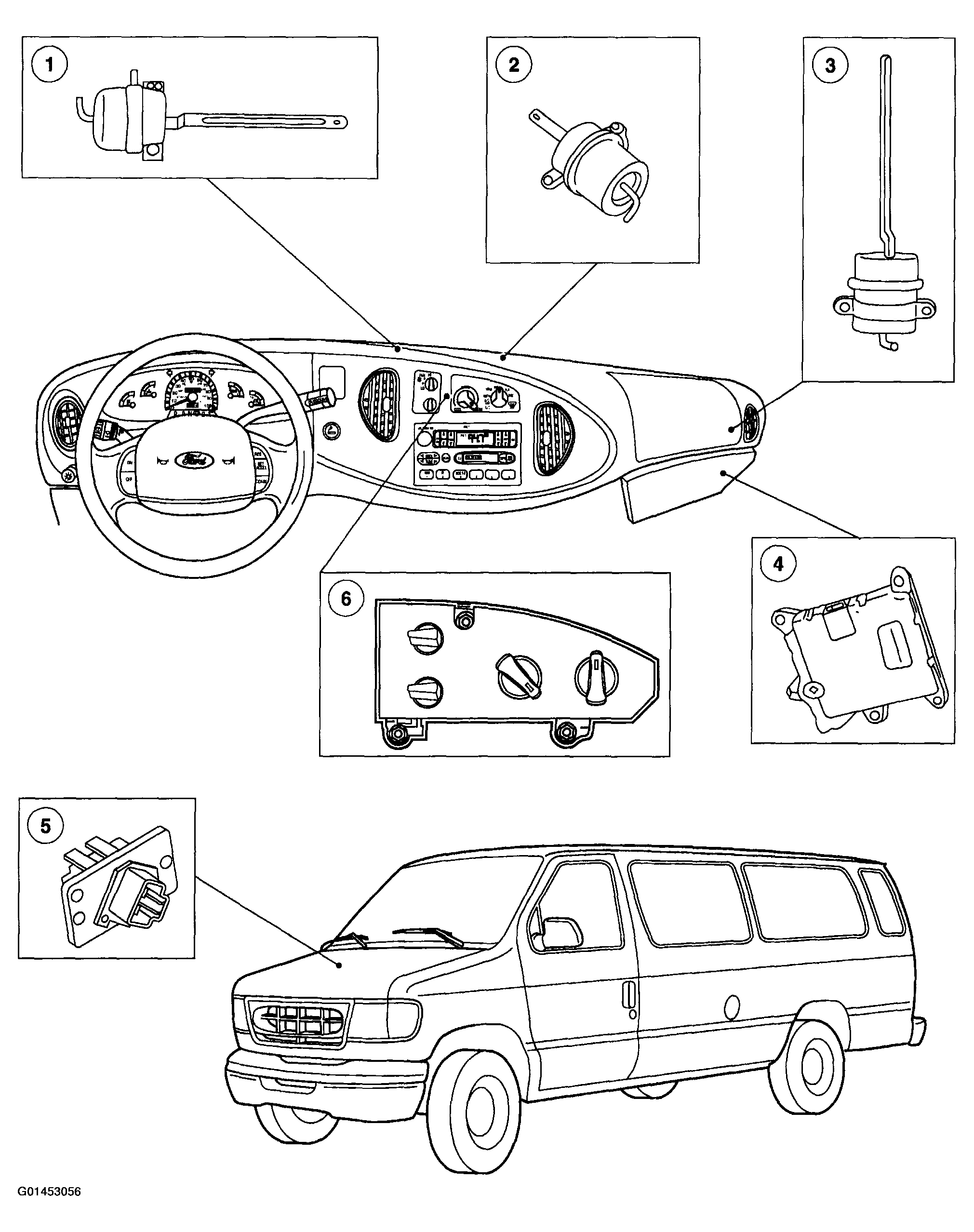

Fig 1: Locating Control Components (1 Of 2)

G01453056

Courtesy of FORD MOTOR CO.

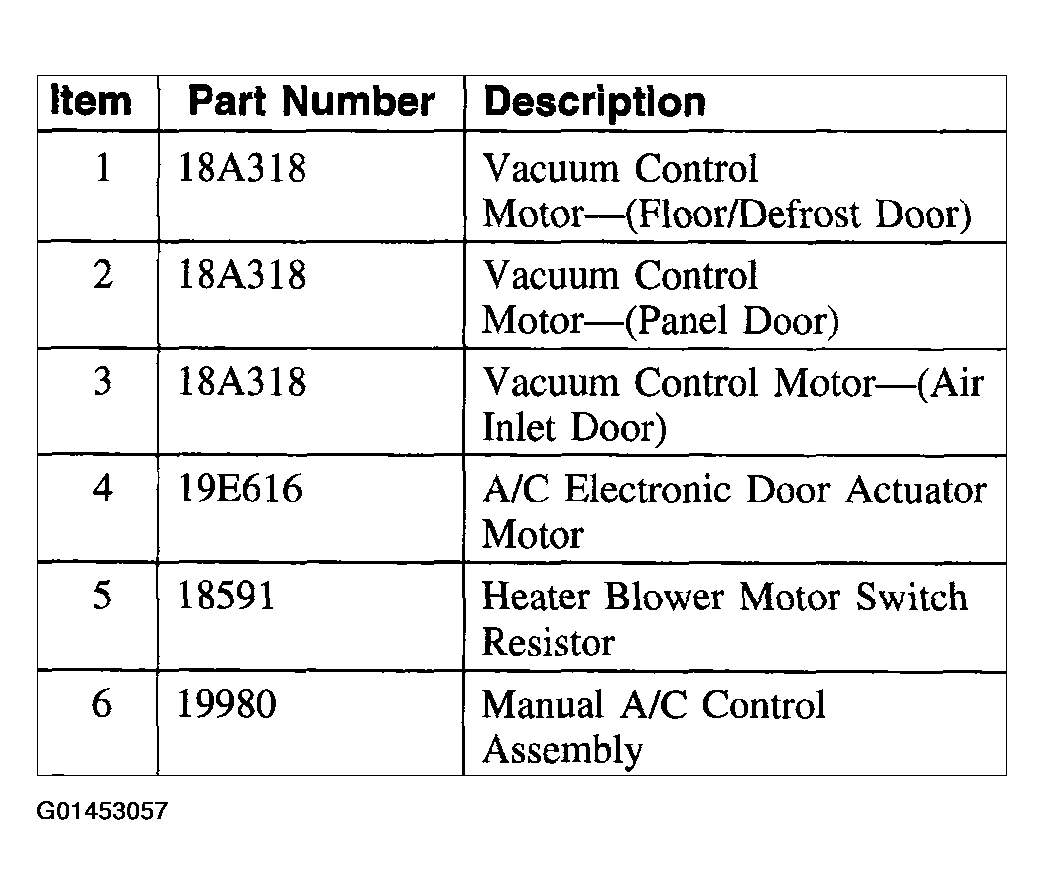

Fig 2: Locating Control Components (2 Of 2)

G01453057

Courtesy of FORD MOTOR CO.
