Pinpoint Test G: Speed Control Switch Is Inoperative - Off

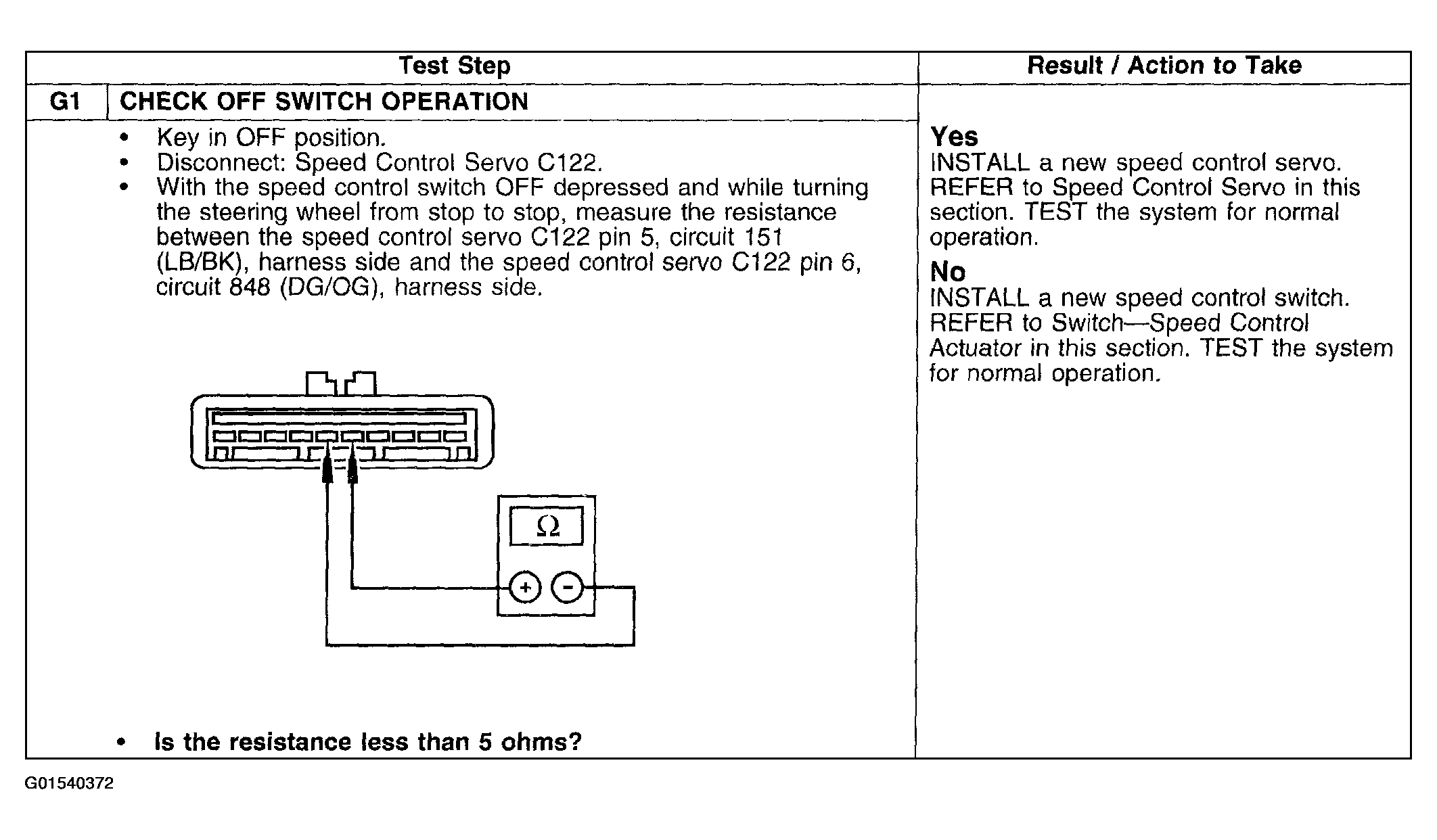

Fig 1: Pinpoint Test G: Speed Control Switch Is Inoperative - Off (G1)

G01540372

Courtesy of FORD MOTOR CO.
