Home >> Ford >> 2003 >> Cutaway 7.3 F >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control System - Vehicle Speed Control >> Diagnosis And Testing >> Speed Control >> Pinpoint Tests >> Pinpoint Test E: Speed Control Switch Is Inoperative - Set/Accel

Pinpoint Test E: Speed Control Switch Is Inoperative - Set/Accel

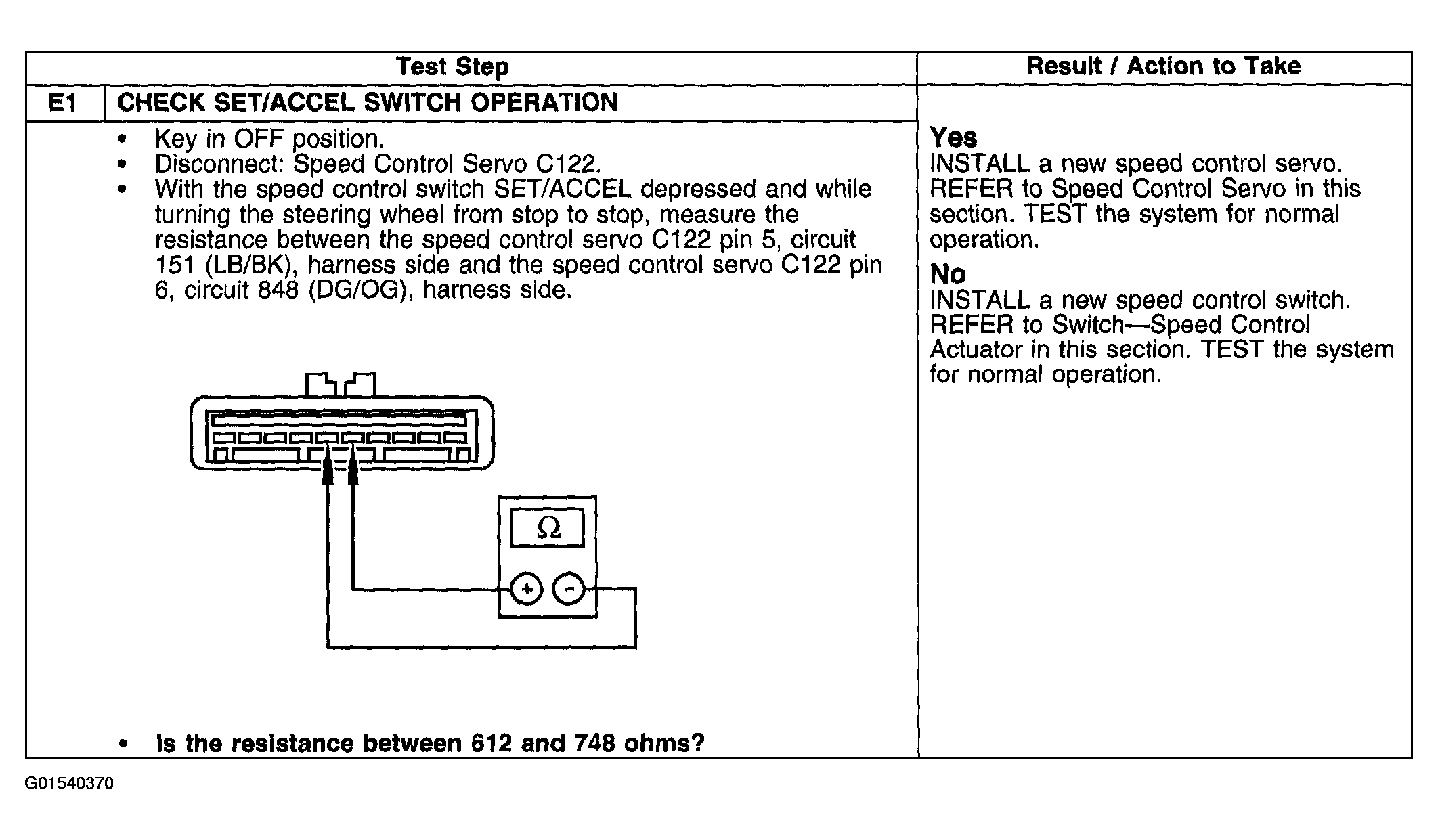

Fig 1: Pinpoint Test E: Speed Control Switch Is Inoperative - Set/Accel (E1)

G01540370

Courtesy of FORD MOTOR CO.
