Pinpoint Test A: Speed Control Is Inoperative

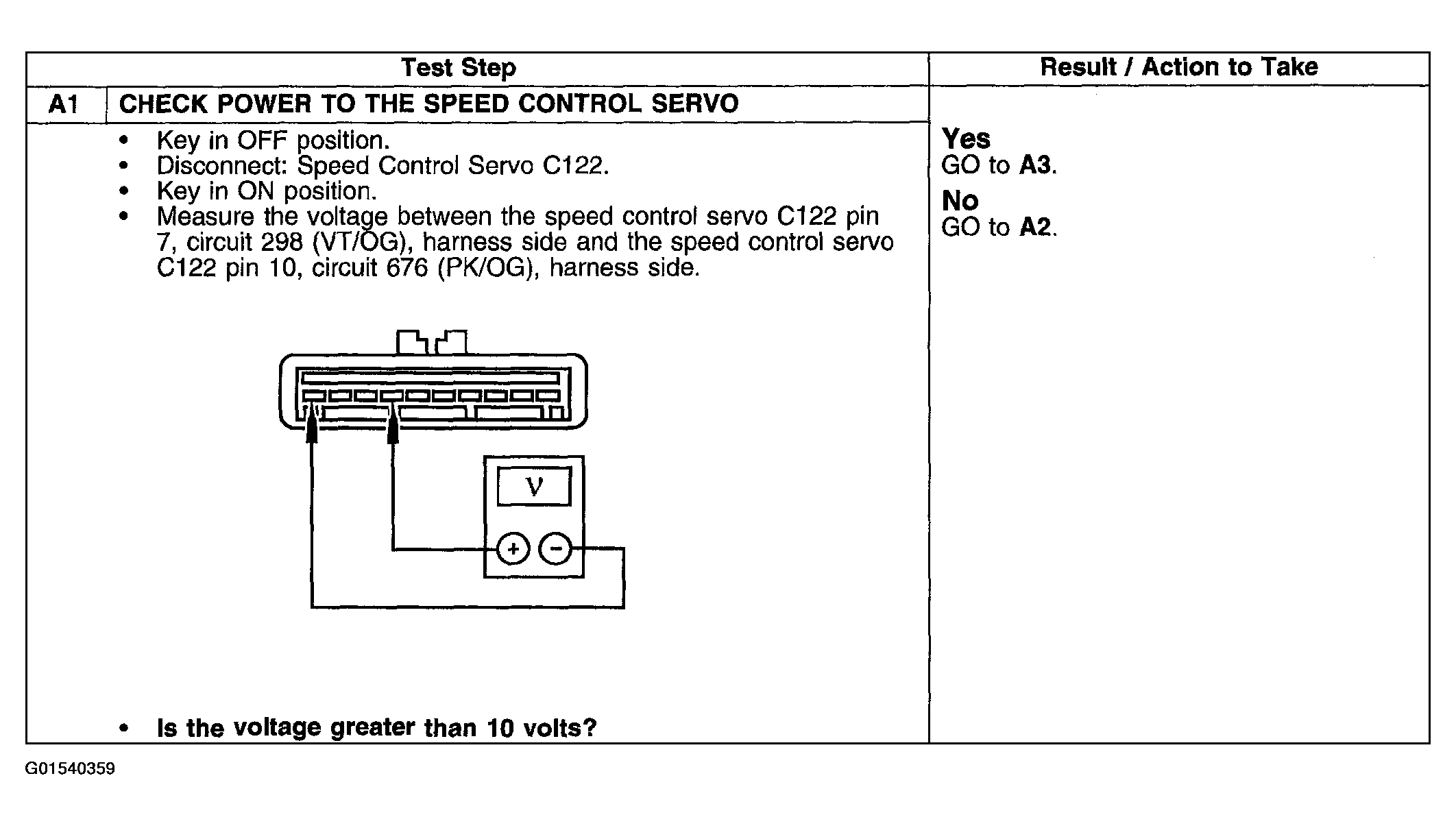

Fig 1: Pinpoint Test A: Speed Control Is Inoperative (A1)

Courtesy of FORD MOTOR CO.

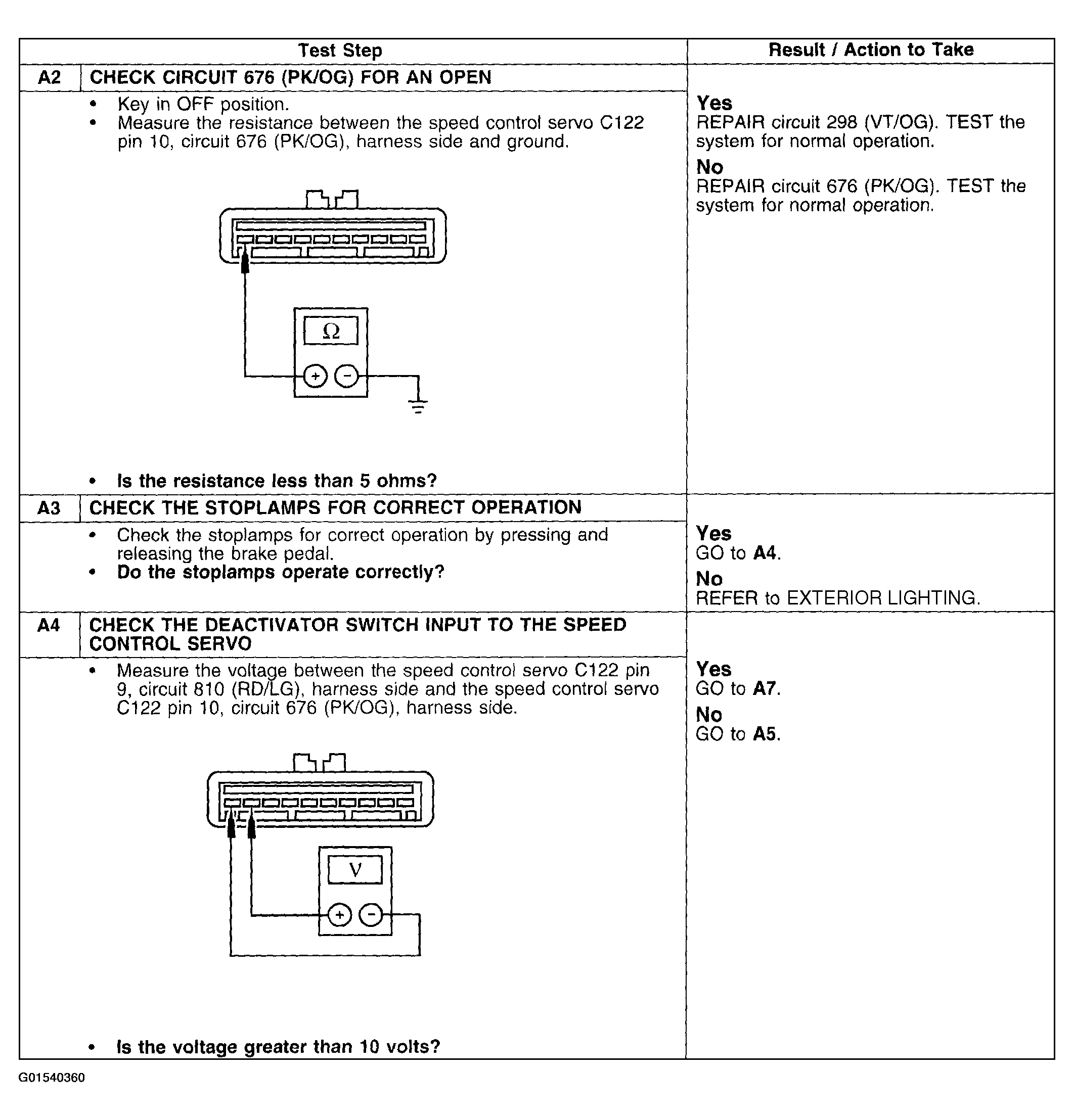

Fig 2: Pinpoint Test A: Speed Control Is Inoperative (A2-A4)

Courtesy of FORD MOTOR CO.

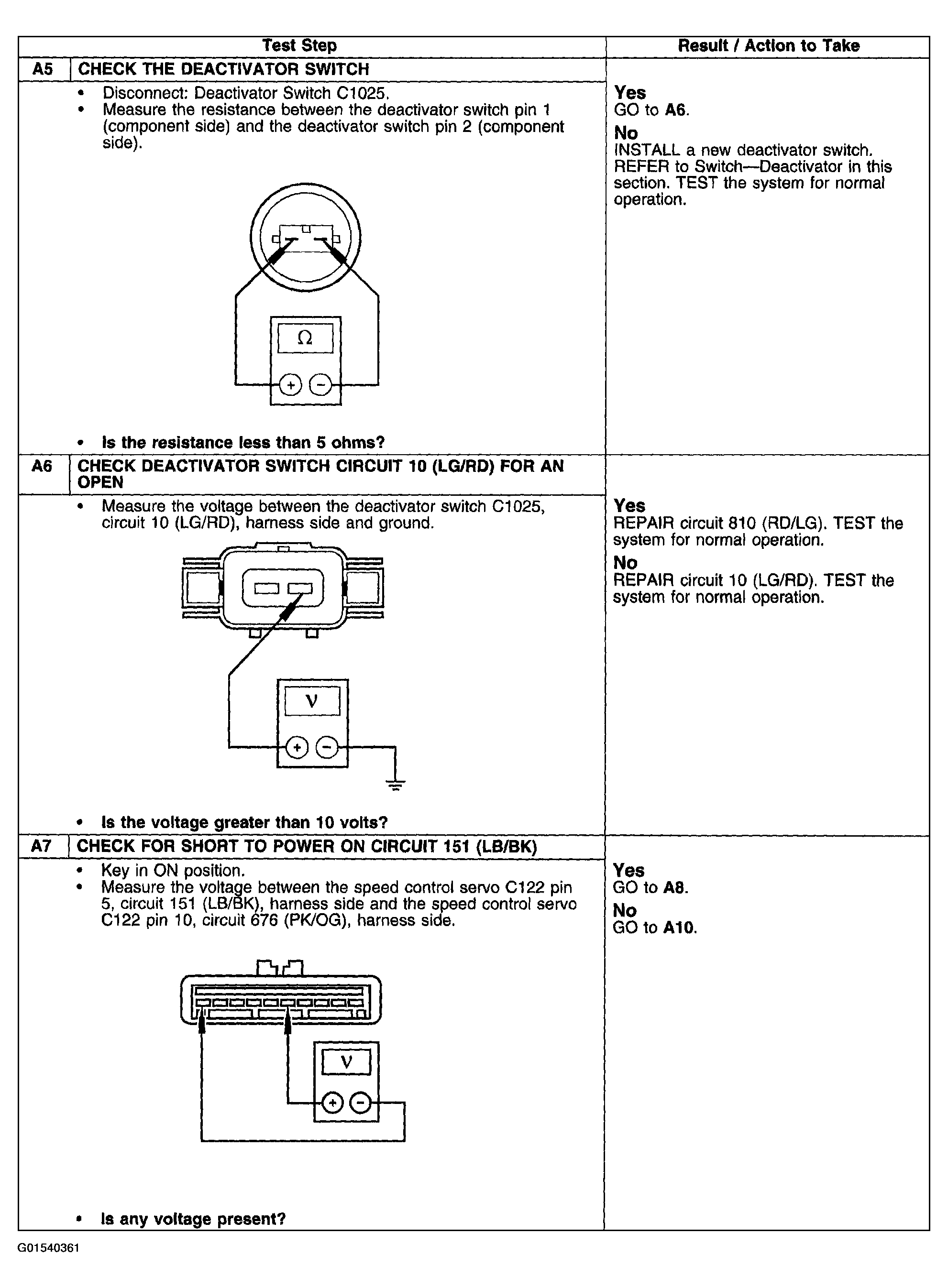

Fig 3: Pinpoint Test A: Speed Control Is Inoperative (A5-A7)

Courtesy of FORD MOTOR CO.

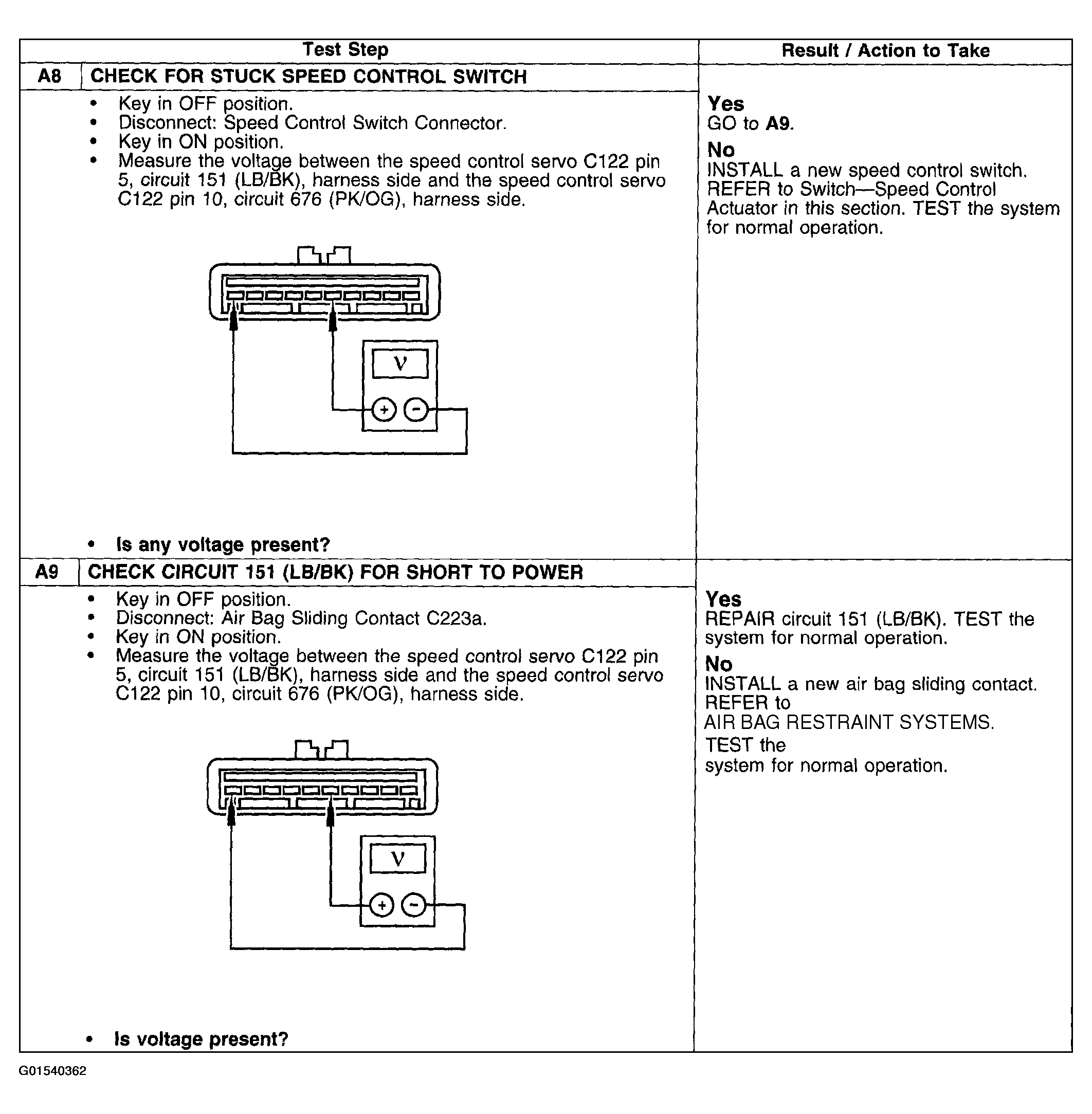

Fig 4: Pinpoint Test A: Speed Control Is Inoperative (A8-A9)

Courtesy of FORD MOTOR CO.

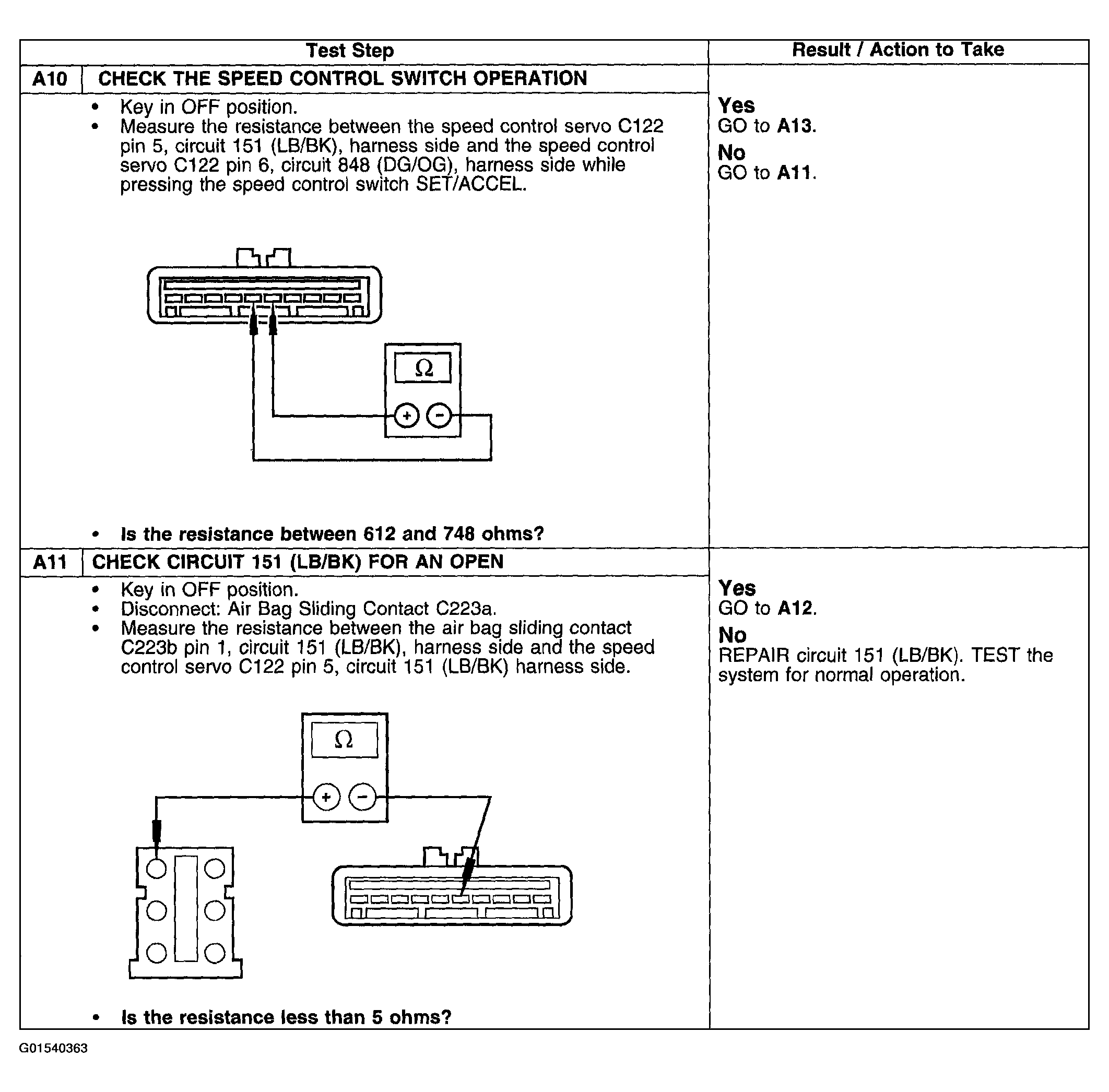

Fig 5: Pinpoint Test A: Speed Control Is Inoperative (A10-A11)

Courtesy of FORD MOTOR CO.

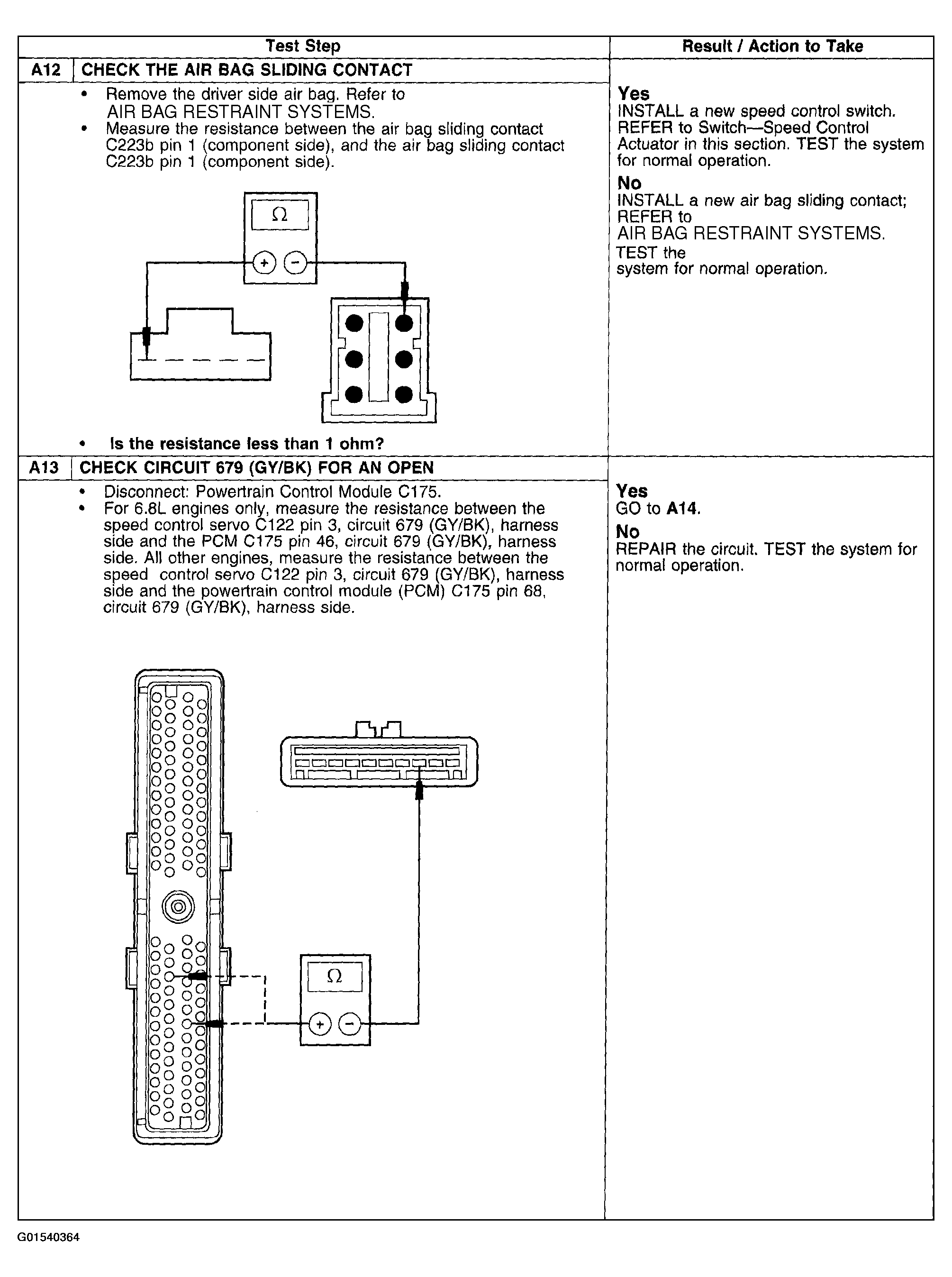

Fig 6: Pinpoint Test A: Speed Control Is Inoperative (A12-A13)

Courtesy of FORD MOTOR CO.

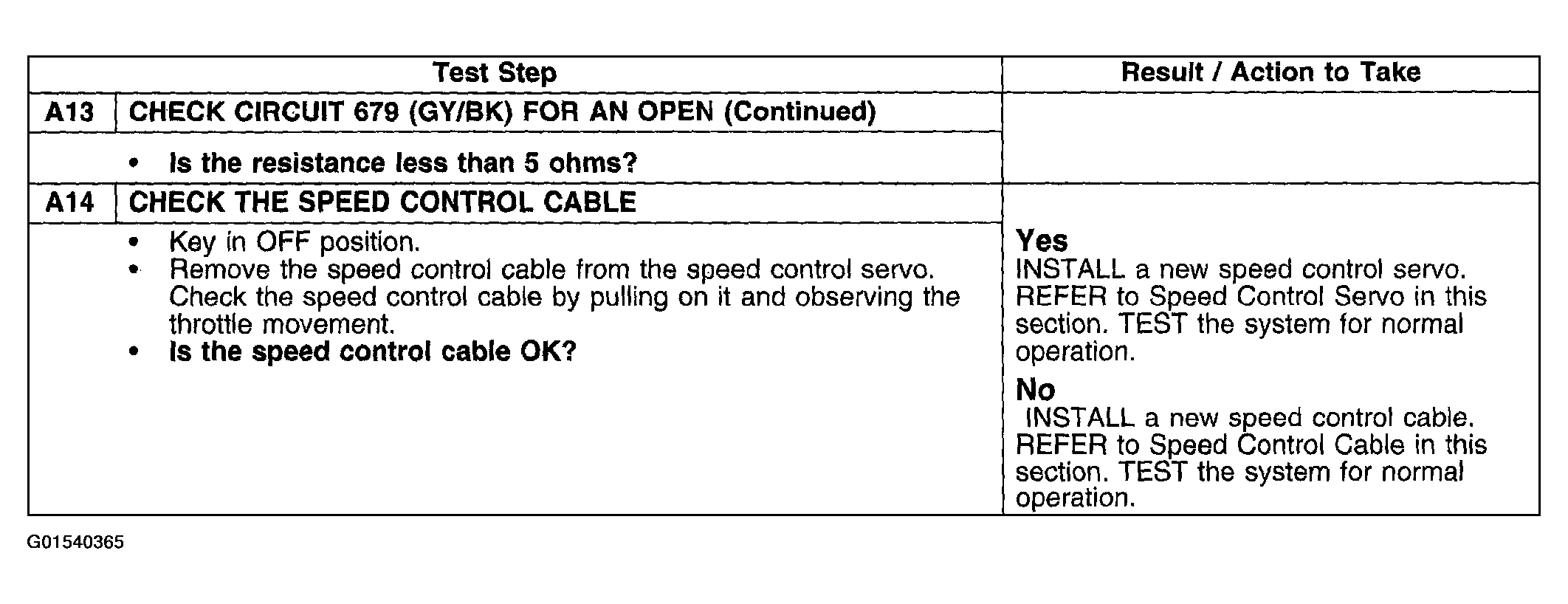

Fig 7: Pinpoint Test A: Speed Control Is Inoperative (A13 Cont.-A14)

Courtesy of FORD MOTOR CO.
