Removal and Installation

ALL VEHICLES

VEHICLES WITH 4.6L, 5.4L OR 6.8L ENGINES

NOTE: A new pin-type retainer must be installed.

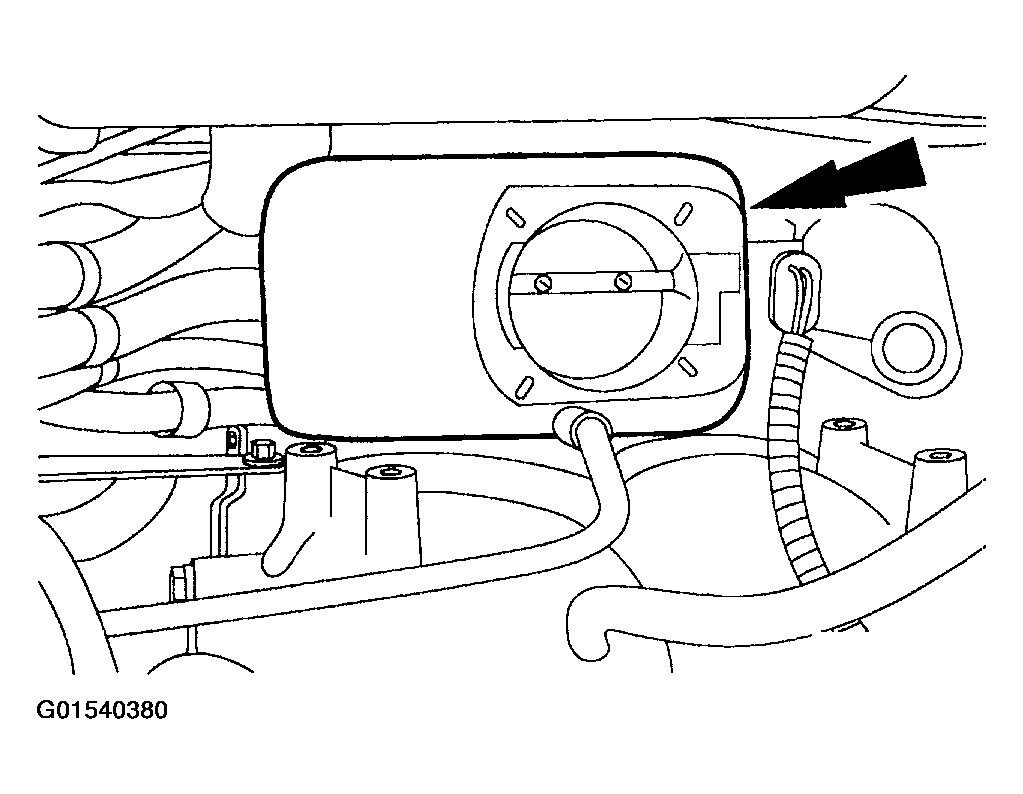

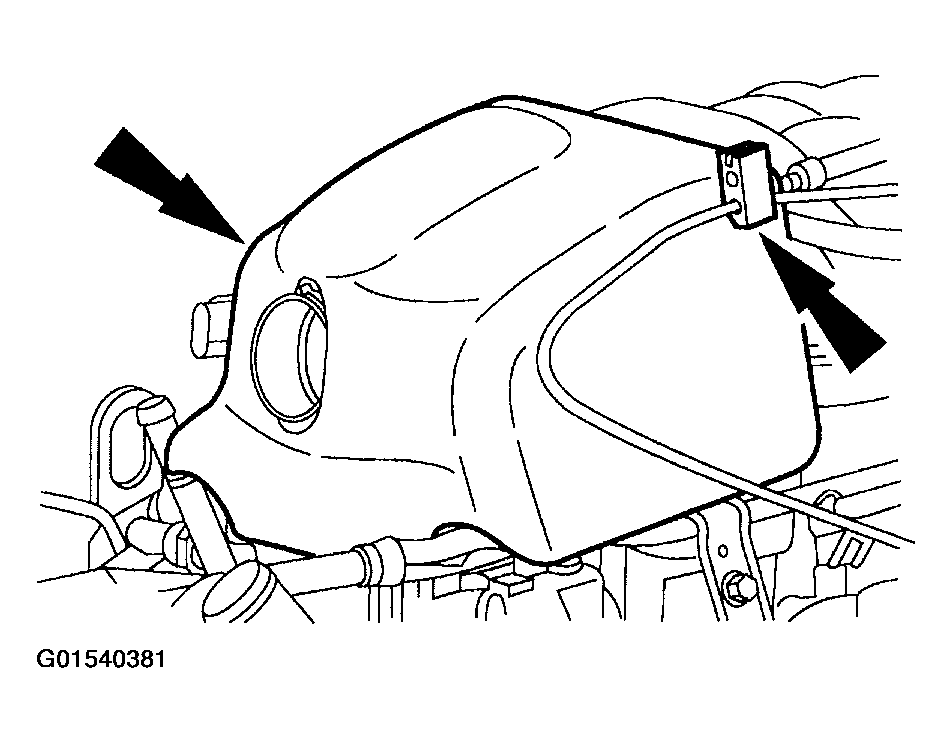

Fig 2: Removing Accelerator Control Splash Shield

Courtesy of FORD MOTOR CO.

Disconnect the pin-type retainer and remove the accelerator control splash shield.

ALL VEHICLES

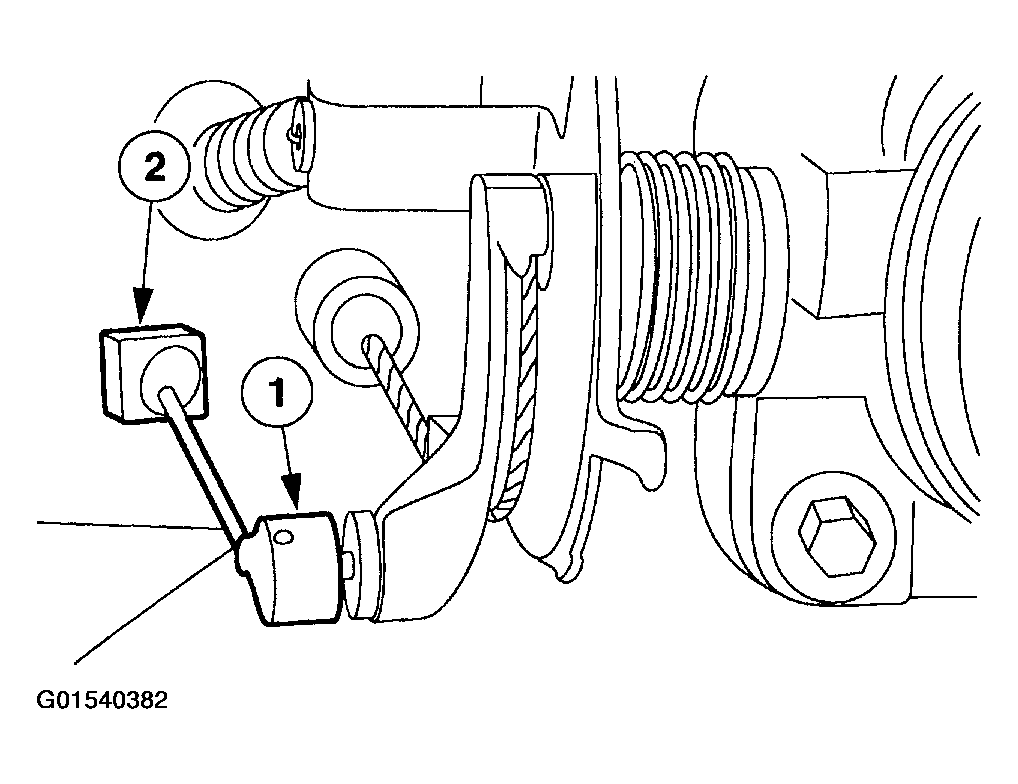

Disconnect the speed control cable.
1. Disconnect the speed control cable from the throttle body cam.
2. Squeeze the retaining tabs and remove the speed control cable.
Fig 3: Removing Speed Control Cable
Courtesy of FORD MOTOR CO.

VEHICLES WITH 5.4L AND 6.8L ENGINES

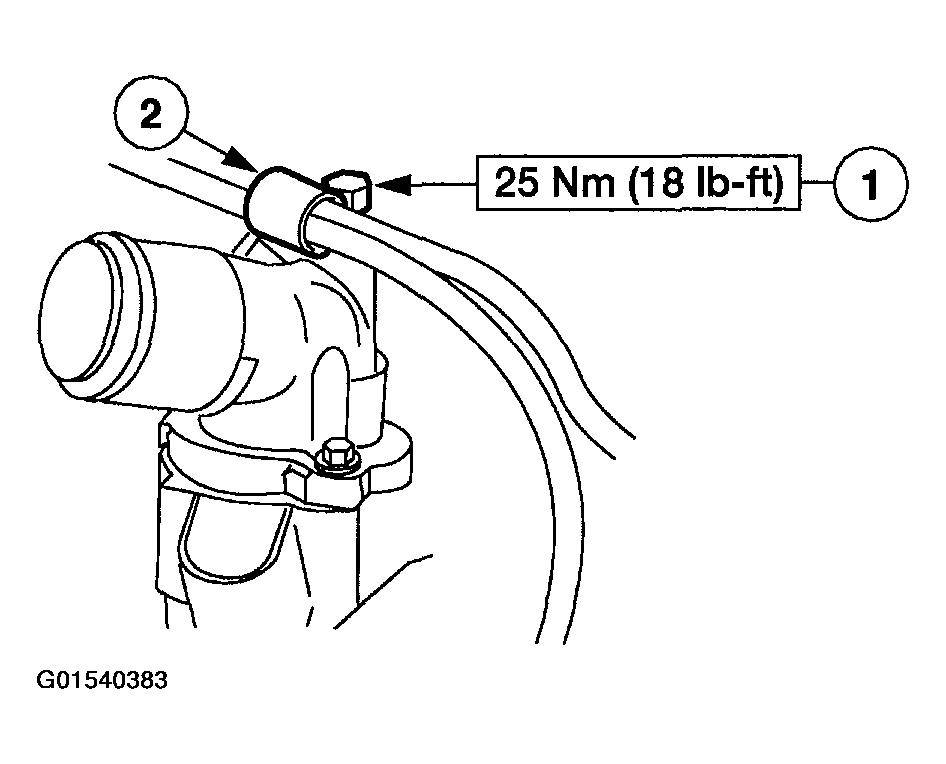

Remove the speed control cable bracket from the thermostat housing.
1. Remove the bolt.
2. Remove the speed control cable bracket.
Fig 4: Removing Speed Control Cable Bracket
Courtesy of FORD MOTOR CO.

ALL VEHICLES

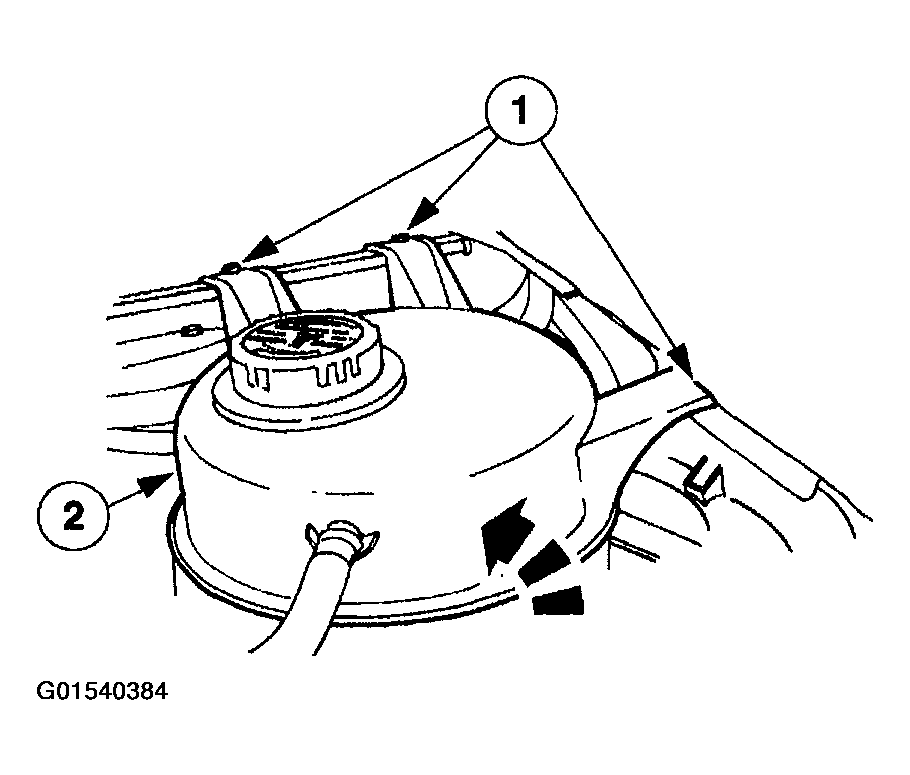

Position the radiator coolant recovery reservoir aside.
1. Remove the bolts.
2. Position the radiator coolant recovery reservoir aside.
Fig 5: Identifying Position Radiator Coolant Recovery Reservoir Aside
Courtesy of FORD MOTOR CO.

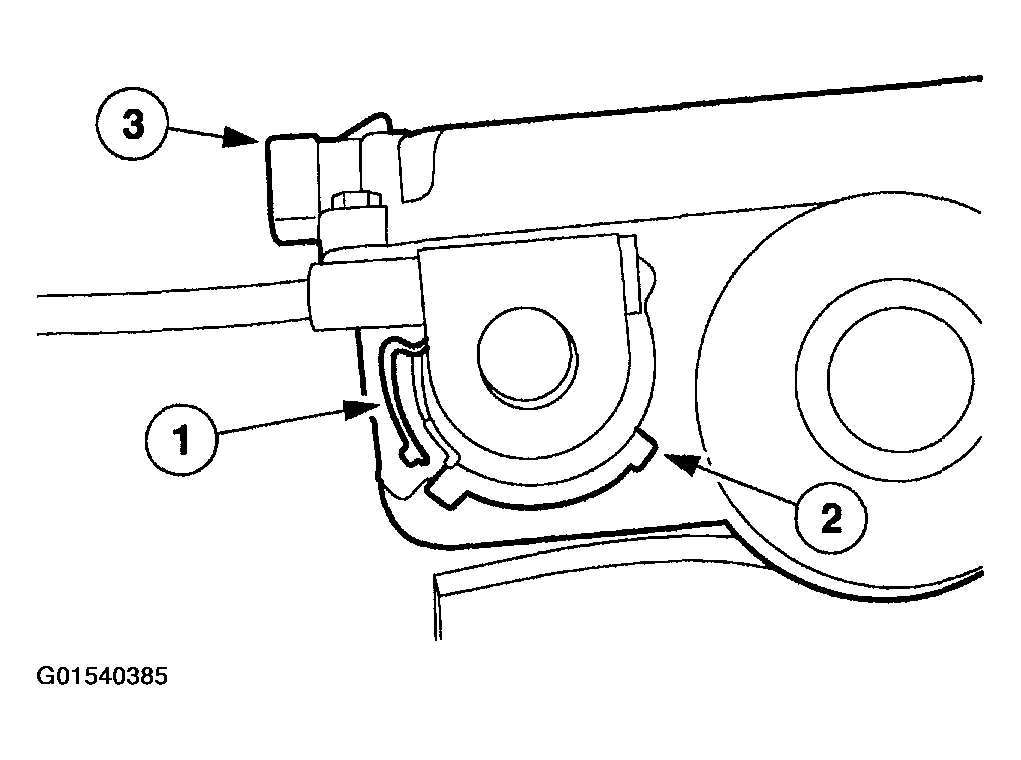

Remove the speed control cable.
1. Press the locking tab in.
2. Rotate the speed control cable cap and disconnect the speed control cable.
3. Remove the speed control cable.
Fig 6: Removing Speed Control Cable
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
