Driver And Passenger Heated Seat Module C3191/C3192

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

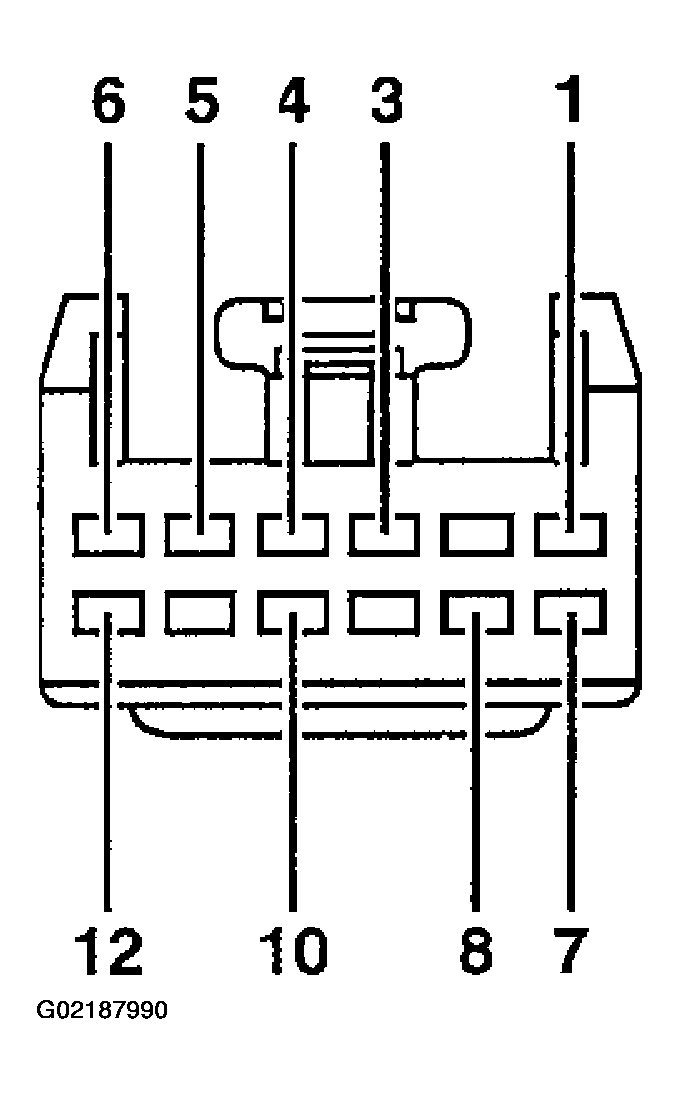

Fig 1: Identifying Driver And Passenger Heated Seat Module C3191/C3192 Connector Pinouts
G02187990Courtesy of FORD MOTOR CO.

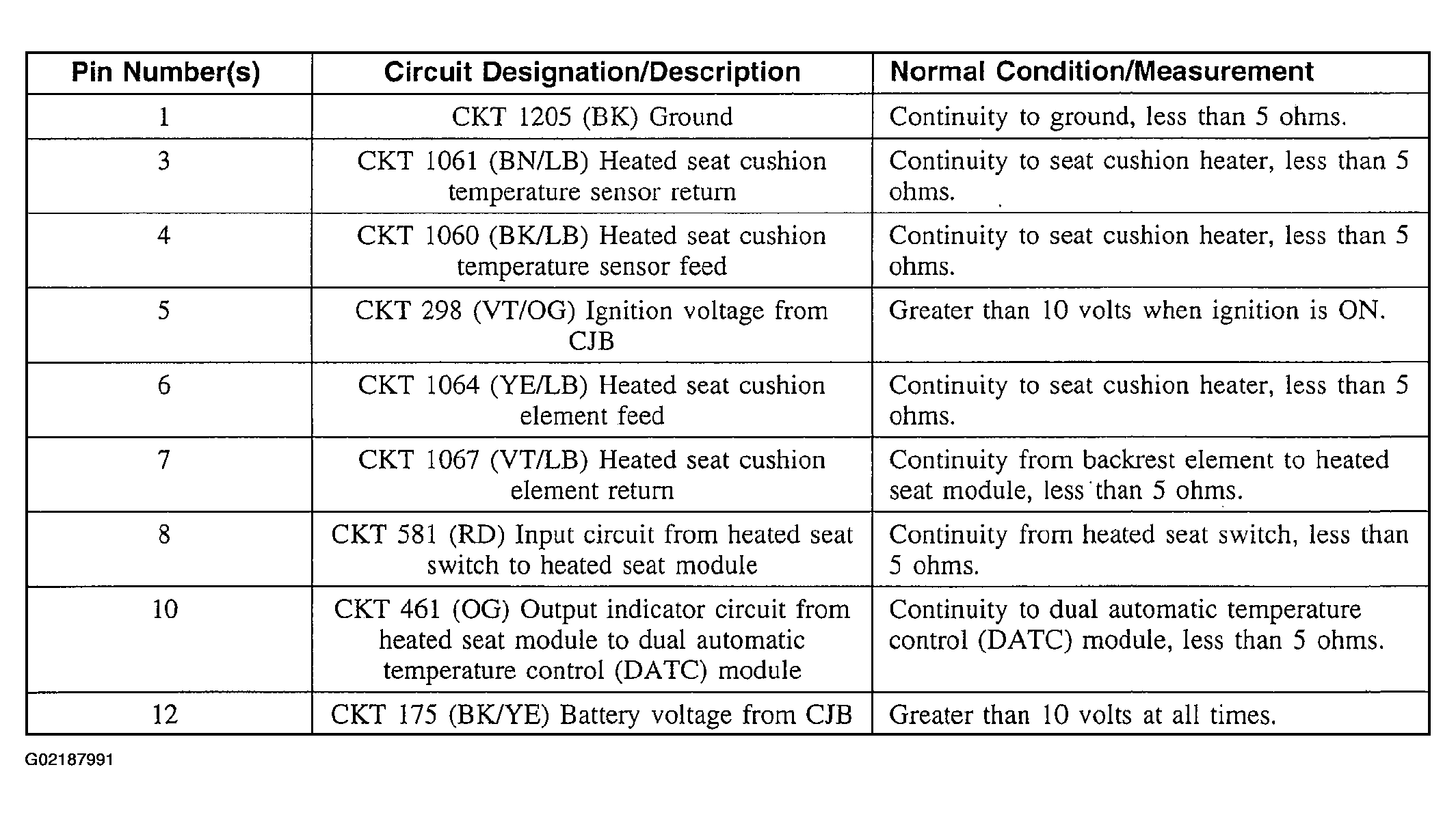

Fig 2: Driver And Passenger Heated Seat Module C3191/C3192 Connector Pins Reference Table
G02187991Courtesy of FORD MOTOR CO.
