Removal and Installation

Four-Door - Remove the child safety seat tether anchor.

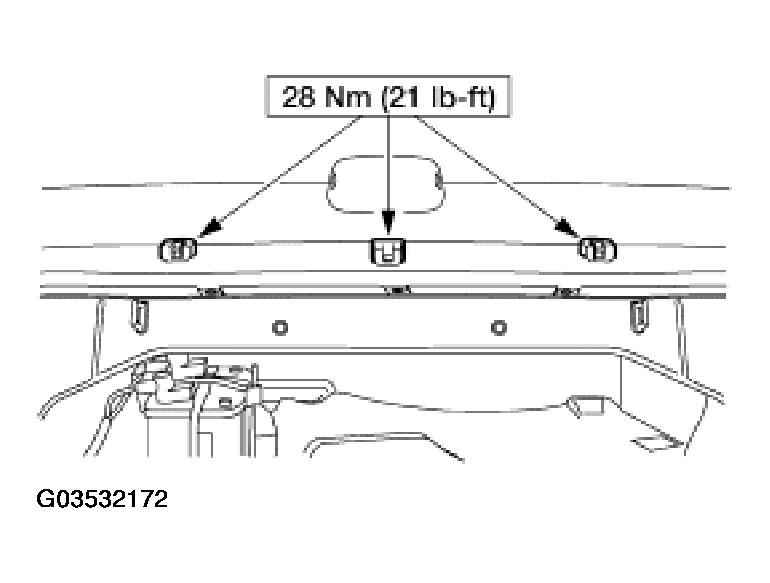

Fig 1: Removing Child Safety Seat Tether Anchor (Four Door)
Courtesy of FORD MOTOR CO.
Two-door - Remove the child safety seat tether anchor.

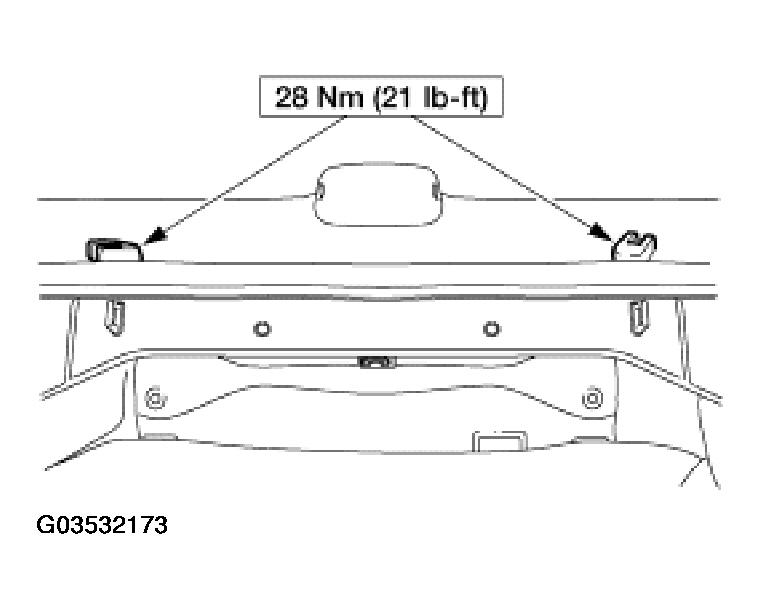

Fig 2: Removing Child Safety Seat Tether Anchor (Two Door)
Courtesy of FORD MOTOR CO.
All vehicles -
WARNING: It is important that the bolt/anchor be securely tightened to specification. Otherwise, the child's safety seat may not be properly secured and the child can be injured in case of a sudden stop or accident.

NOTE: Rework the sheet metal to its original condition and structural integrity.

NOTE: Replace the child safety seat tether anchor as necessary.

NOTE: Make sure to tighten the bolts to specification.

To install, reverse the removal procedure.
- See the removal procedure or Specifications for torque specifications.
Check the active restraint system for correct operation.
