Pinpoint Test G: DTCs C1148/C1234, C1158/C1233 - Front Brake Anti-Lock Sensor- Dynamic

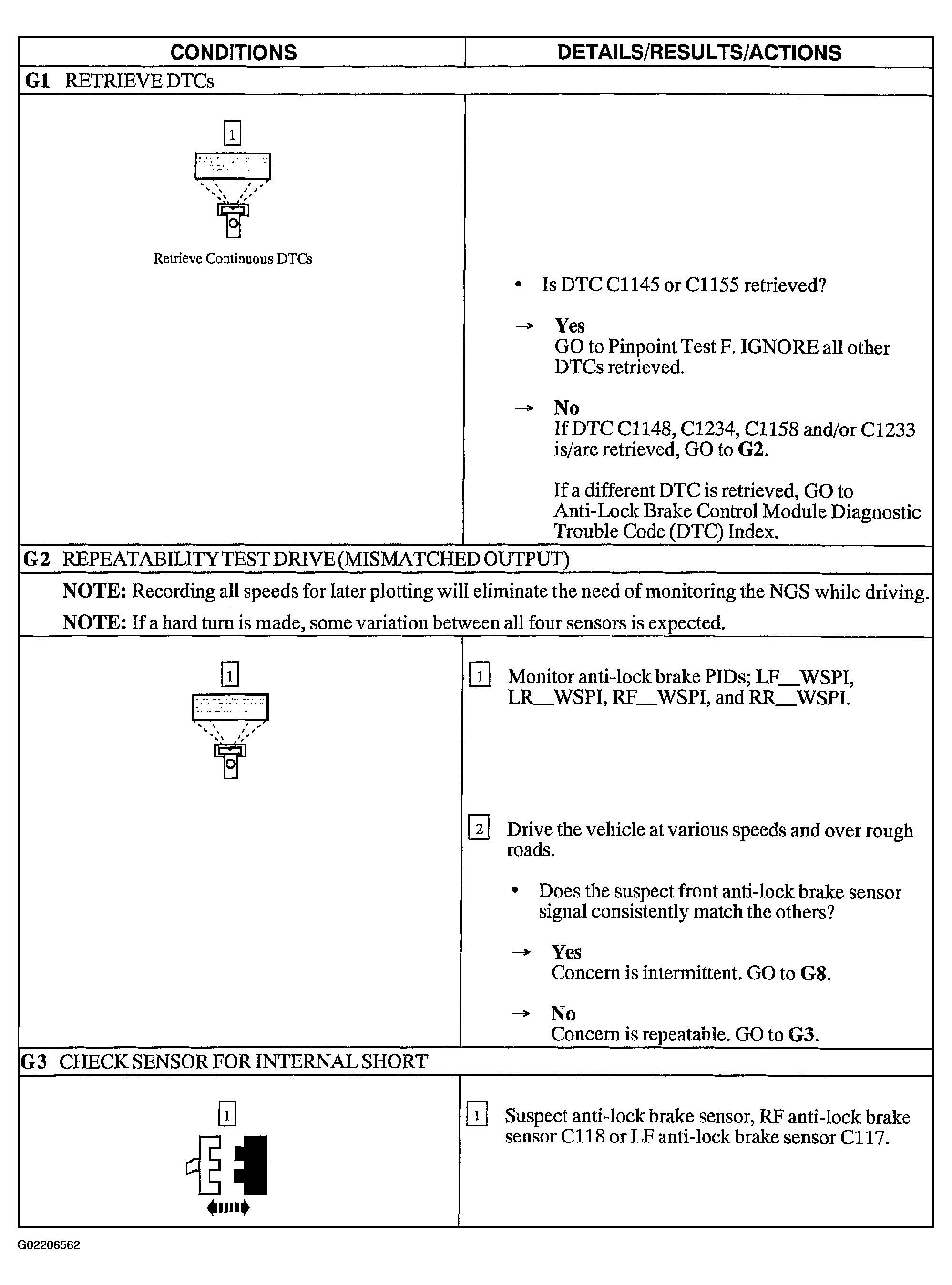

Fig 1: Pinpoint Test G: DTCs C1148/C1234, C1158/C1233 - Front Brake Anti-Lock Sensor - Dynamic (Steps G1-G3)

Courtesy of FORD MOTOR CO.

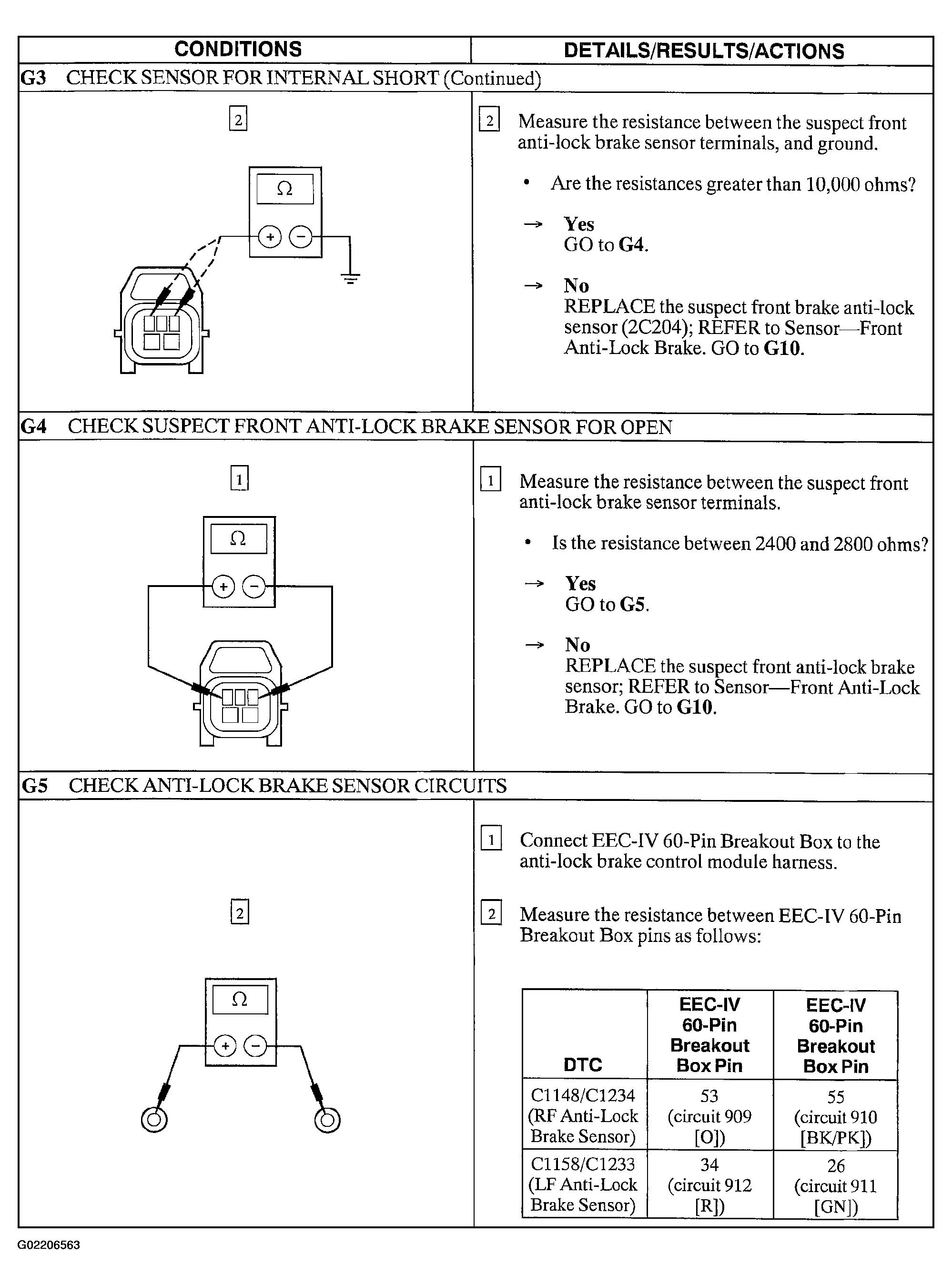

Fig 2: Pinpoint Test G: DTCs C1148/C1234, C1158/C1233 - Front Brake Anti-Lock Sensor - Dynamic (Steps G3 Cont-G5)

Courtesy of FORD MOTOR CO.

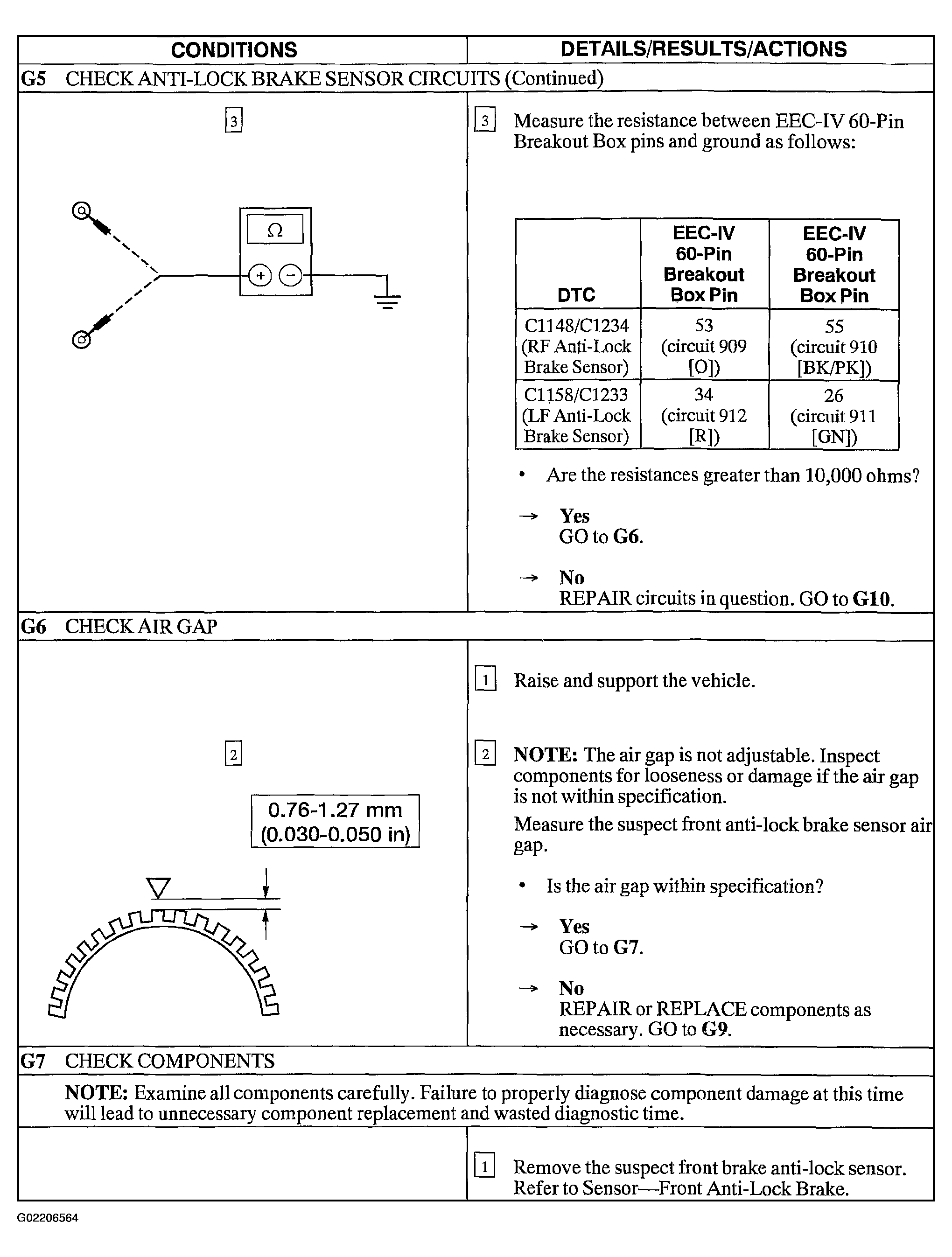

Fig 3: Pinpoint Test G: DTCs C1148/C1234, C1158/C1233 - Front Brake Anti-Lock Sensor - Dynamic (Steps G5 Cont-G7)

Courtesy of FORD MOTOR CO.

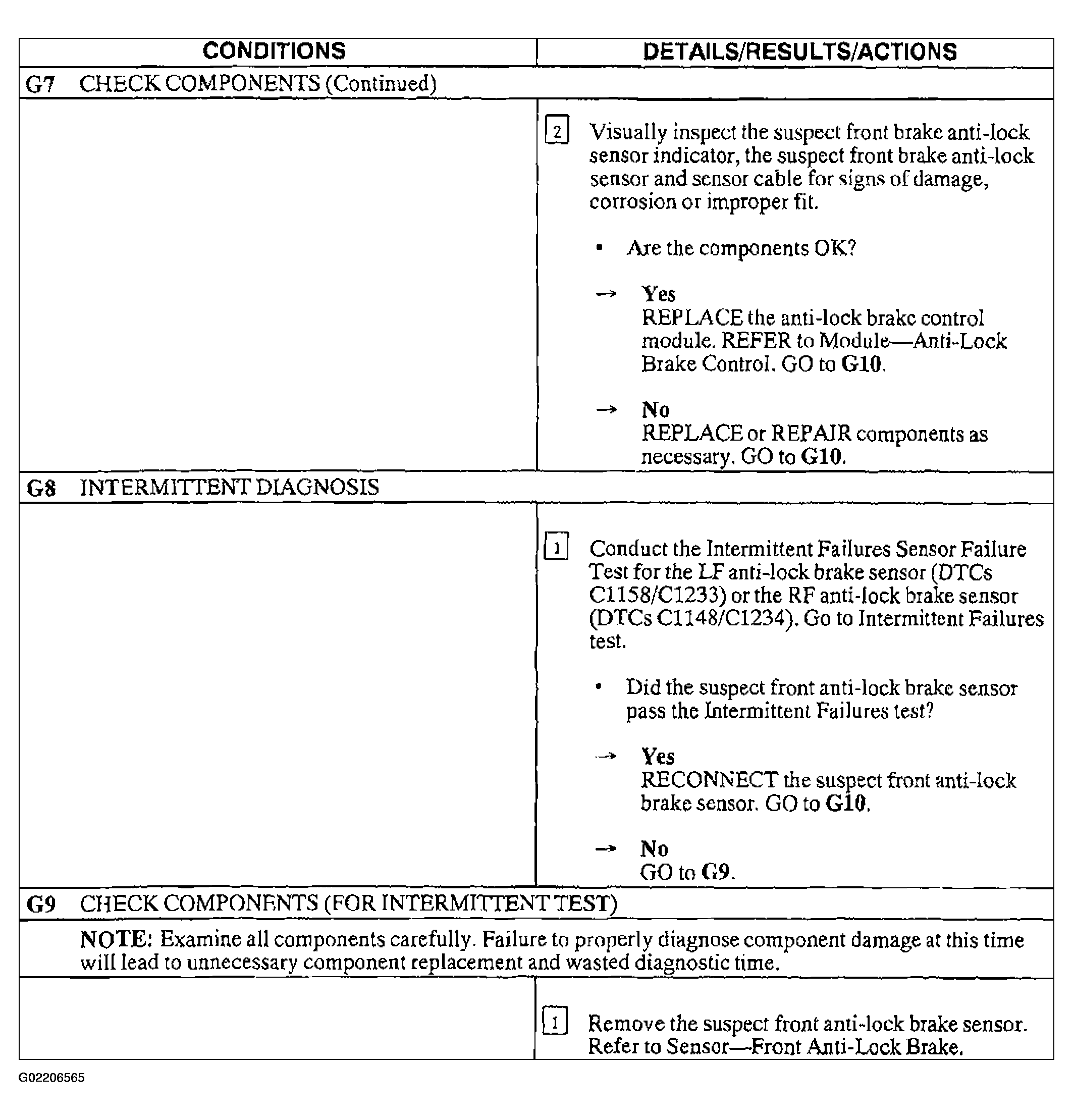

Fig 4: Pinpoint Test G: DTCs C1148/C1234, C1158/C1233 - Front Brake Anti-Lock Sensor - Dynamic (Steps G7 Cont-G9)

Courtesy of FORD MOTOR CO.

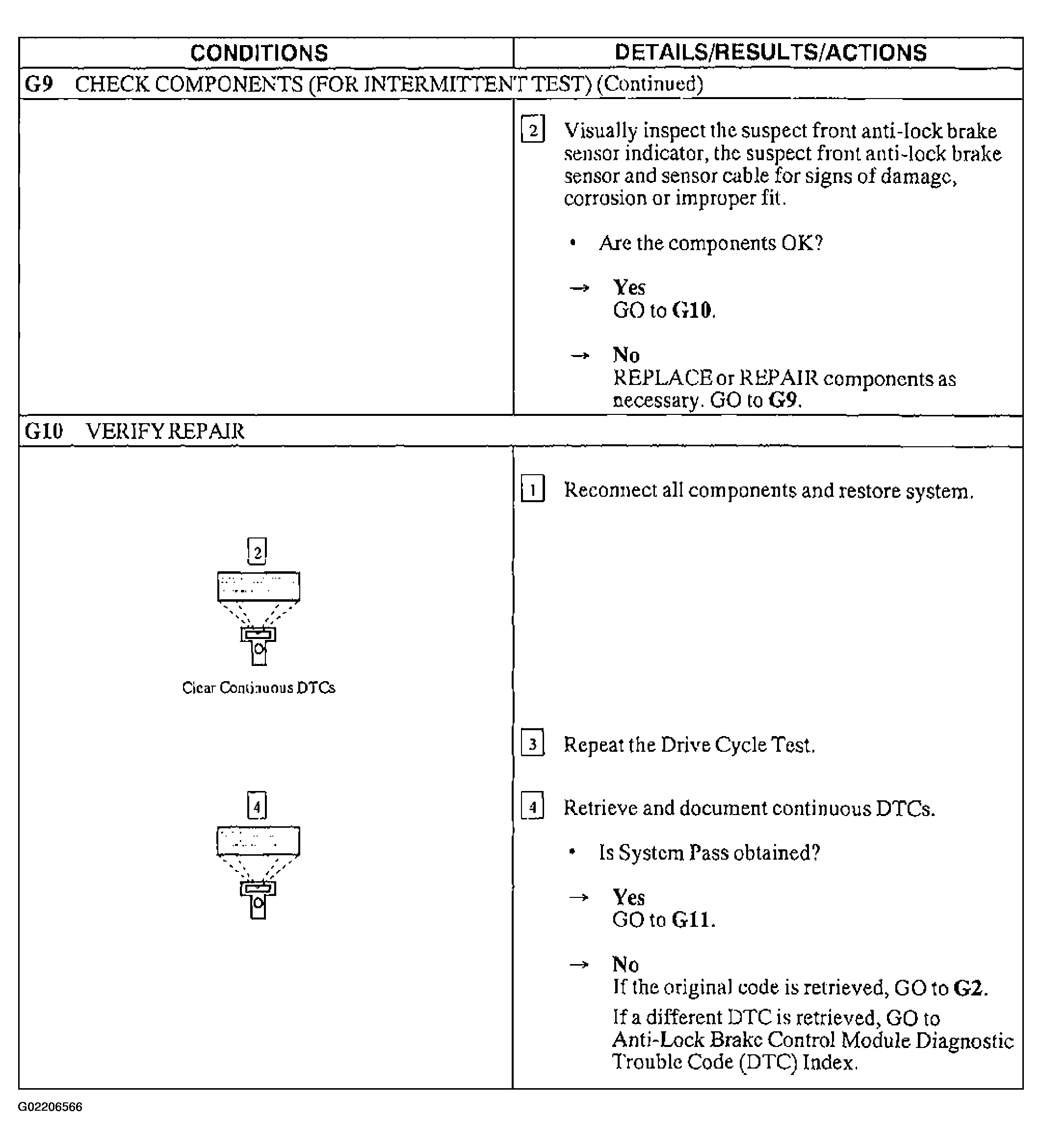

Fig 5: Pinpoint Test G: DTCs C1148/C1234, C1158/C1233 - Front Brake Anti-Lock Sensor - Dynamic (Steps G9 Cont-G10)

Courtesy of FORD MOTOR CO.

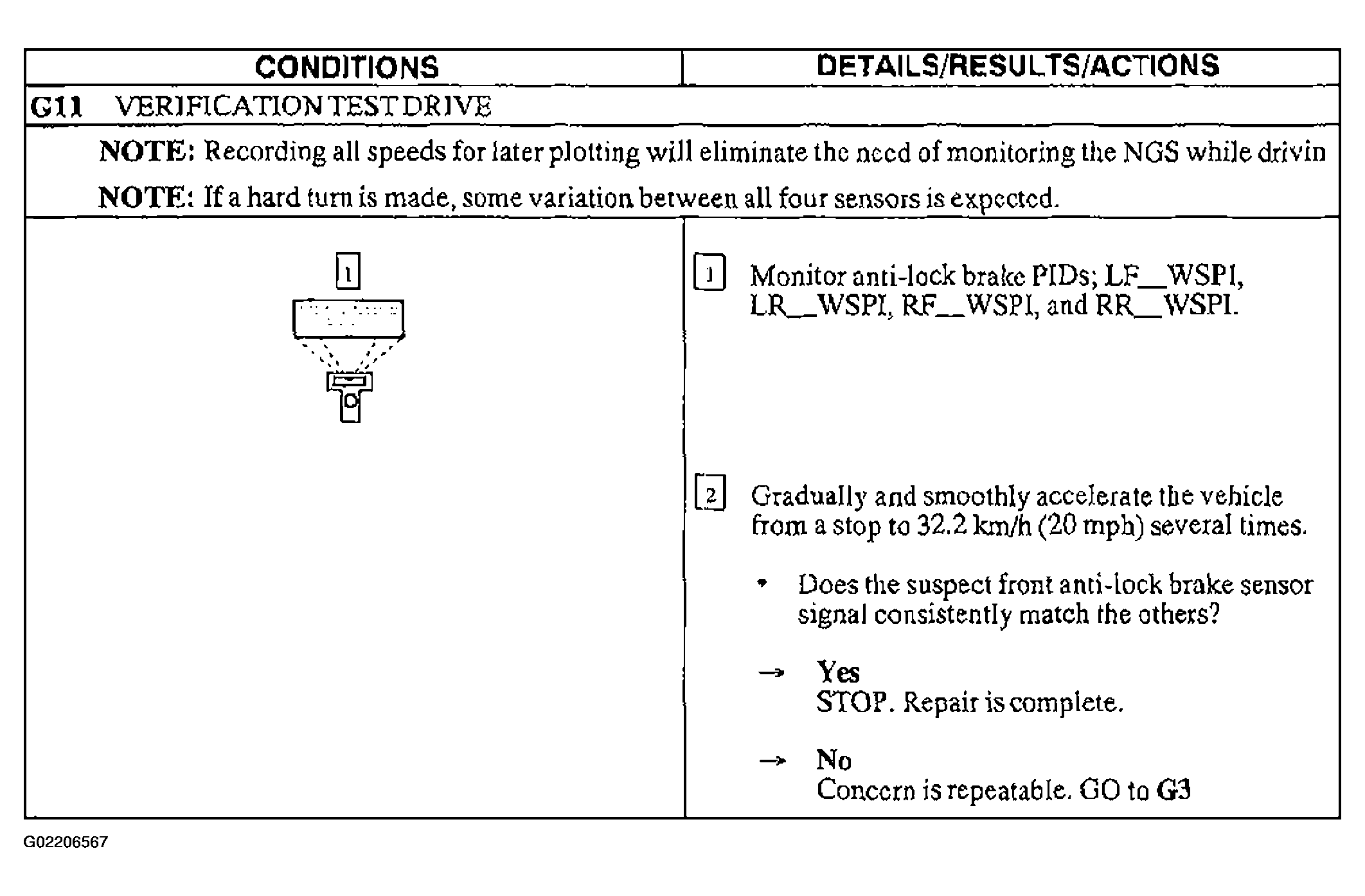

Fig 6: Pinpoint Test G: DTCs C1148/C1234, C1158/C1233 - Front Brake Anti-Lock Sensor - Dynamic (Step G11)

Courtesy of FORD MOTOR CO.
