Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For diagnostic procedure, see Fig 1-Fig 9 .

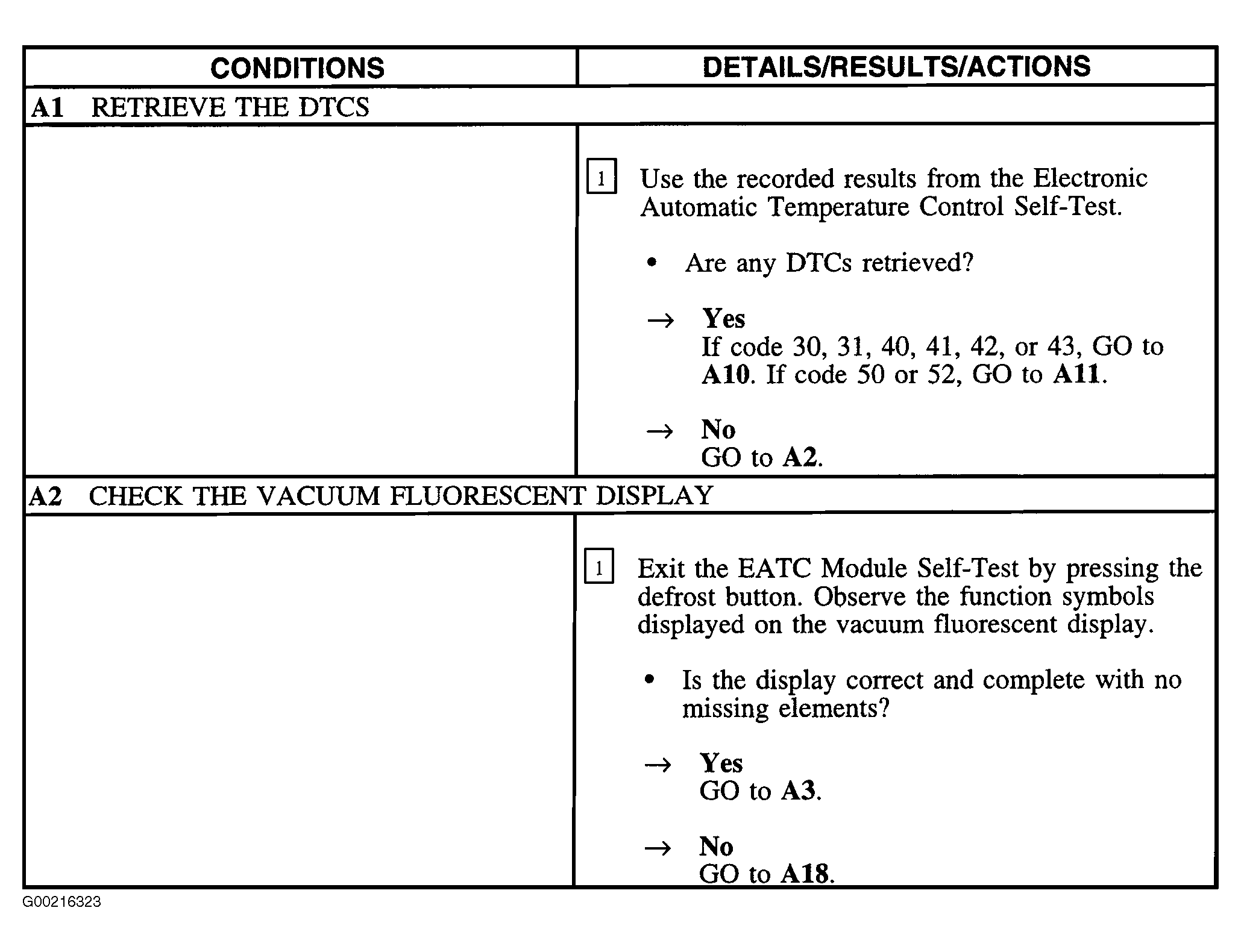

Fig 1: Test A (Steps A1-A2)

Courtesy of FORD MOTOR CO.

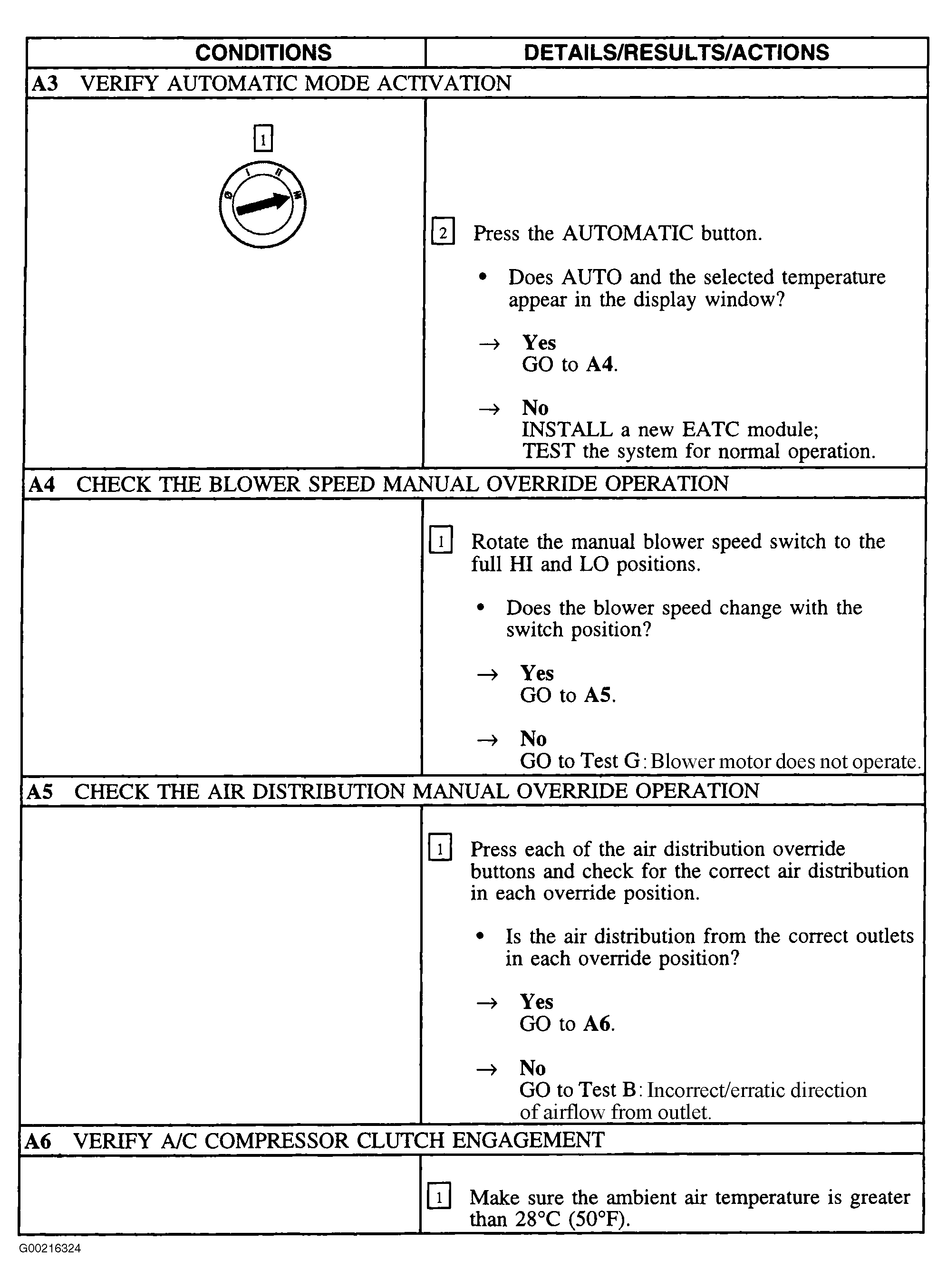

Fig 2: Test A (Steps A3-A6)

Courtesy of FORD MOTOR CO.

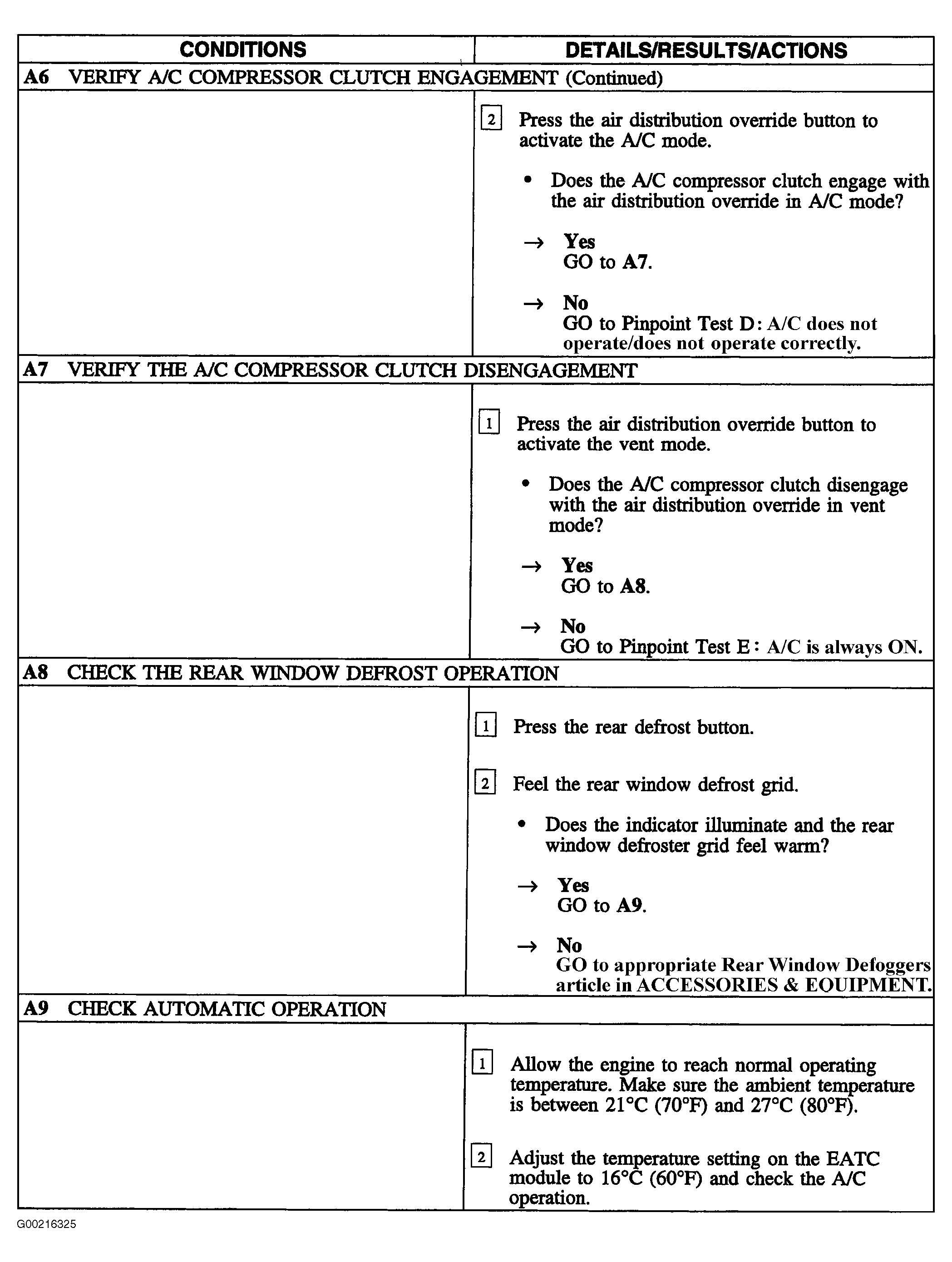

Fig 3: Test A Steps A6 Cont.-A9)

Courtesy of FORD MOTOR CO.

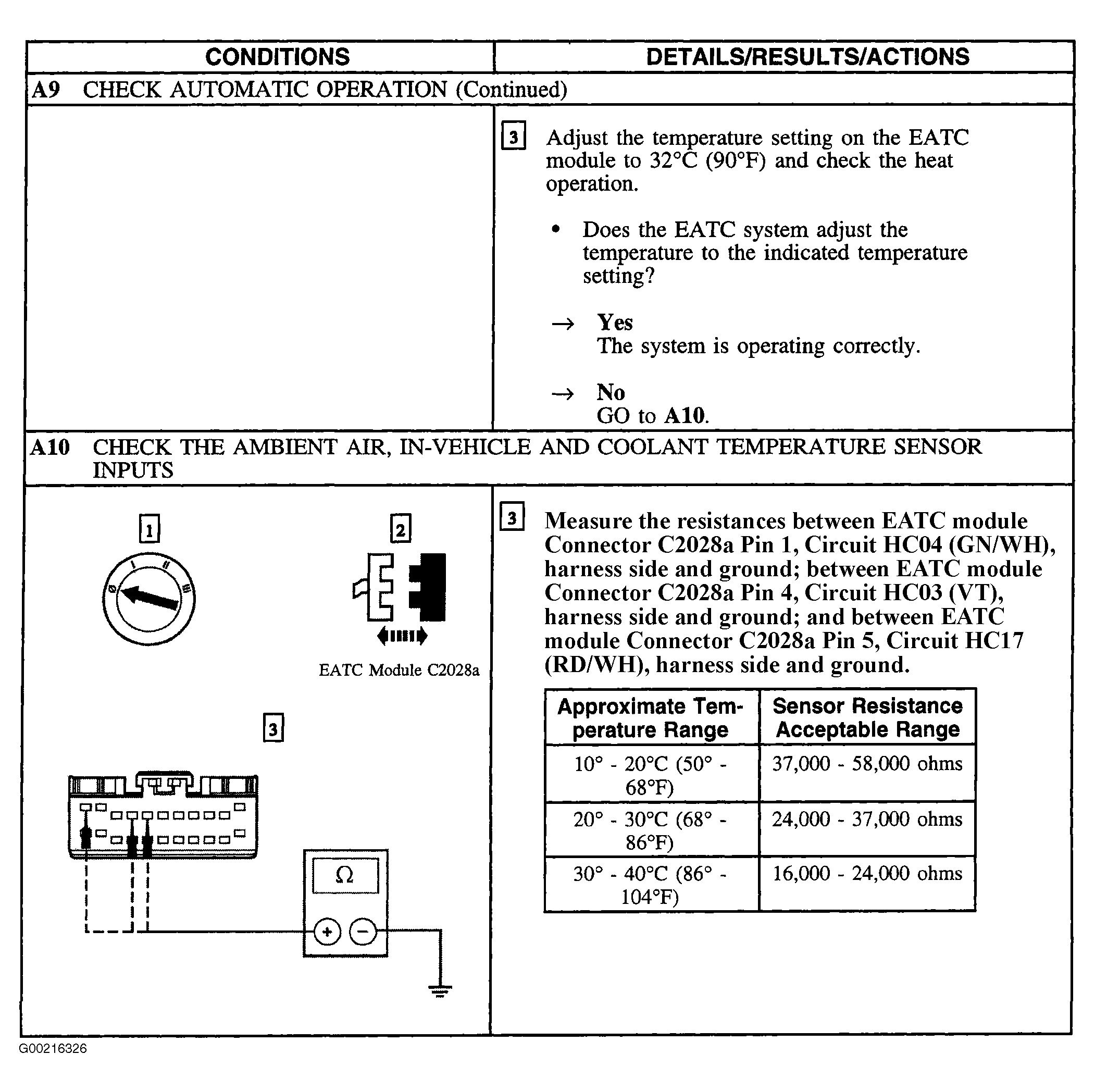

Fig 4: Test A (Steps A9 Cont.-A10)

Courtesy of FORD MOTOR CO.

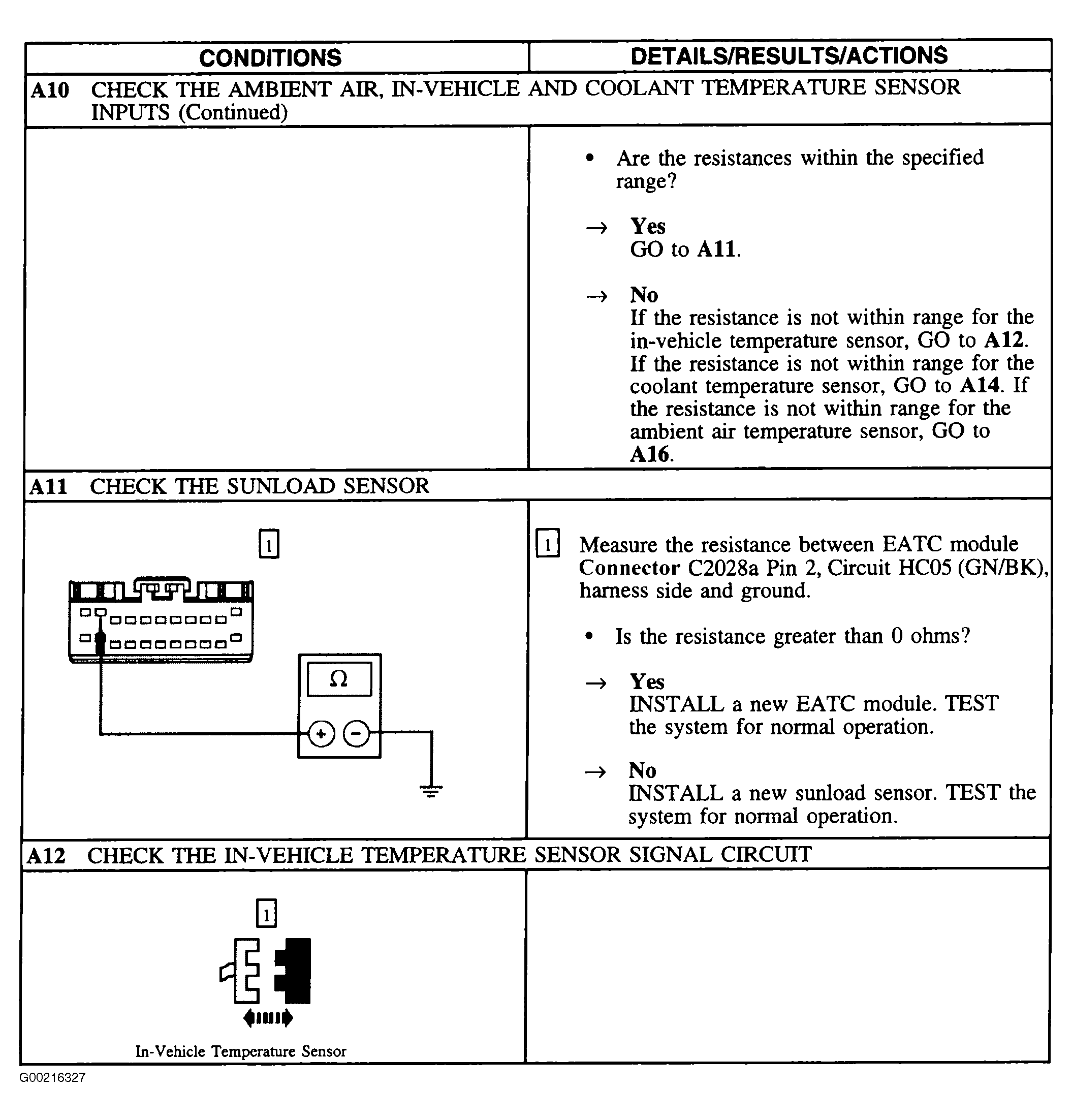

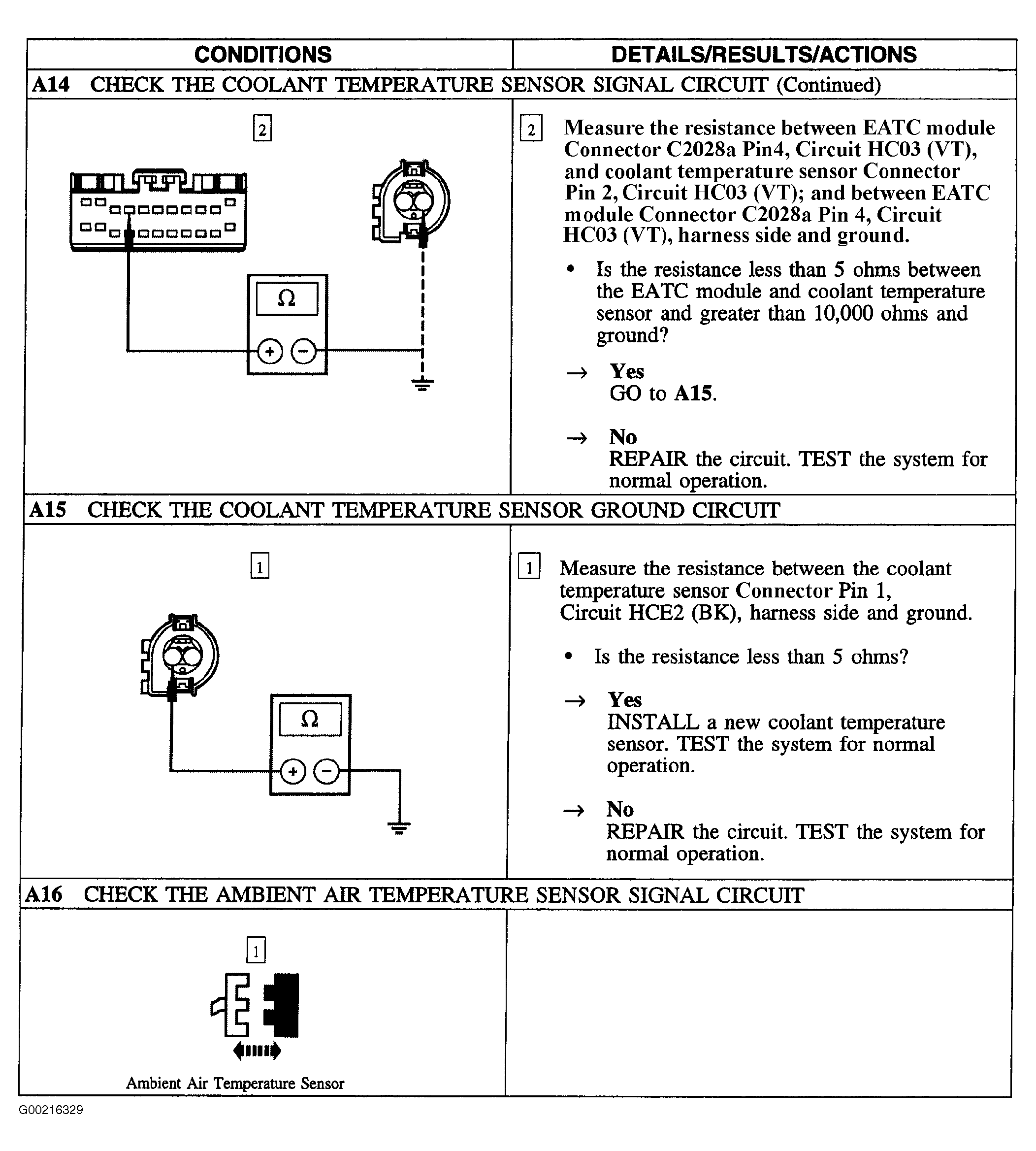

Fig 5: Test A (Steps A10 Cont.-A12)

Courtesy of FORD MOTOR CO.

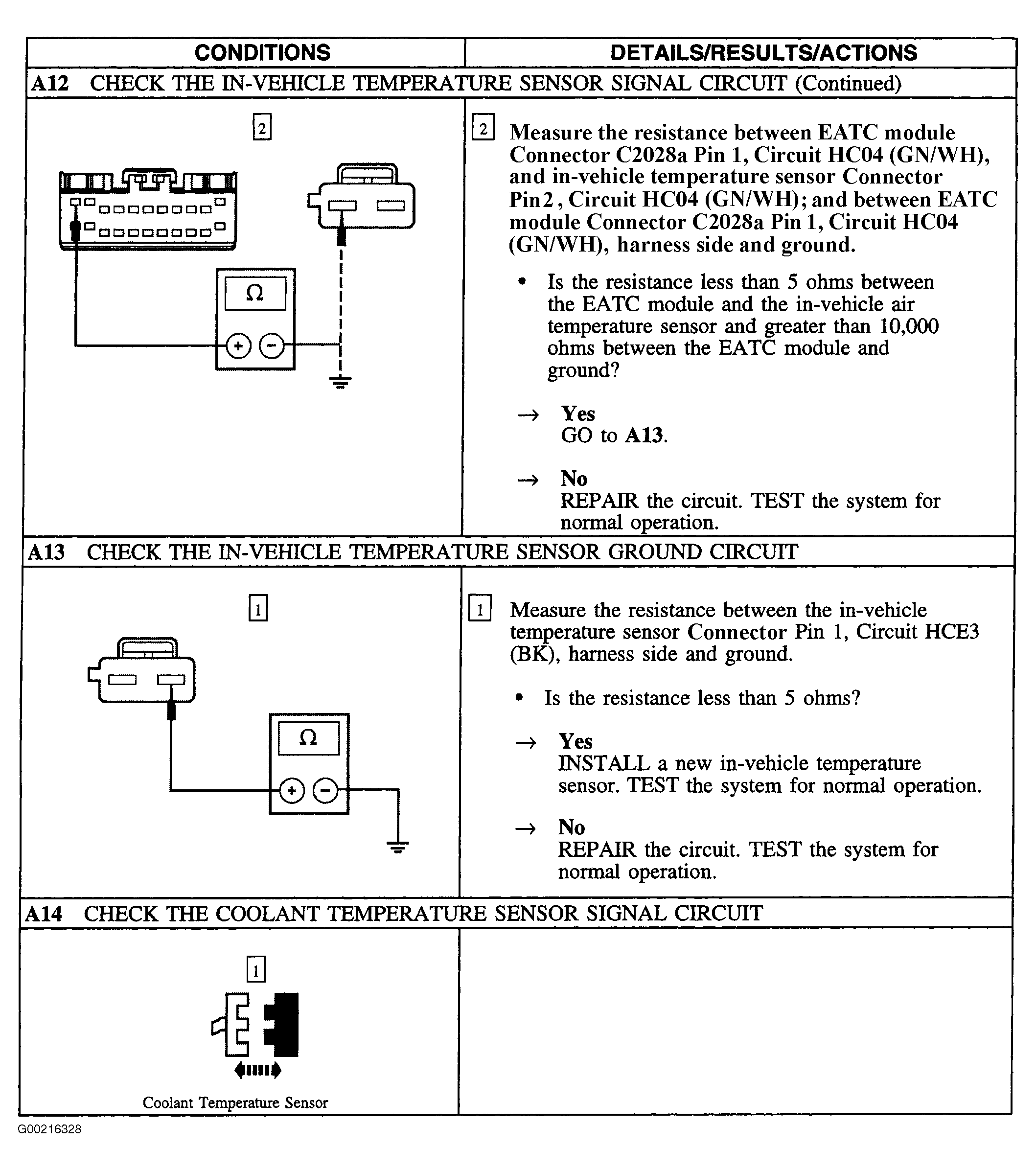

Fig 6: Test A (Steps A12 Cont.-A14)

Courtesy of FORD MOTOR CO.

Fig 7: Test A (Steps A14 Cont.-A16)

Courtesy of FORD MOTOR CO.

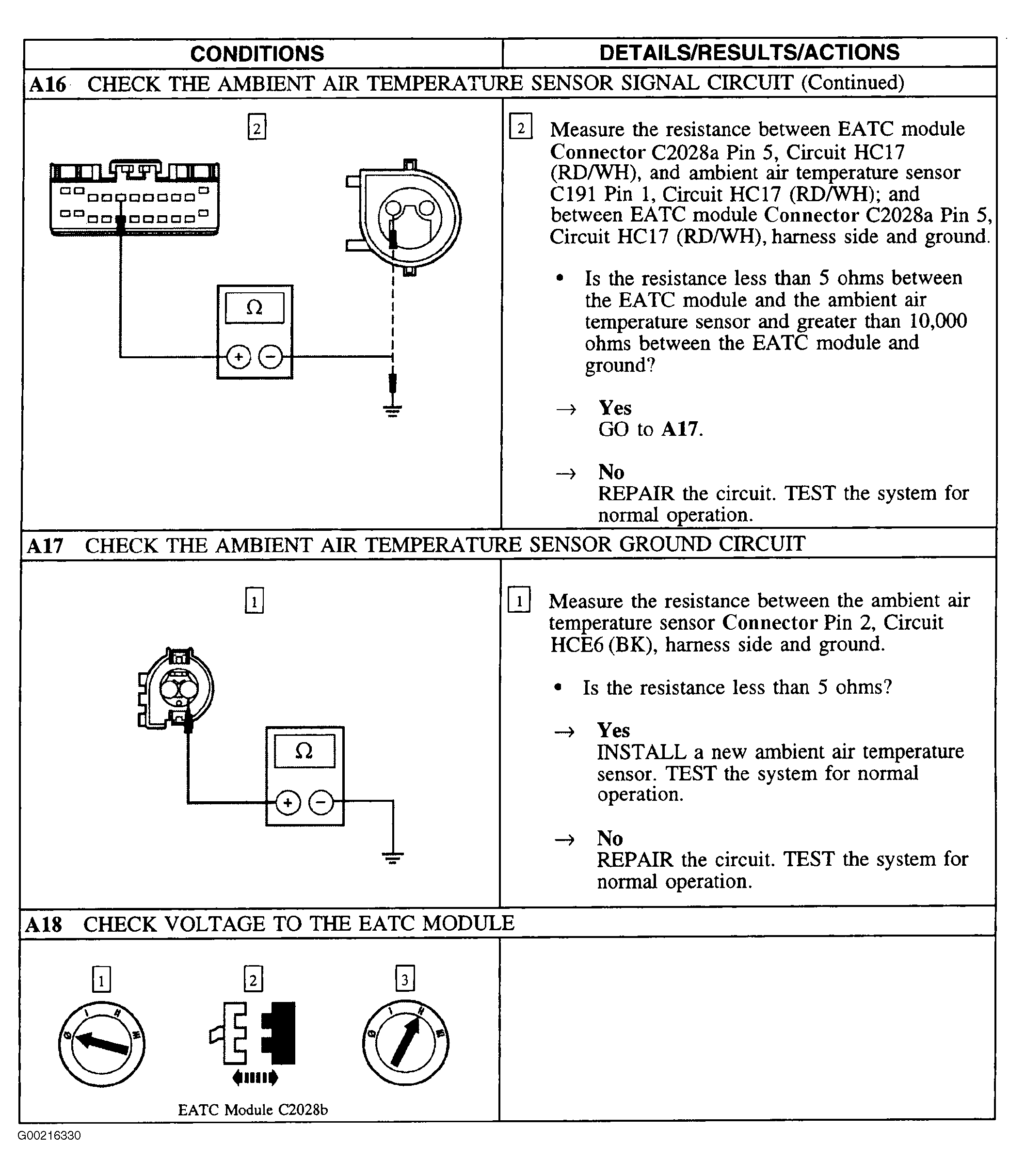

Fig 8: Test A (Steps A16 Cont.-A18)

Courtesy of FORD MOTOR CO.

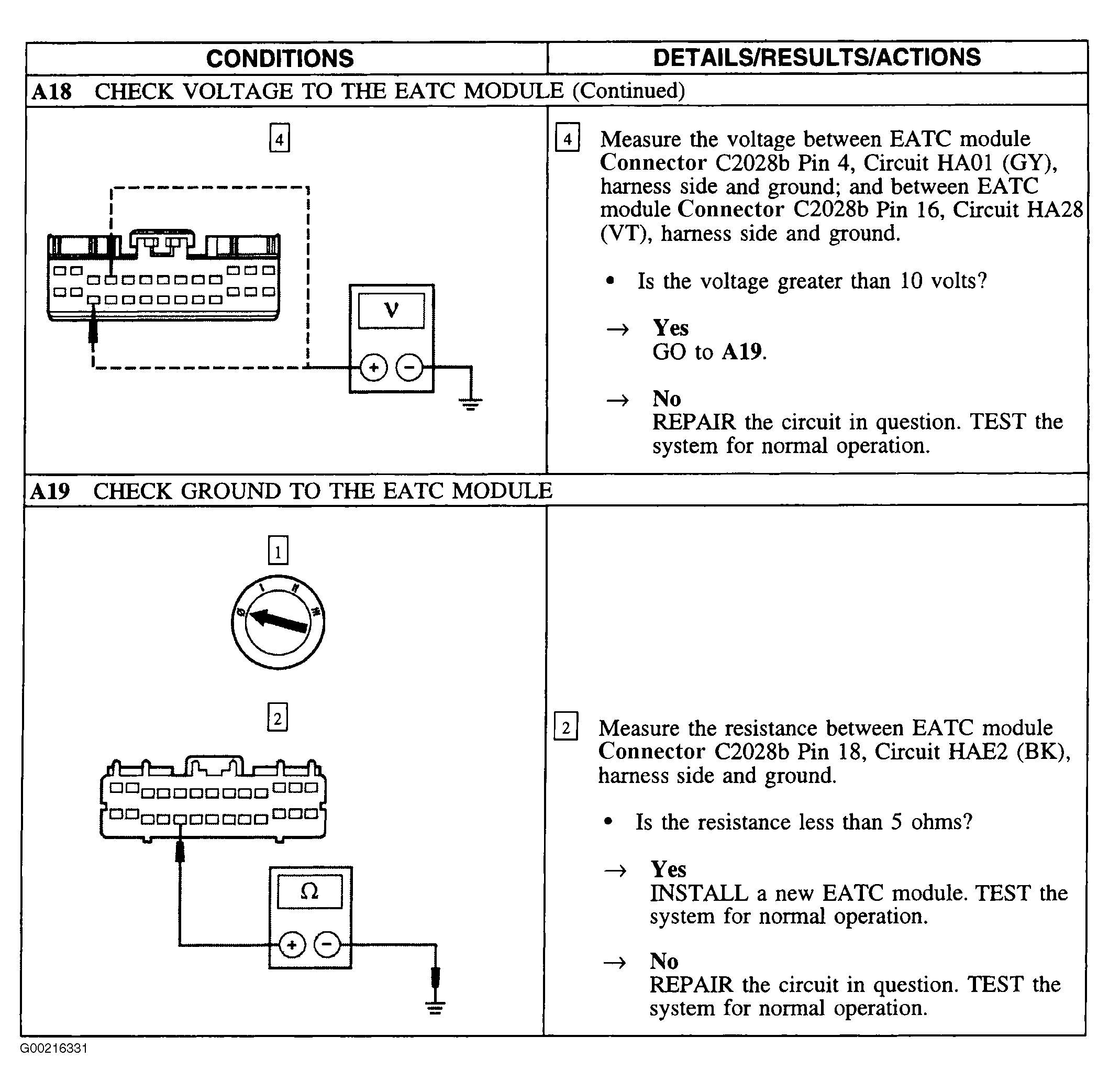

Fig 9: Test A (Steps A18 Cont.-A19)

Courtesy of FORD MOTOR CO.
