Removal and Installation

  1. Disconnect the battery ground cable.
  2. Remove the instrument panel lower steering column opening cover.
    1. Remove the screws.
    2. Remove the instrument panel lower steering column opening cover.

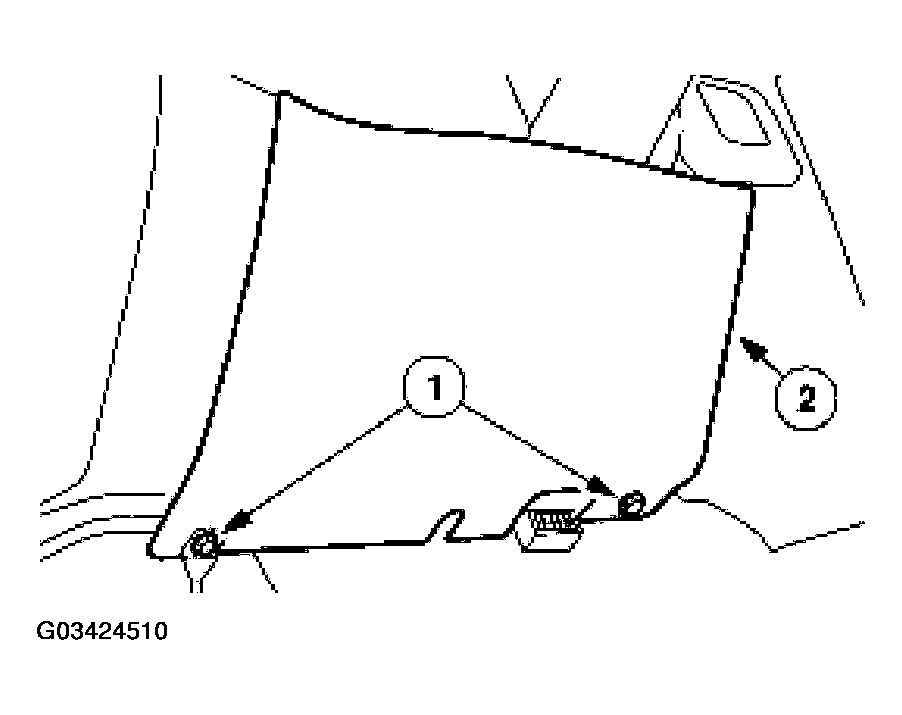

      Fig 1: Removing Instrument Panel Lower Steering Column Opening Cover
      G03424510Courtesy of FORD MOTOR CO.
  3. Remove the steering wheel rotation sensor.
    1. Disconnect the electrical connector.
    2. Remove the screws.
    3. Remove the steering wheel rotation sensor.

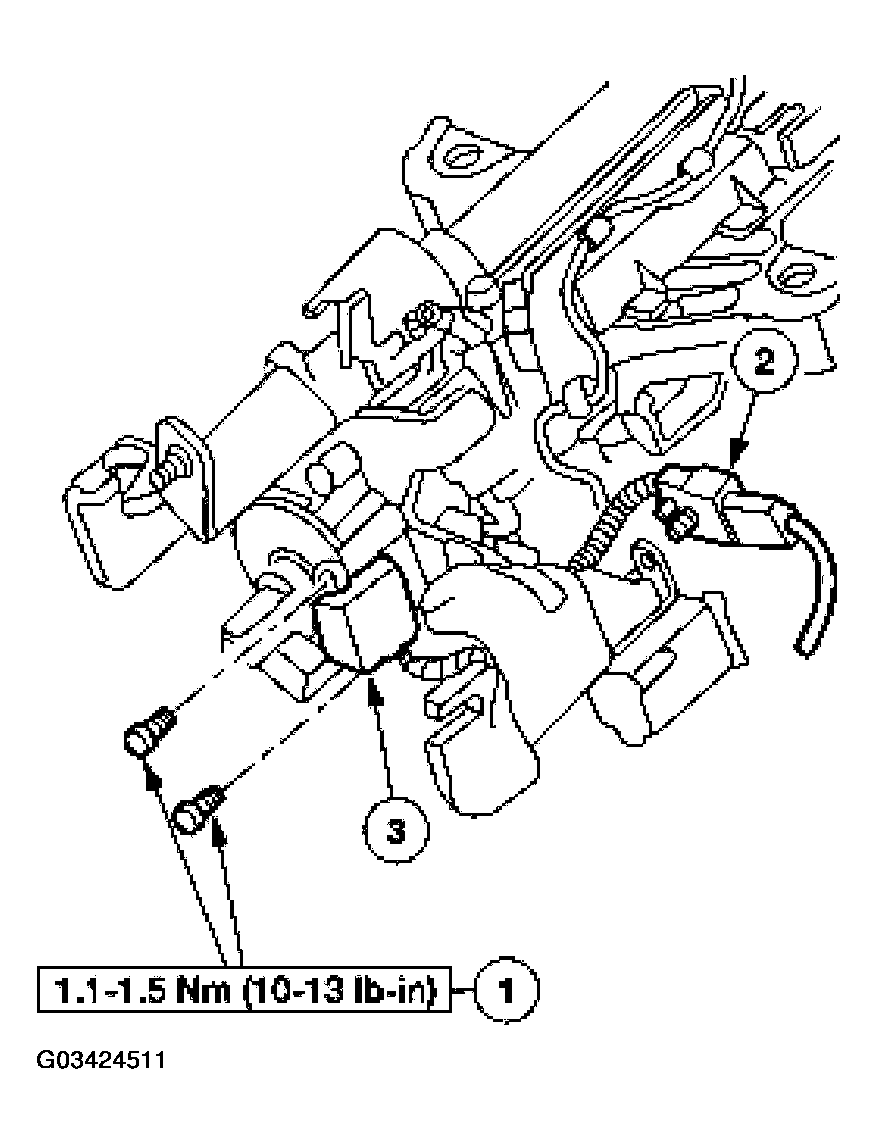

      Fig 2: Removing Steering Wheel Rotation Sensor
      G03424511Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
