Pinpoint Test A: No Communication With The Stability Assist Module

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

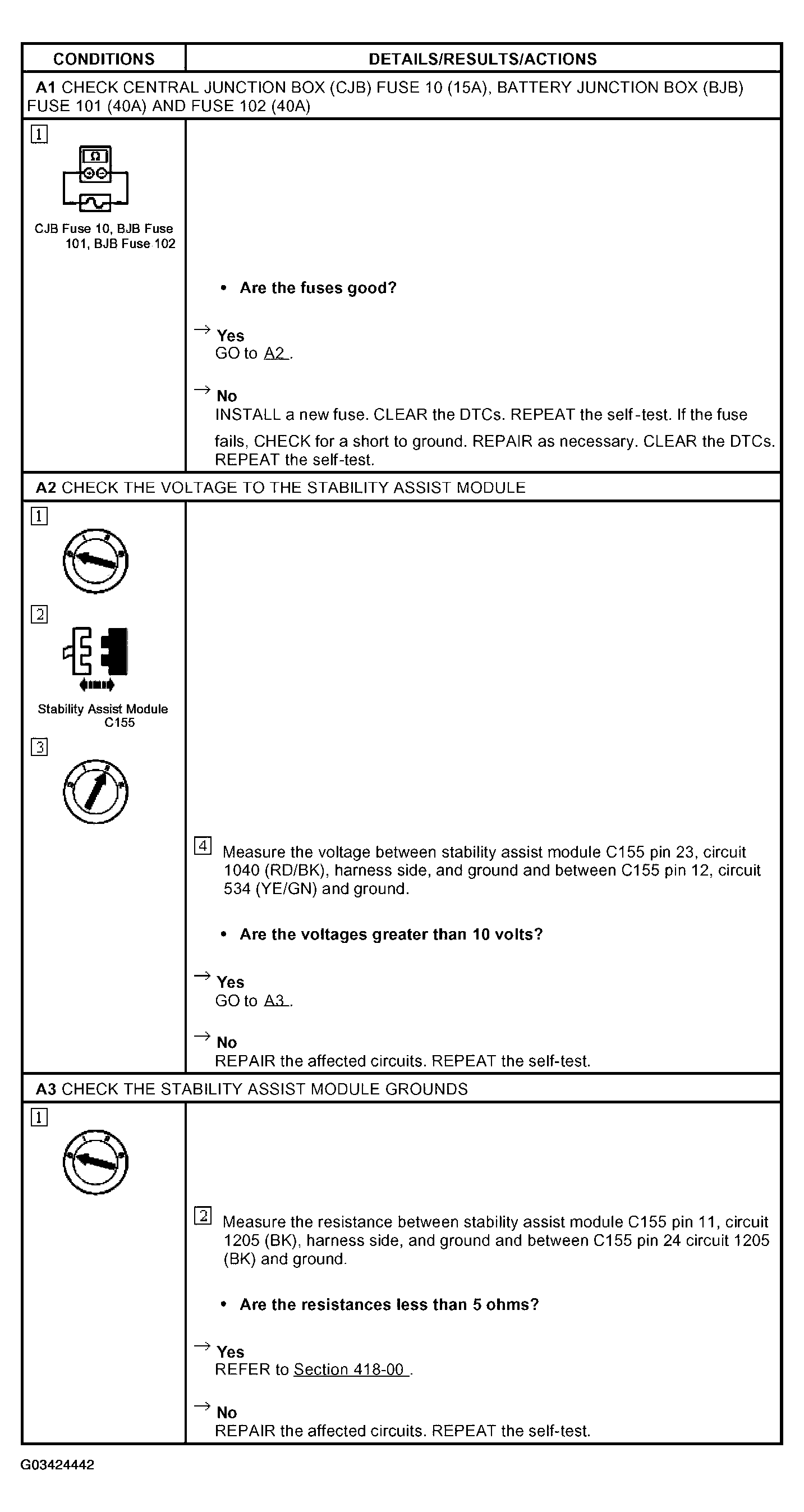

Fig 1: Pinpoint Test A: No Communication With Stability Assist Module (A1-A3)
G03424442Courtesy of FORD MOTOR CO.
