Coolant Control Valve
COOLANT CONTROL VALVE SPECIFICATION

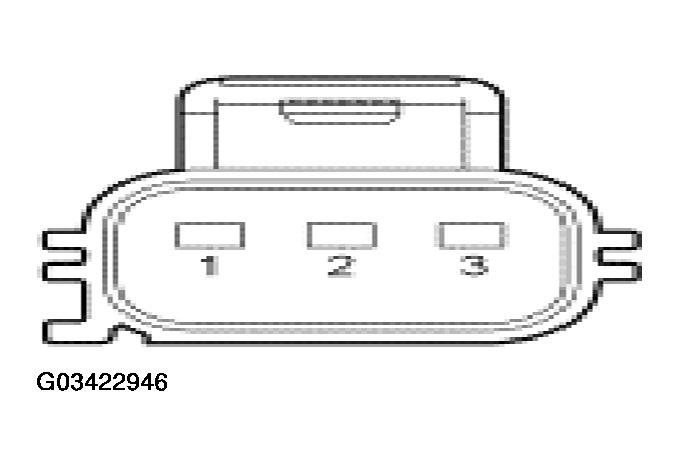

Coolant Control Valve Pins
Resistance
1 and 2
10-23 ohms
2 and 3
10-23 ohms
