Climate Control System Components - J1850 Communications Network (SCP) Linked

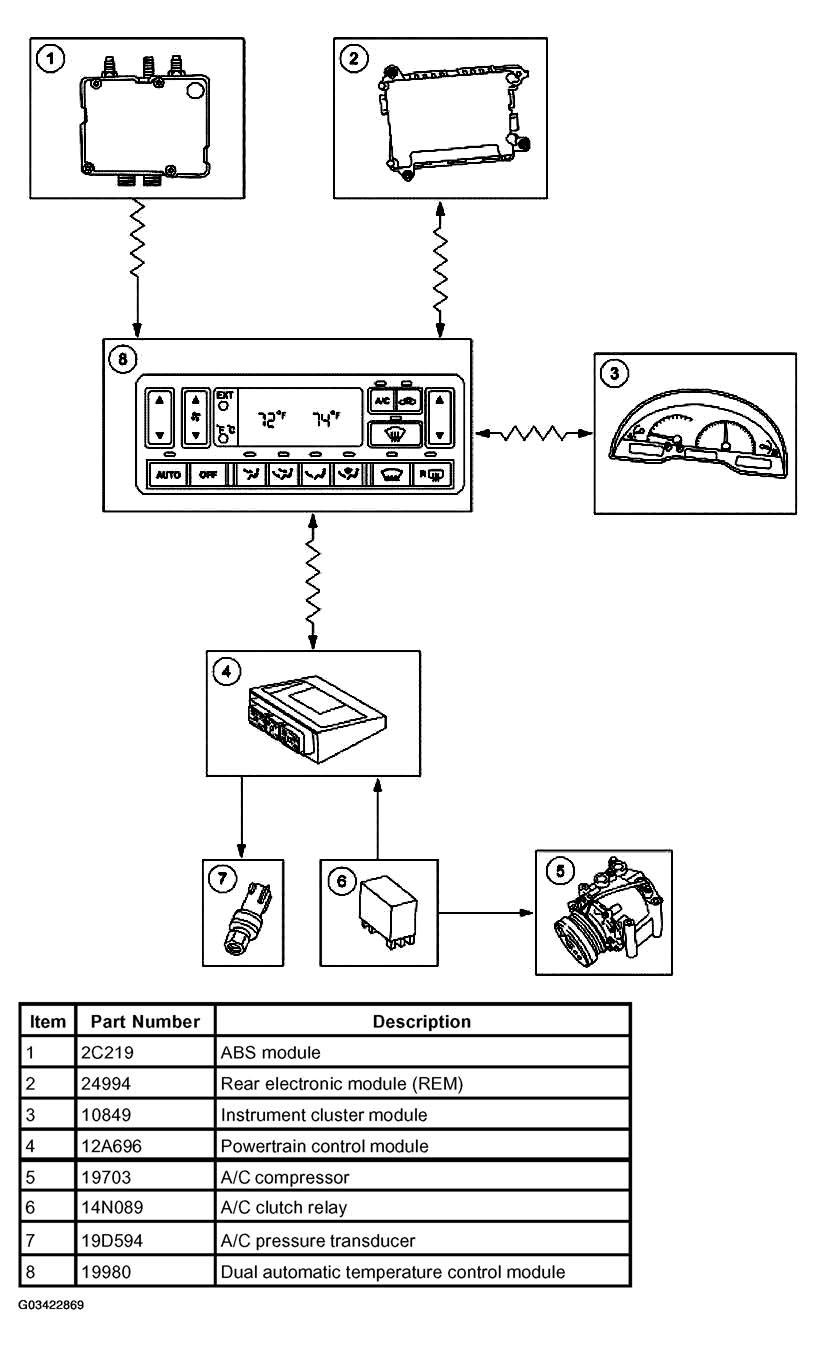

Fig 1: Identifying Climate Control System Components - J1850 Communications Network (SCP) Linked

G03422869

Courtesy of FORD MOTOR CO.
