Pinpoint Test B: DTC B1485, Brake Pedal Input Circuit Battery Short

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

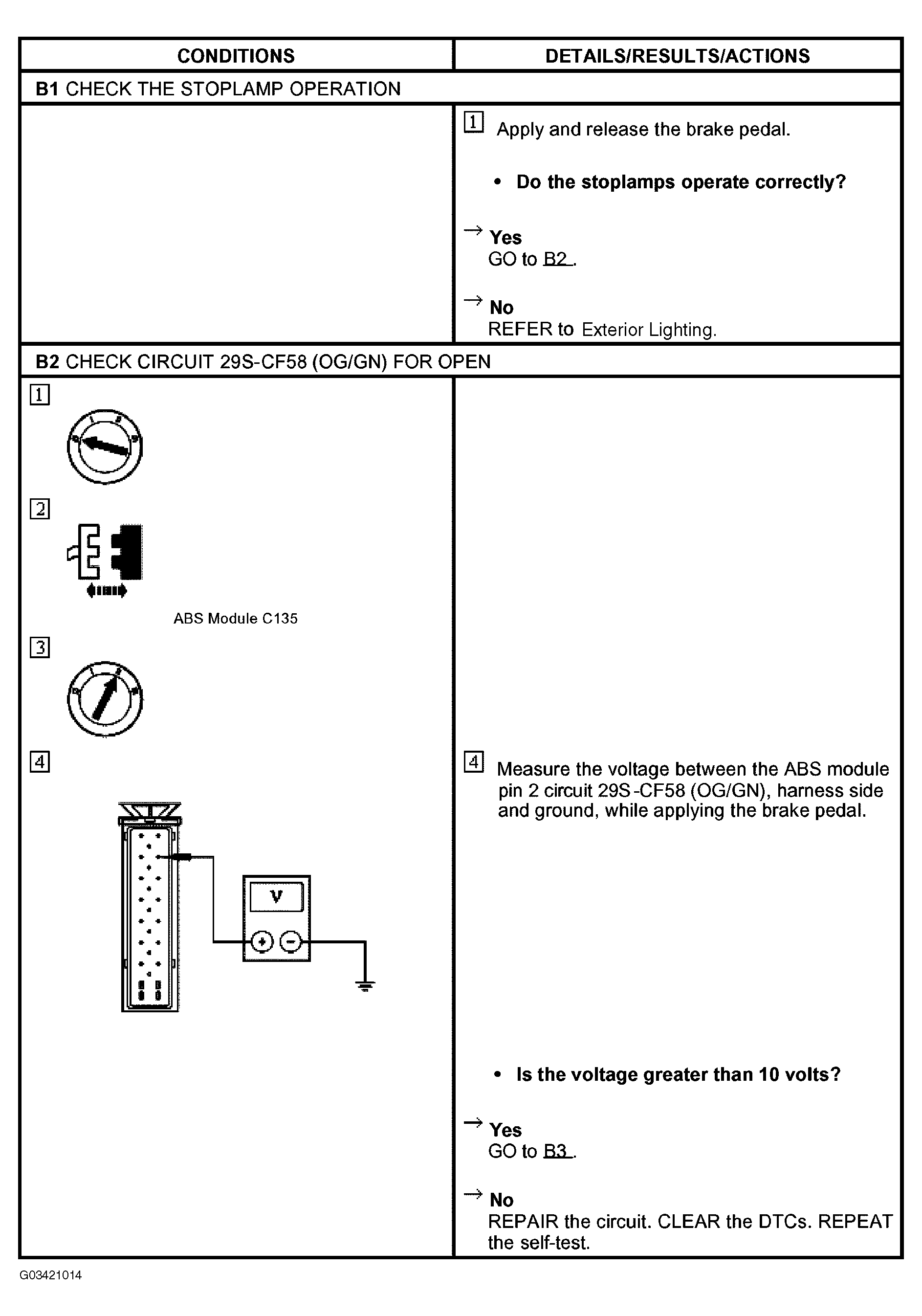

Fig 1: Pinpoint Test B: DTC B1485, Brake Pedal Input Circuit Battery Short (B1-B2)

Courtesy of FORD MOTOR CO.

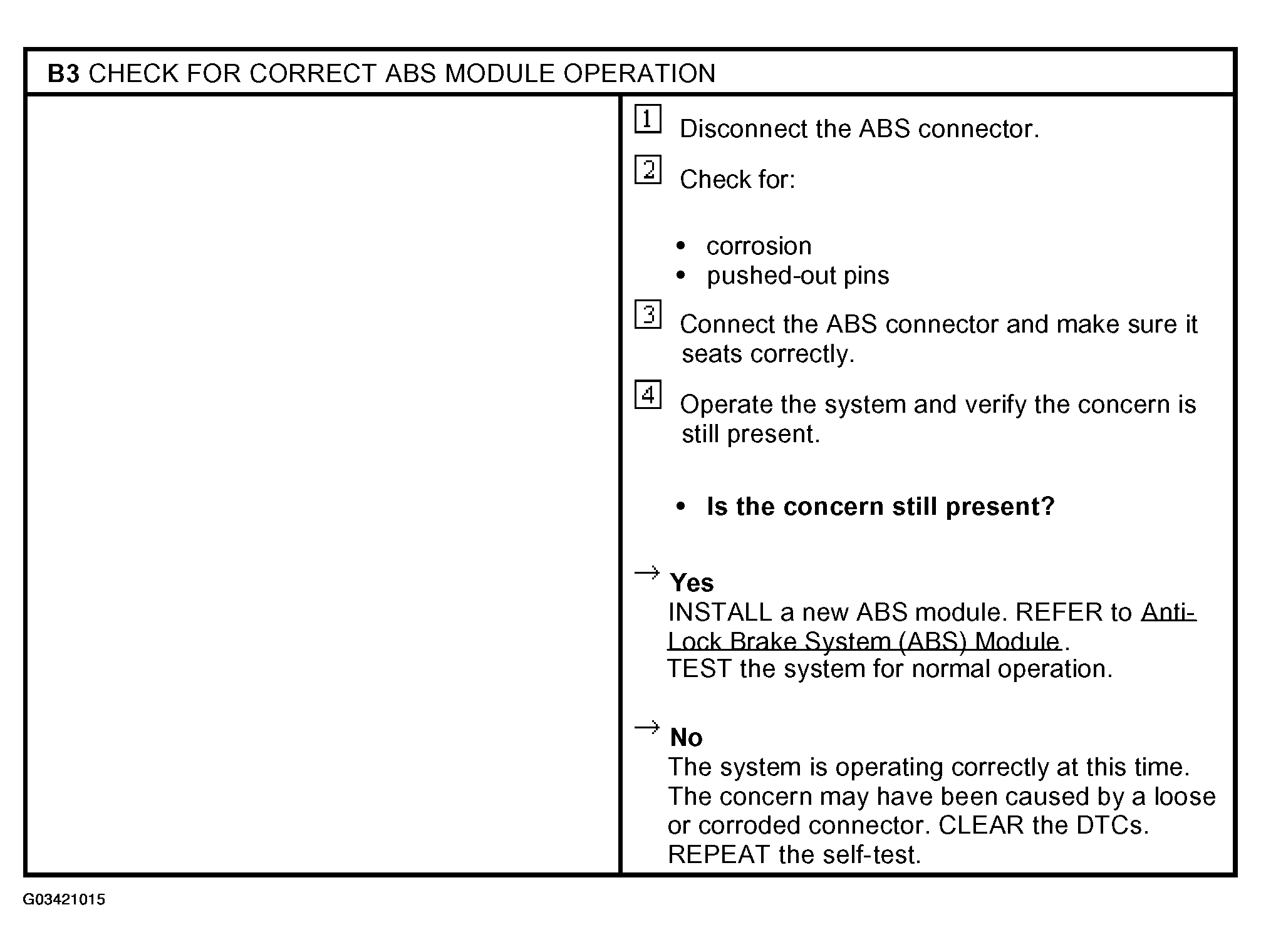

Fig 2: Pinpoint Test B: DTC B1485, Brake Pedal Input Circuit Battery Short (B3)

Courtesy of FORD MOTOR CO.
