Removal and Installation

NOTE: Driver door shown; passenger door similar.
    CAUTION: Carefully lift out the door switch panel from the front of the door panel to avoid breaking the tab at the rear of the panel.
  1. Position the door switch panel aside.
    1. Remove the door handle cup cover and the screw.
    2. Release the locking tabs at the front of the door switch panel.

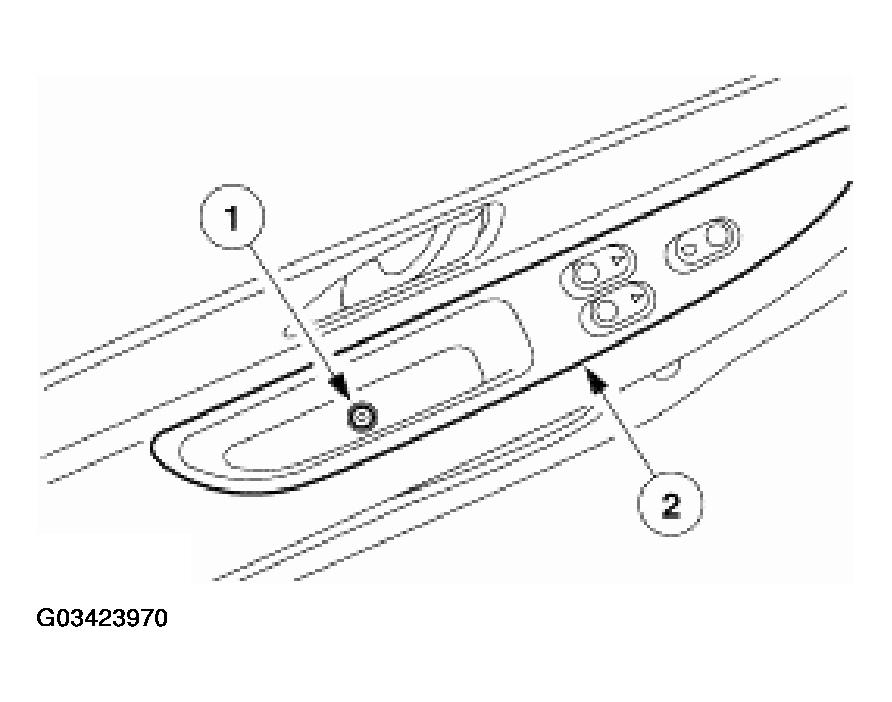

      Fig 1: Positioning Door Switch Panel Aside
      G03423970Courtesy of FORD MOTOR CO.
  2. Disconnect the electrical connector.
  3. Release the retaining clips and remove the window control switch from the panel.

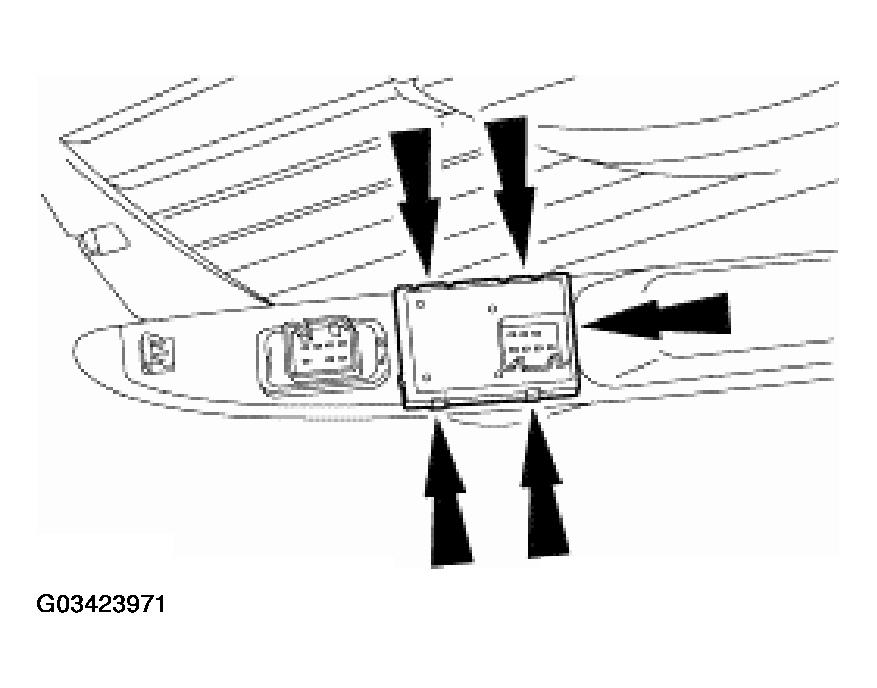

    Fig 2: Removing Window Control Switch From Panel
    G03423971Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
