Removal and Installation

  1. Remove the driver side air bag; refer to AIR BAG RESTRAINT SYSTEMS .
  2. Remove the speed control switch.
    1. Remove the screws.
    2. Disconnect the electrical connector.

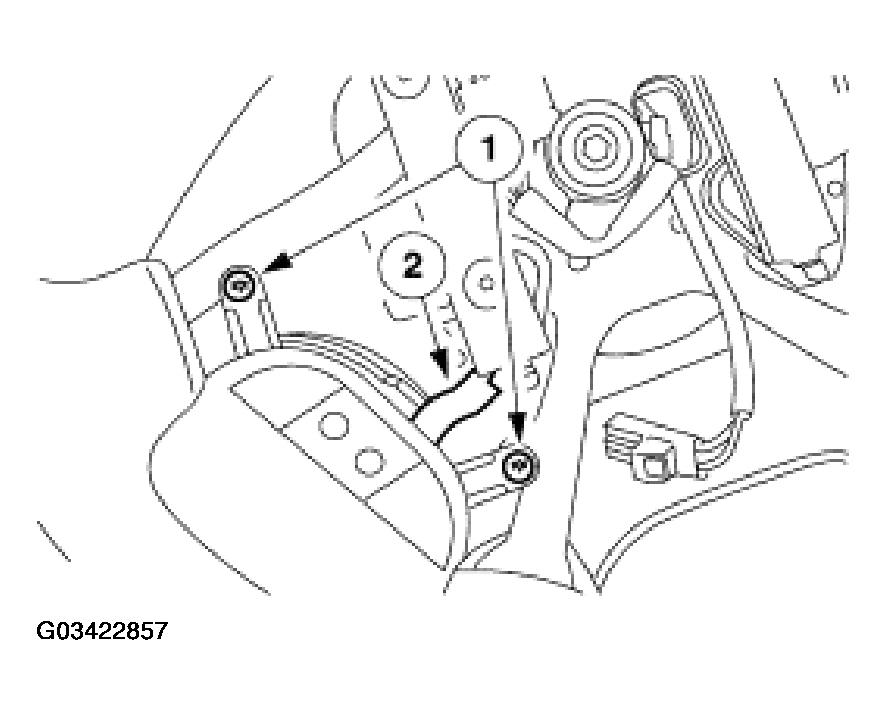

      Fig 1: Removing Speed Control Switch
      G03422857Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
