Pinpoint Test B: Unable To Enter Self-Test - Communication OK
Pinpoint Test B: Unable To Enter Self-Test - Communication OK

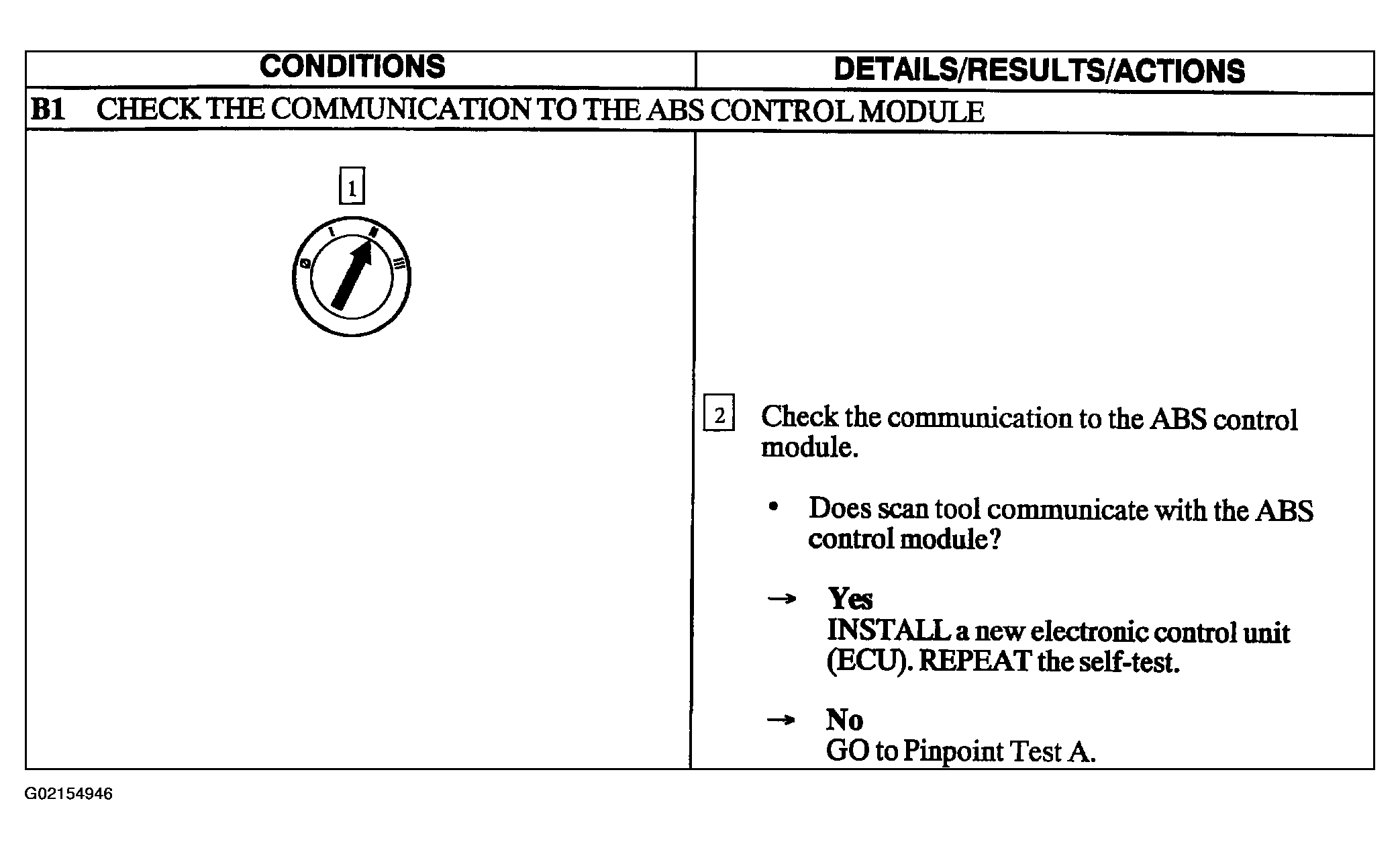

Fig 1: Pinpoint Test B: Unable To Enter Self-Test - Communication OK
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
