Reverse Clutch: Notes

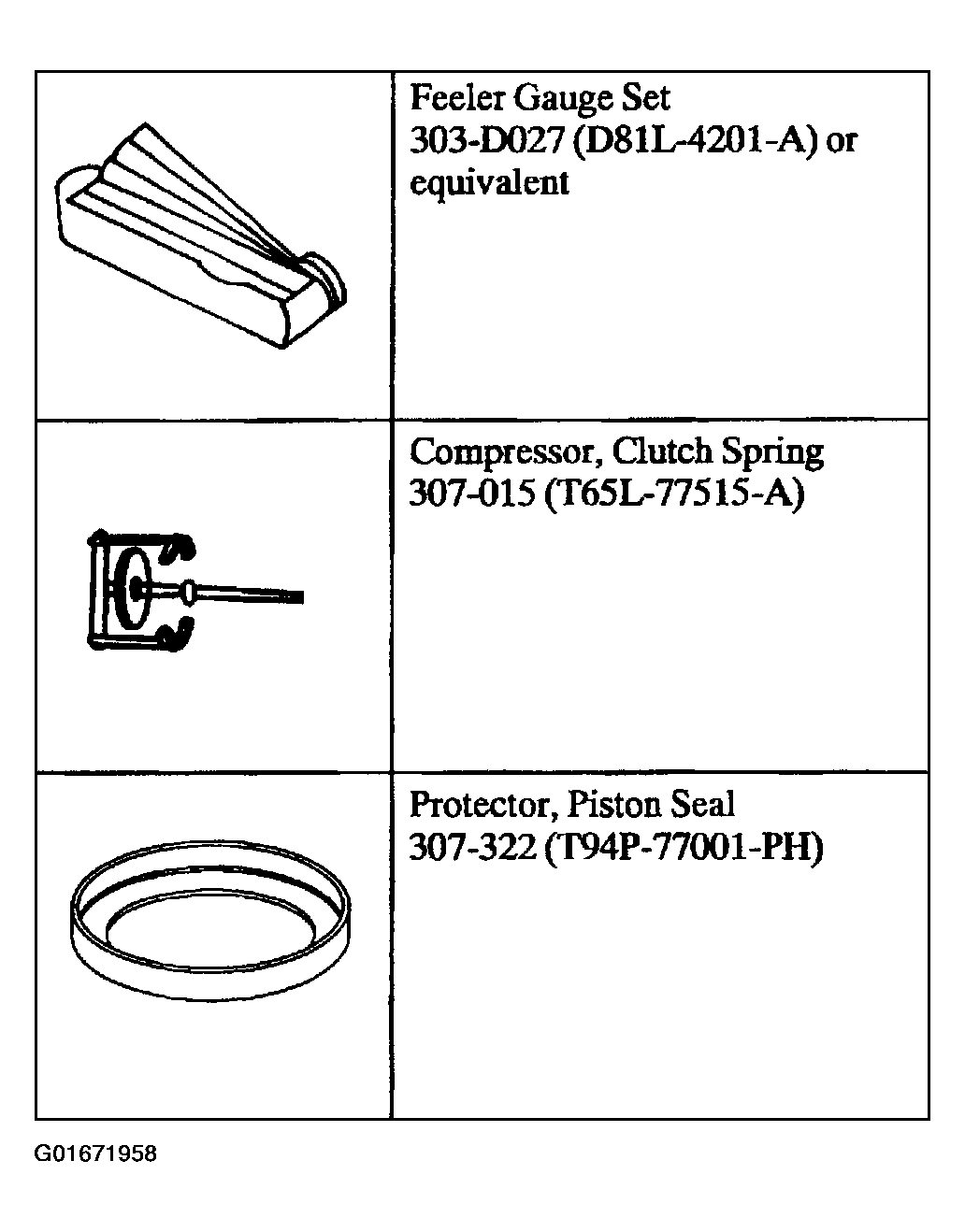

Fig 1: Identifying Special Tools
G01671958Courtesy of FORD MOTOR CO.

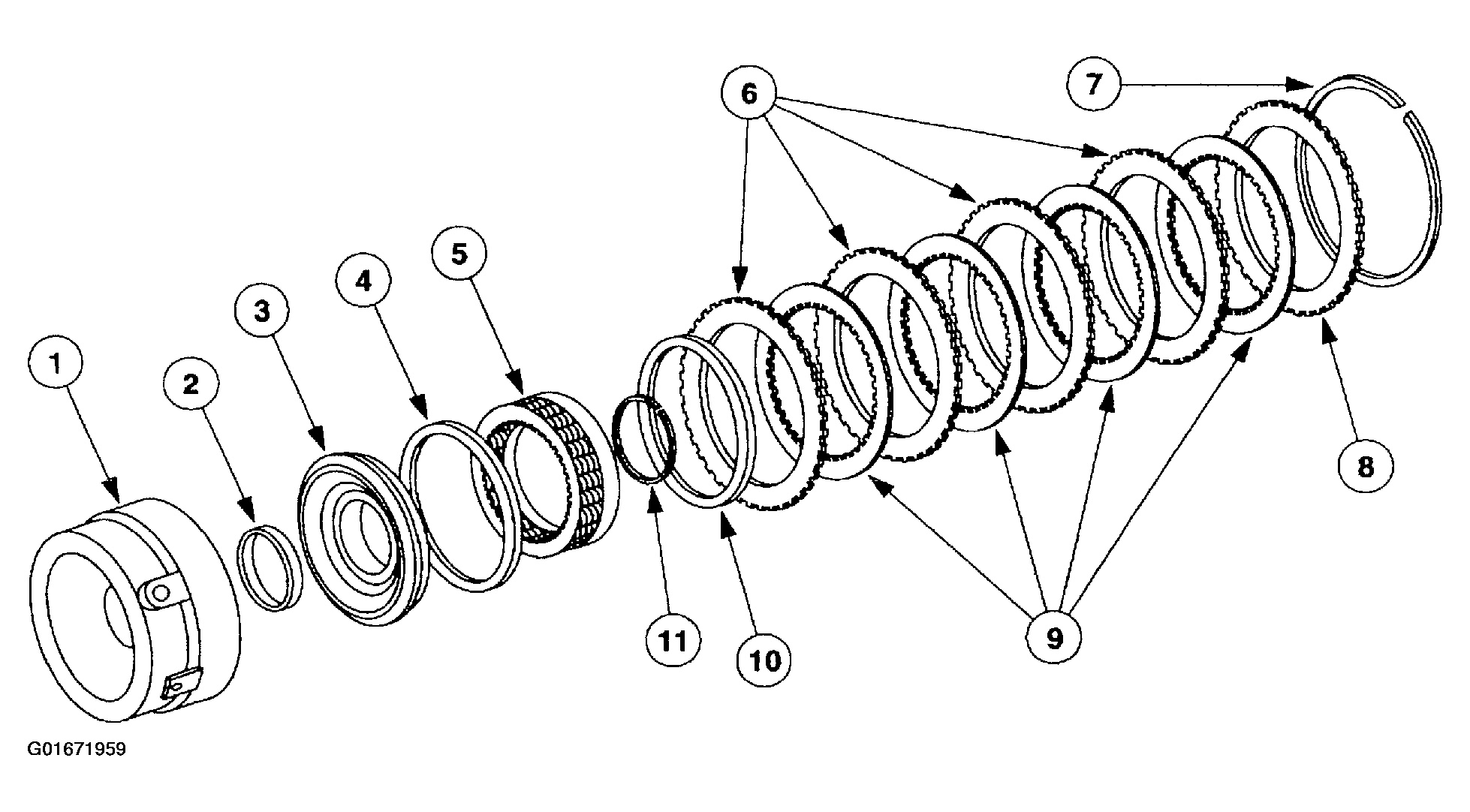

Fig 2: Identifying Reverse Clutch Assembly Components (1 Of 3)
G01671959Courtesy of FORD MOTOR CO.

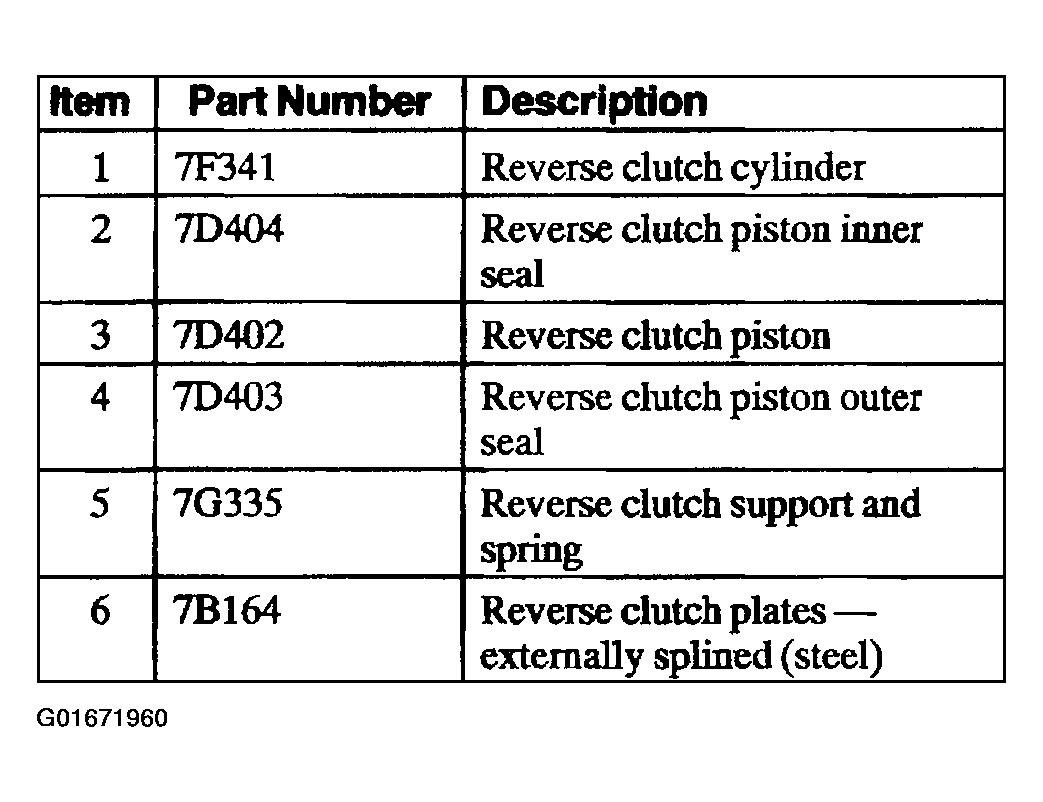

Fig 3: Identifying Reverse Clutch Assembly Components (2 Of 3)
G01671960Courtesy of FORD MOTOR CO.

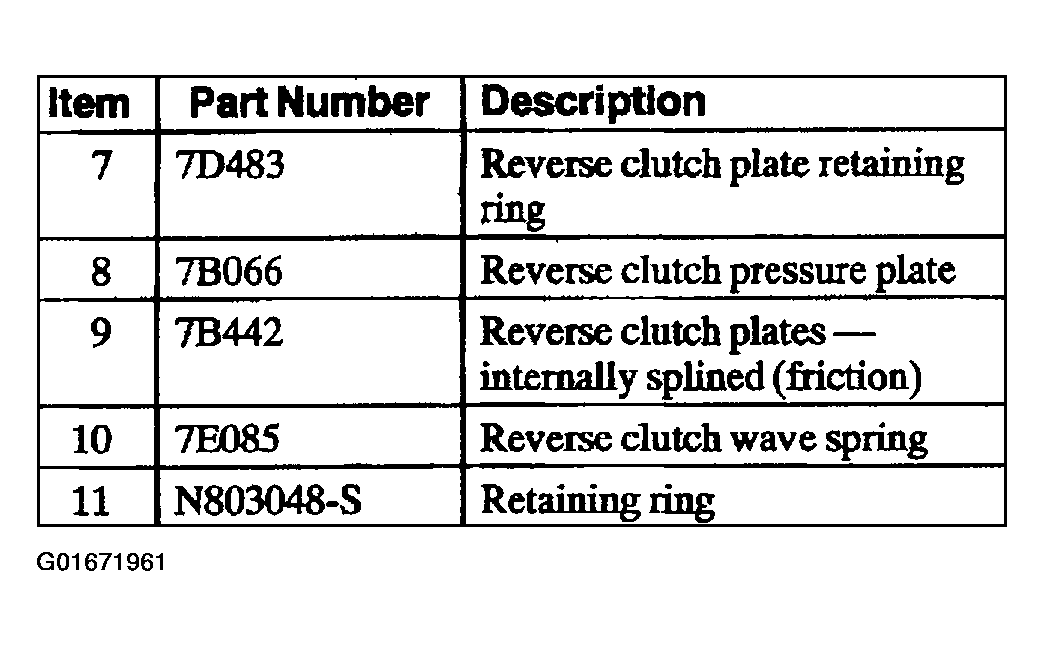

Fig 4: Identifying Reverse Clutch Assembly Components (3 Of 3)
G01671961Courtesy of FORD MOTOR CO.
