Driven Sprocket: Check

Check the bearing race to verify that it has not moved out of position or become scored. If worn or scored, install a new driven sprocket.
Inspect the sensor wheel for bent or damaged tabs.

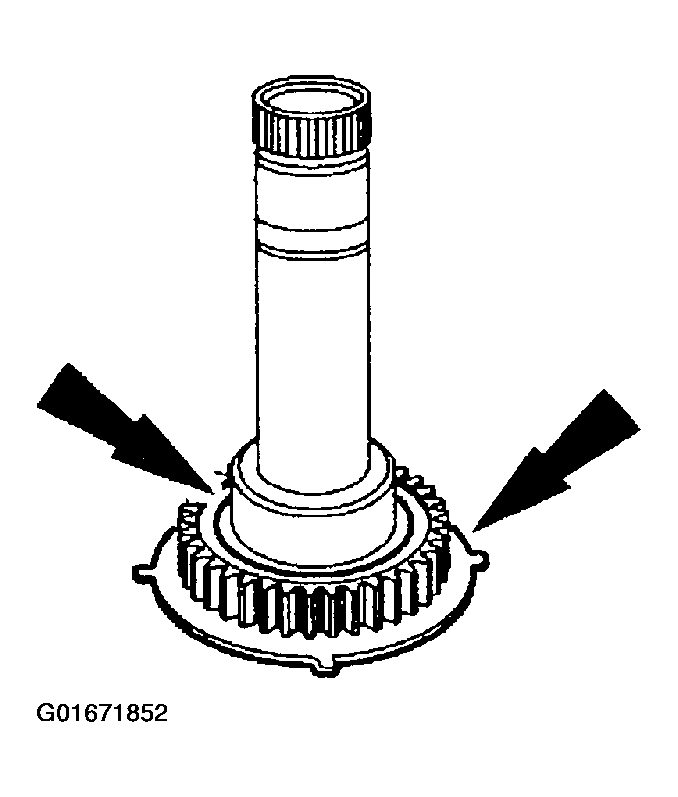

Fig 1: Checking Bearing Race & Sensor Wheel

Courtesy of FORD MOTOR CO.

NOTE: If damaged, install a new speed sensor wheel.

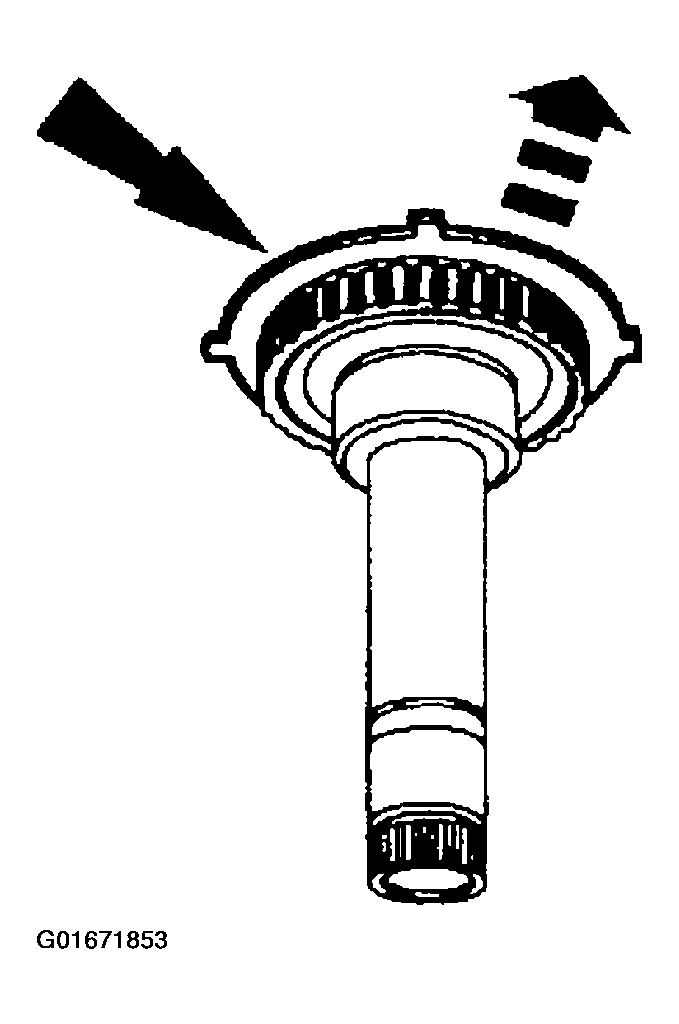

Fig 2: Removing Speed Sensor Wheel

Courtesy of FORD MOTOR CO.

Install new speed sensor ring.

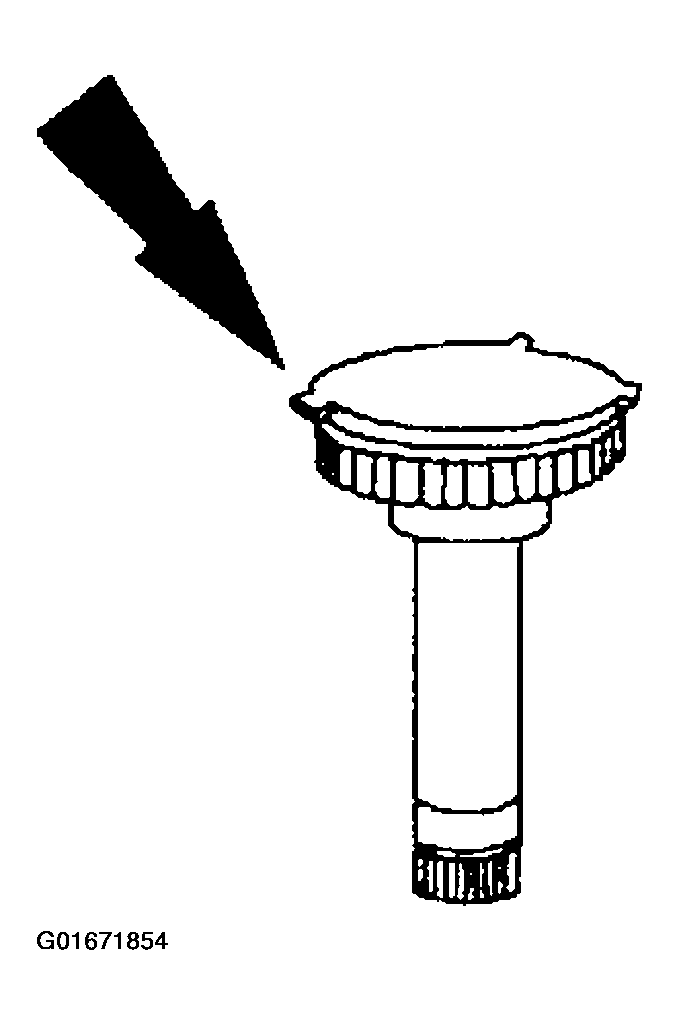

Fig 3: Installing New Speed Sensor Ring
Courtesy of FORD MOTOR CO.
