Driven Sprocket Support: Disassembly

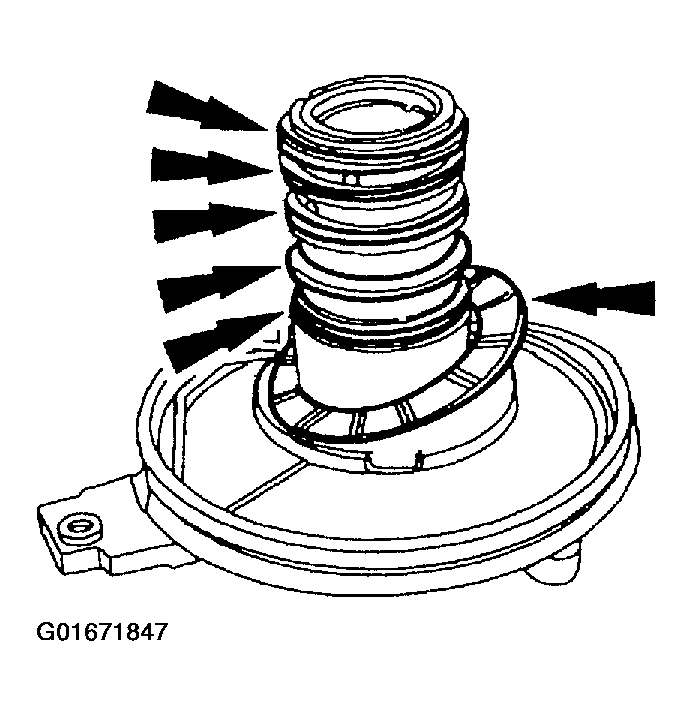

  1. Remove the Teflon(R) seal rings and the No. 5 thrust washer.
    Fig 1: Removing Teflon Seal Rings & No. 5 Thrust Washer
    G01671847Courtesy of FORD MOTOR CO.

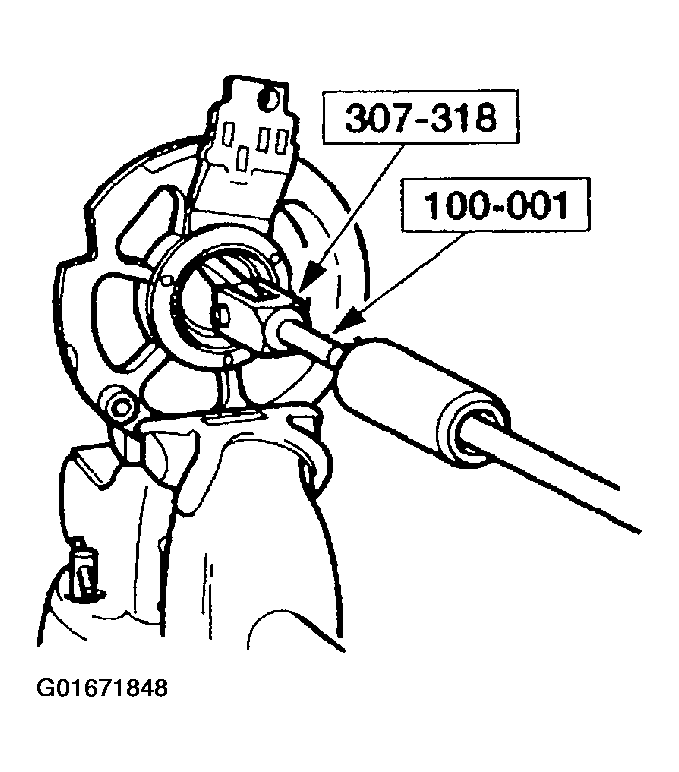

  2. Using the special tools, remove the bearing.
    Fig 2: Removing Bearing
    G01671848Courtesy of FORD MOTOR CO.
