Driven Sprocket Support: Assembly

  1. If removed, install a new driven sprocket bearing. Using an arbor press and the special tools, install a new driven sprocket bearing.
    Fig 1: Installing A New Driven Sprocket Bearing
    G01671849Courtesy of FORD MOTOR CO.
    2. CAUTION: The seal rings must be installed correctly. Transaxle failure could result.
  2. Install new Teflon(R) seals and the No. 5 thrust washer.

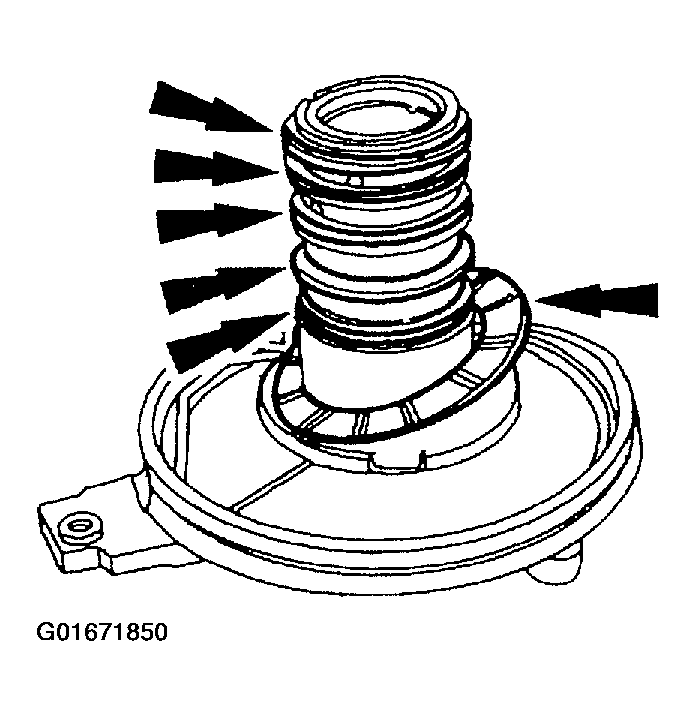

    3. Fig 2: Installing New Teflon Seals & No. 5 Thrust Washer
    G01671850Courtesy of FORD MOTOR CO.
  3. Make sure that the seals are mated correctly.
Fig 3: Identifying Correctly Mated Seals
G01671851Courtesy of FORD MOTOR CO.
