Direct Clutch Cylinder: Notes

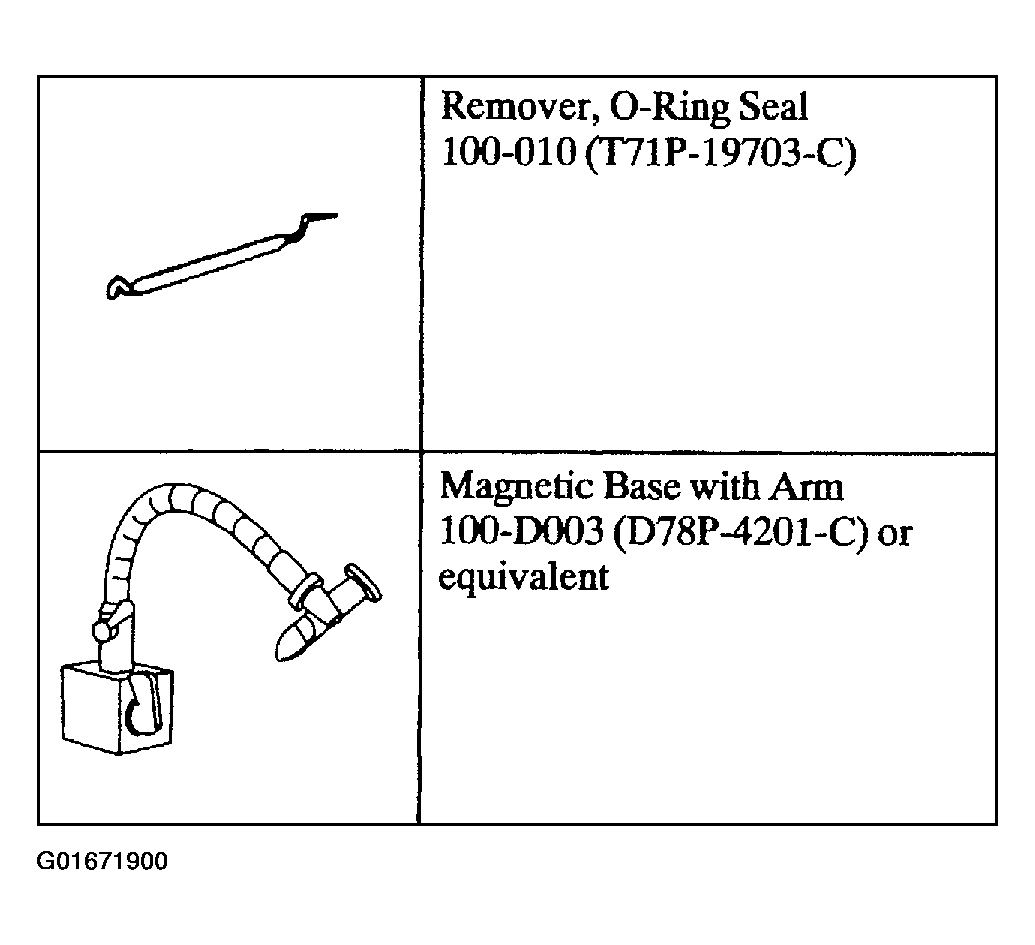

Fig 1: Identifying Special Tools (1 Of 3)
G01671900Courtesy of FORD MOTOR CO.
Fig 2: Identifying Special Tools (2 Of 3)
G01671901Courtesy of FORD MOTOR CO.

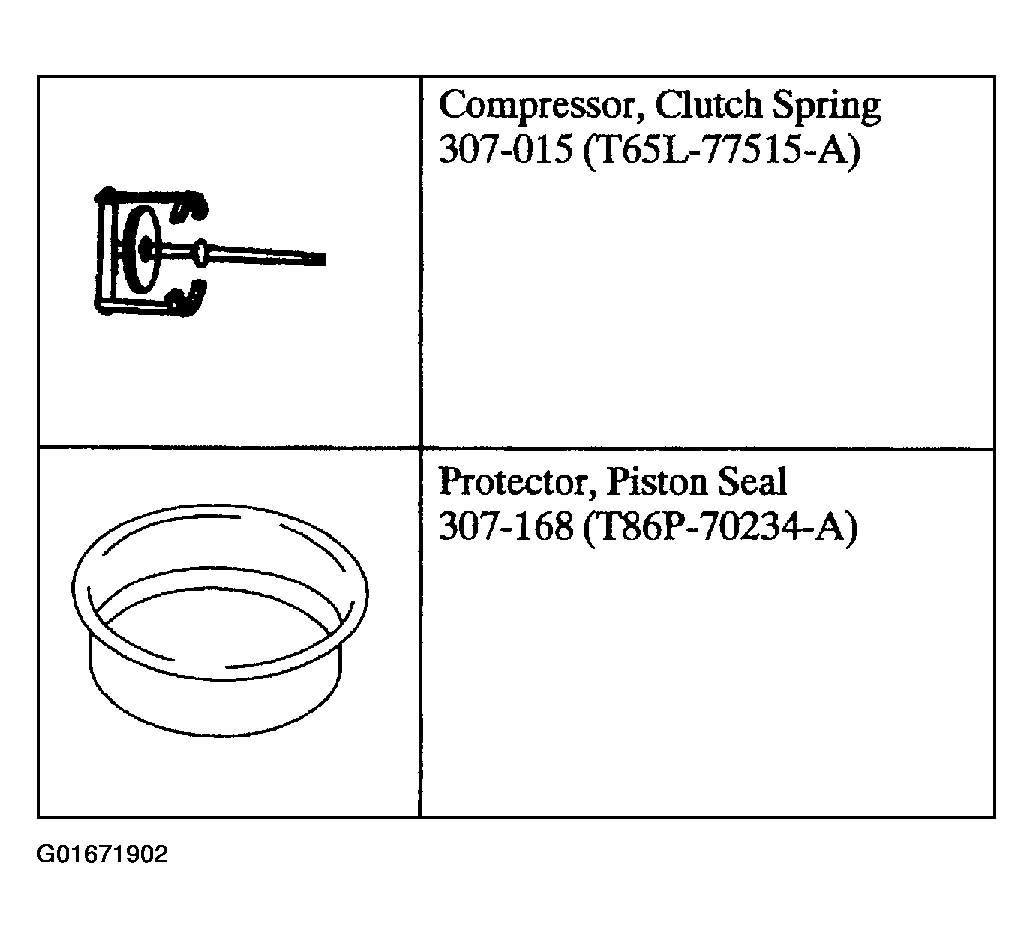

Fig 3: Identifying Special Tools (3 Of 3)
G01671902Courtesy of FORD MOTOR CO.

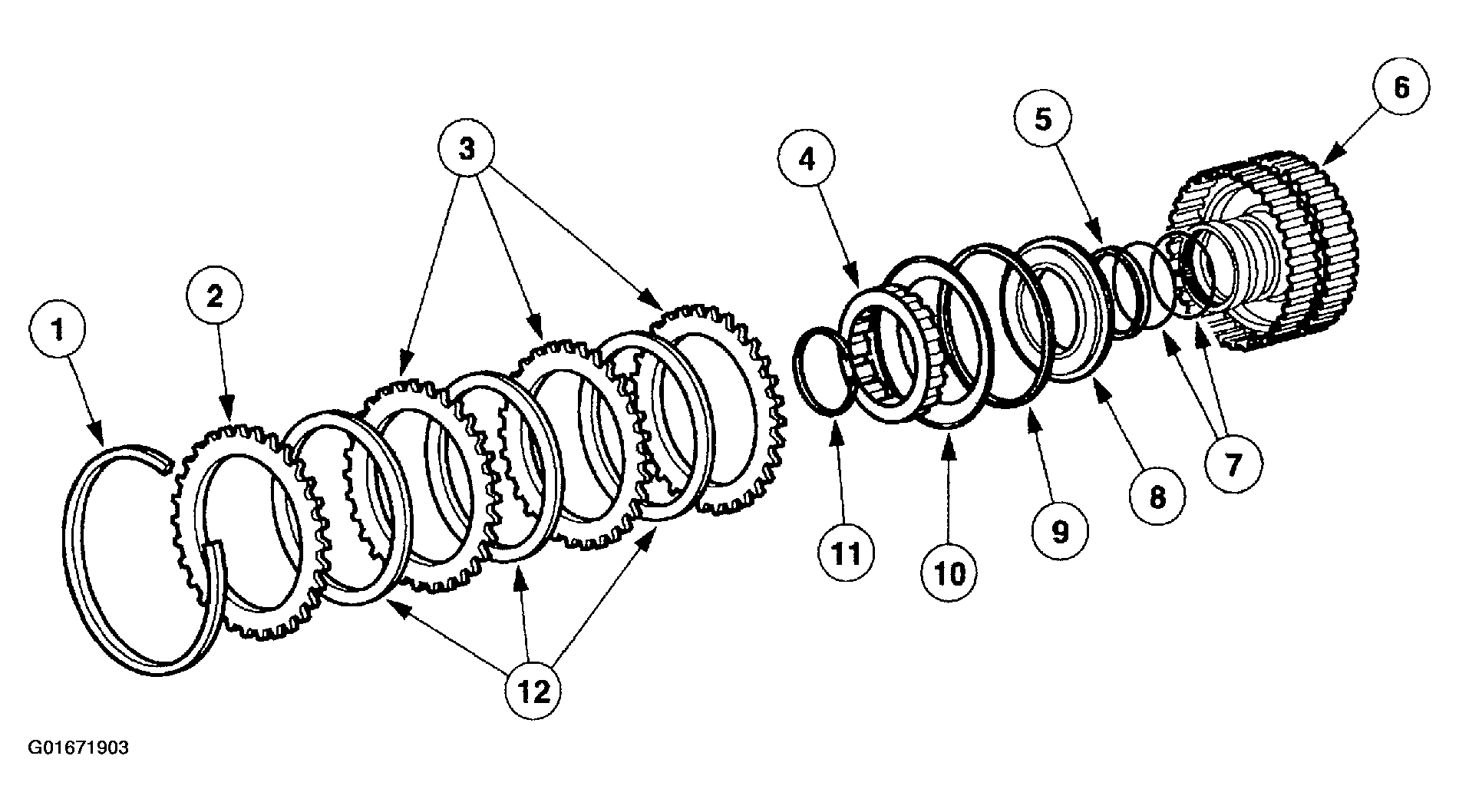

Fig 4: Identifying Direct Clutch Assembly Components (1 Of 3)
G01671903Courtesy of FORD MOTOR CO.

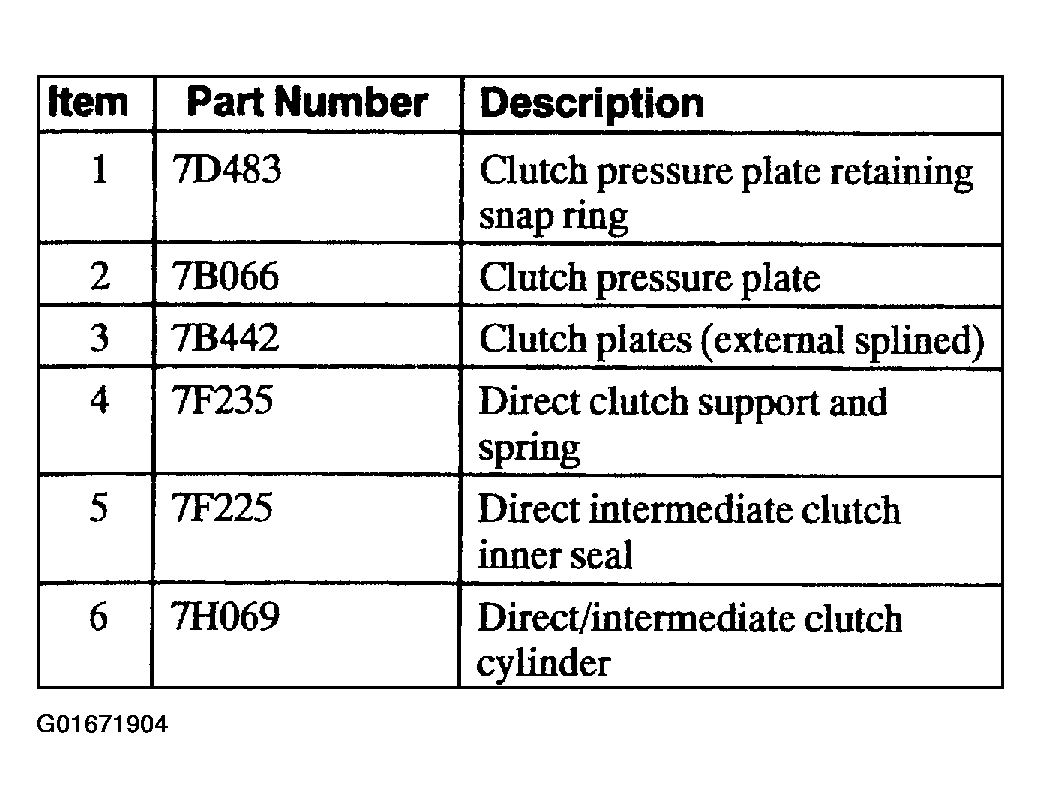

Fig 5: Identifying Direct Clutch Assembly Components (2 Of 3)
G01671904Courtesy of FORD MOTOR CO.

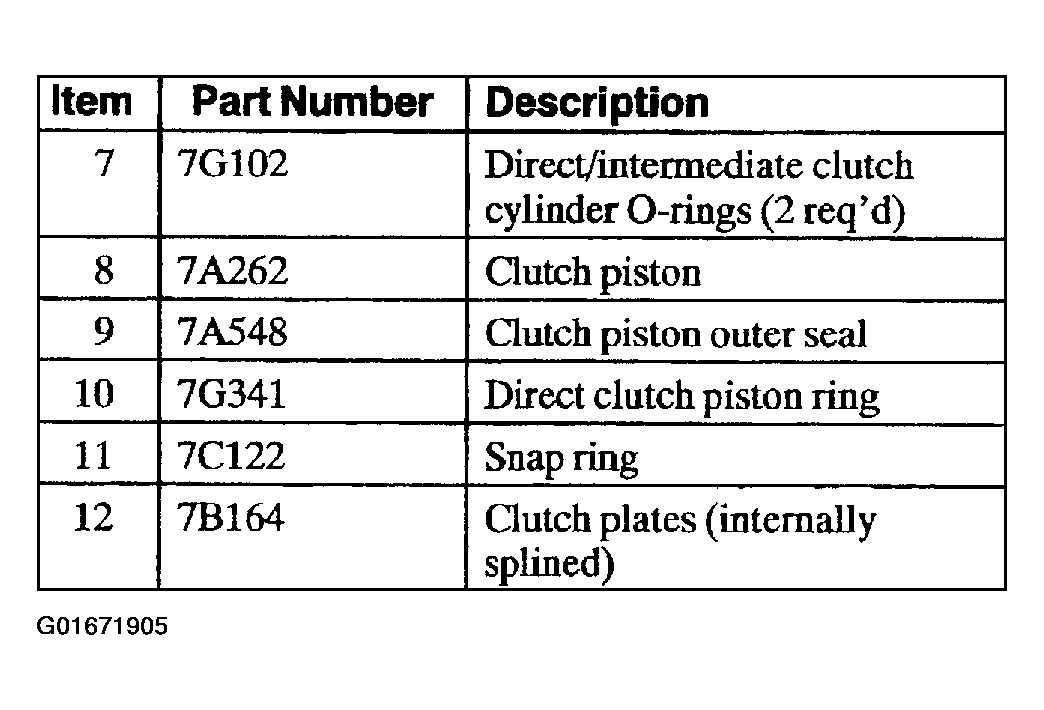

Fig 6: Identifying Direct Clutch Assembly Components (3 Of 3)
G01671905Courtesy of FORD MOTOR CO.
