Pinpoint Test H: Abs Valve Power Relay Circuit Failure

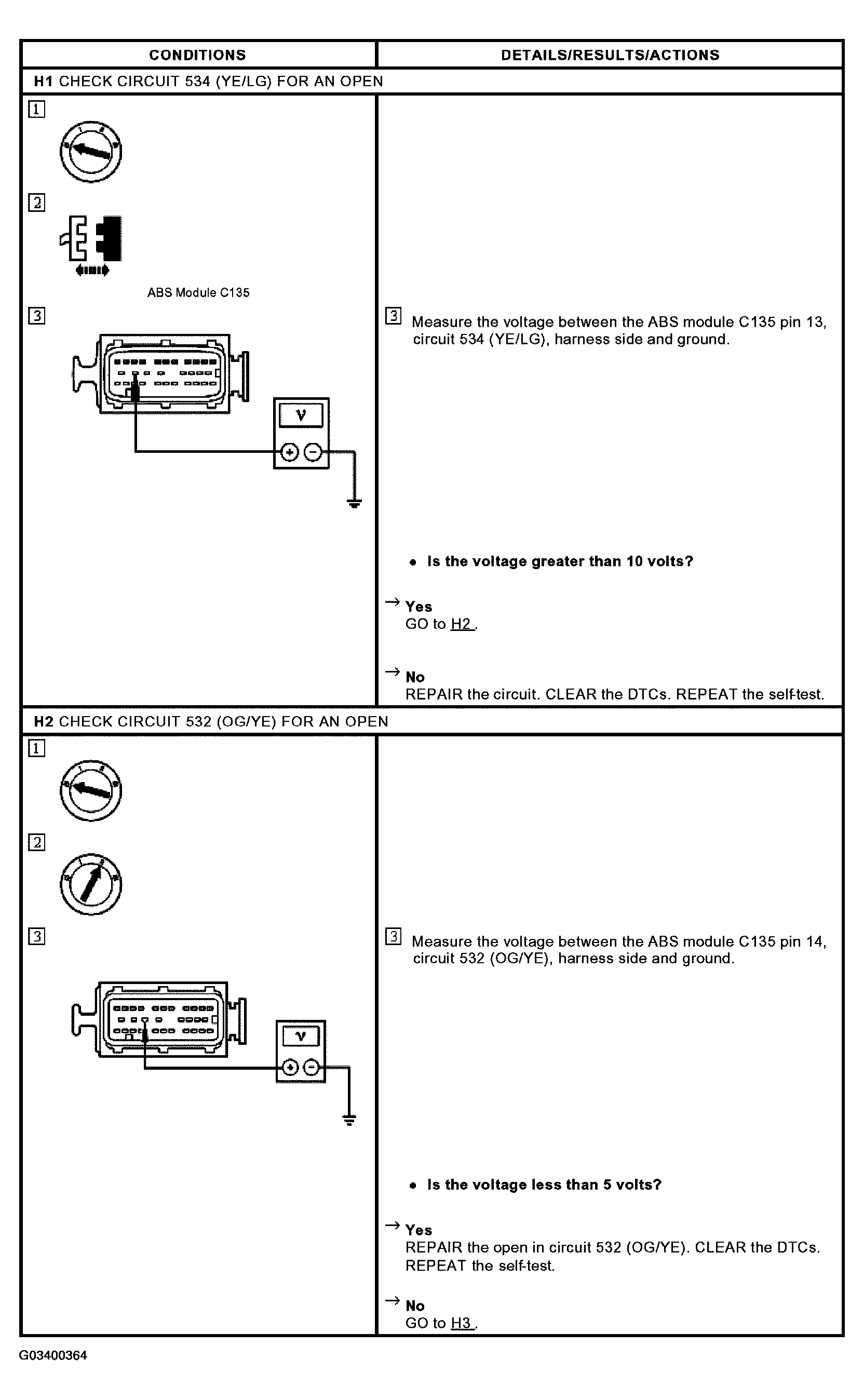

Fig 1: Identifying Pinpoint Test H: ABS Valve Power Relay Circuit Failure (H1 & H2)
G03400364Courtesy of FORD MOTOR CO.

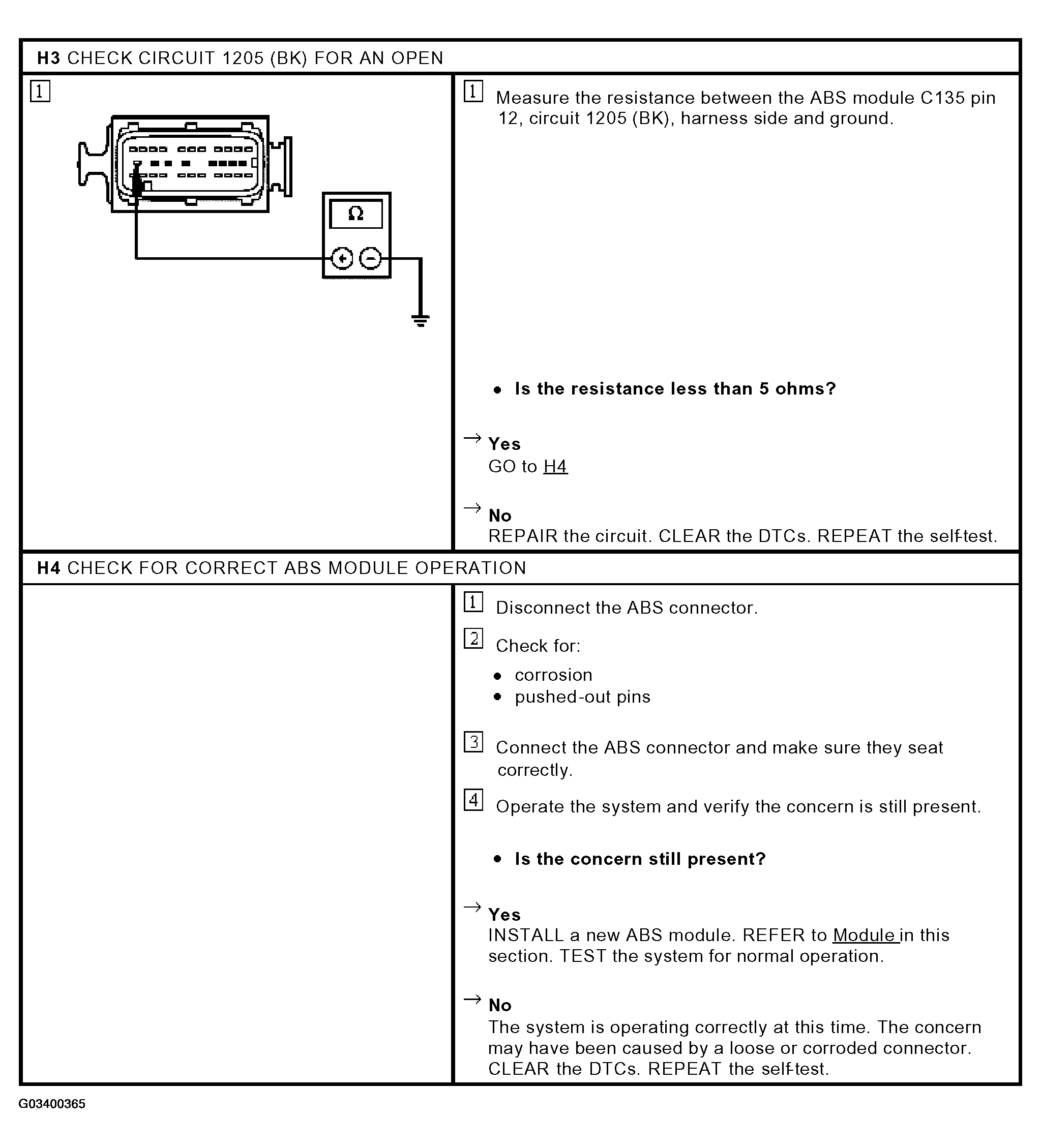

Fig 2: Identifying Pinpoint Test H: ABS Valve Power Relay Circuit Failure (H3 & H4)
G03400365Courtesy of FORD MOTOR CO.
