Pinpoint Test I: Poor Vehicle Tracking During Anti-Lock Function

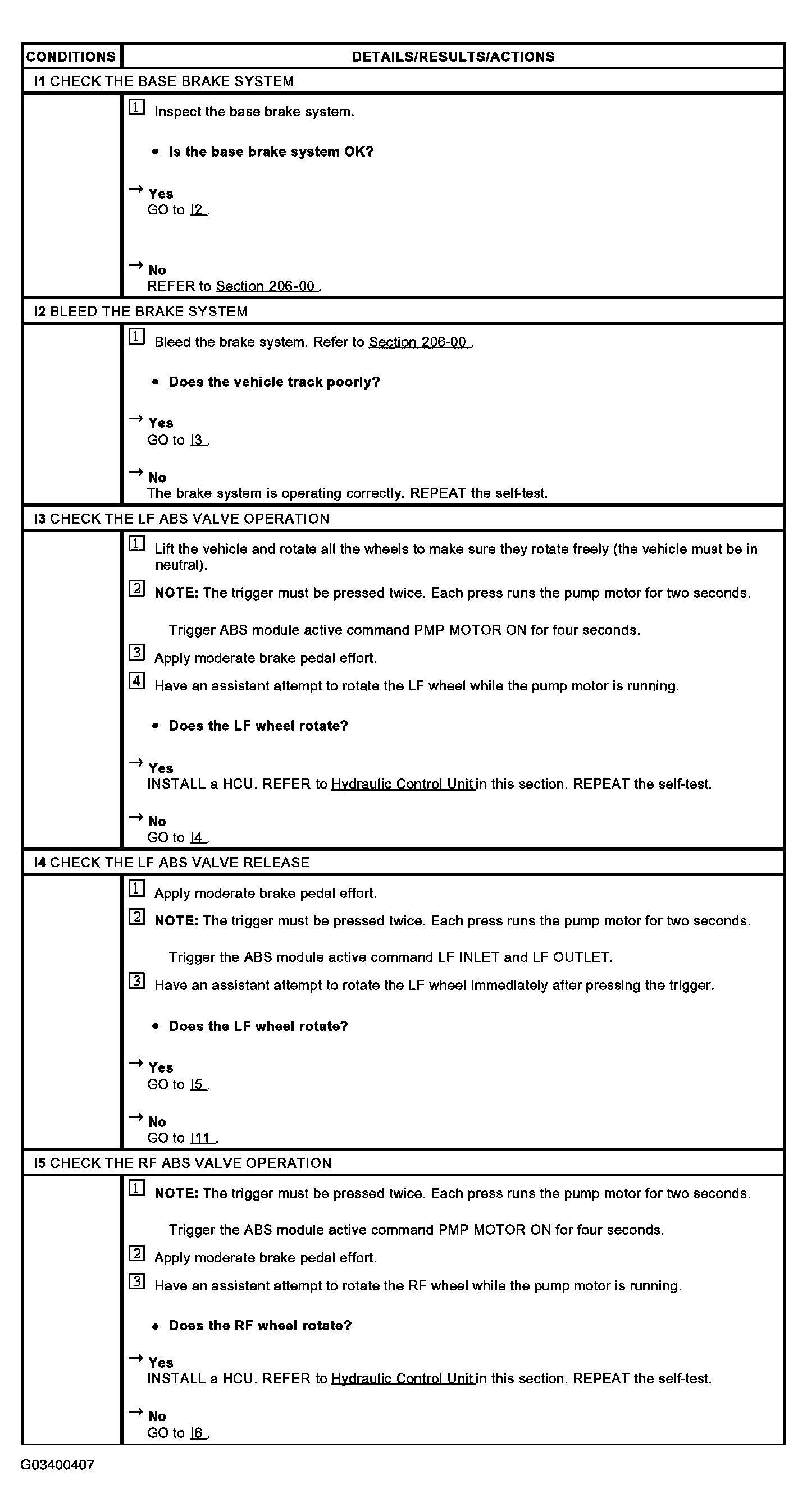

Fig 1: Identifying Pinpoint Test Chart I: Poor Vehicle Tracking During Anti-Lock Function (I1-I5)
G03400407Courtesy of FORD MOTOR CO.

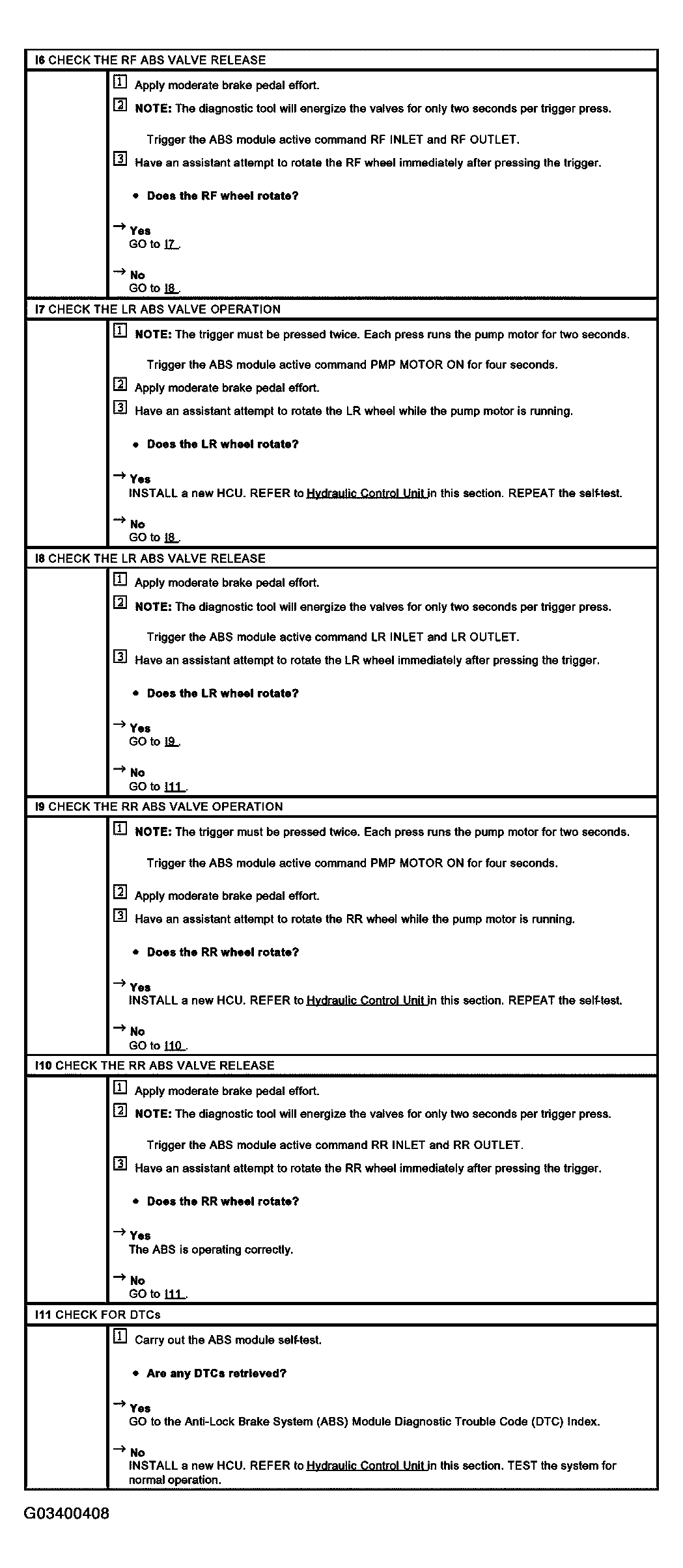

Fig 2: Identifying Pinpoint Test Chart I: Poor Vehicle Tracking During Anti-Lock Function (I6-I11)
G03400408Courtesy of FORD MOTOR CO.
