Inline Connector End View (C92)

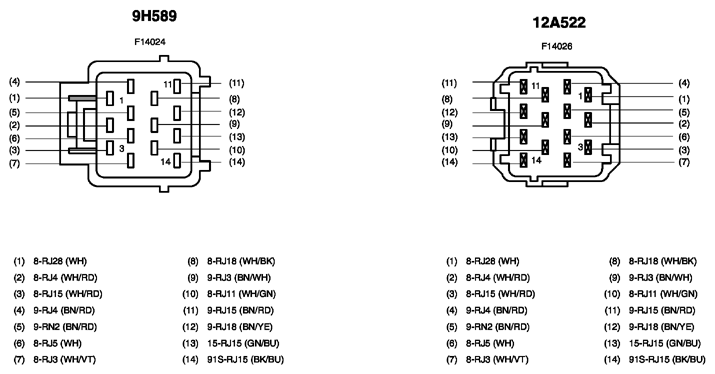

Fig 1: Identifying Inline Connector (C92)

G10361399

Courtesy of FORD MOTOR CO.
