Inline Connector End View (C80)

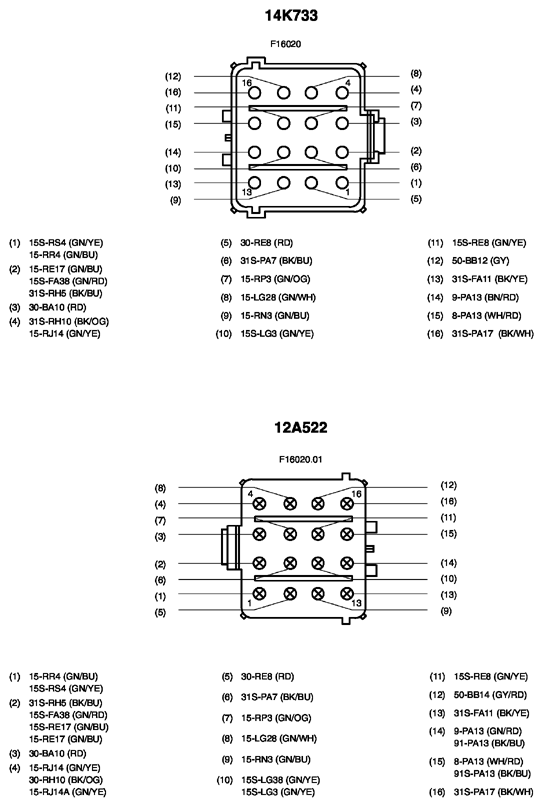

Fig 1: Identifying Inline Connector (C80)

G10361393

Courtesy of FORD MOTOR CO.
