Inline Connector End View (C48)

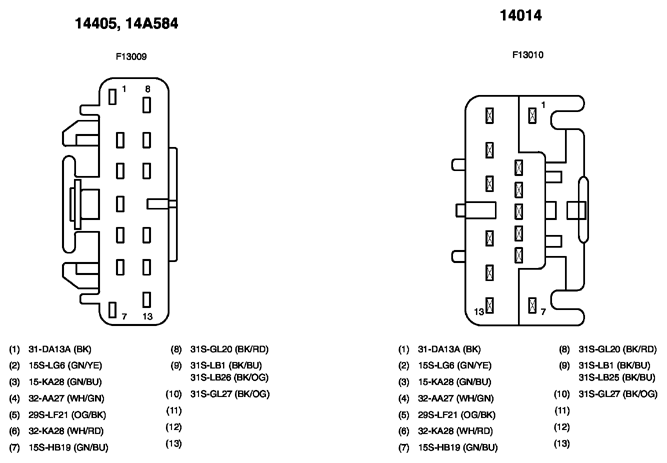

Fig 1: Identifying Inline Connector (C48)

G10361376

Courtesy of FORD MOTOR CO.
