Inline Connector End View (C46)

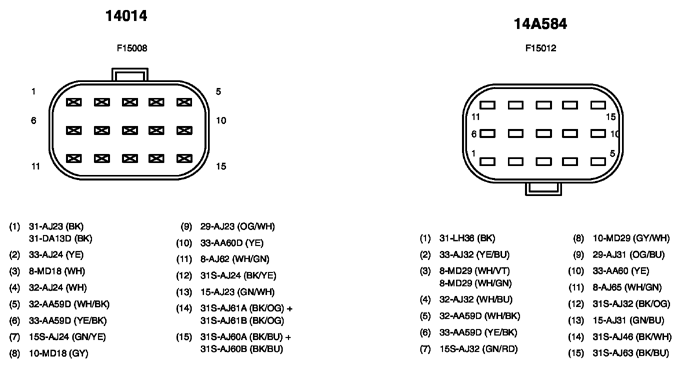

Fig 1: Identifying Inline Connector (C46)

G10361375

Courtesy of FORD MOTOR CO.
