3.0L (4V)

Fig 1: Identifying Firing Order & Timing (3.0L - DOHC, VIN "S")

G00217833

Courtesy of FORD MOTOR CO.

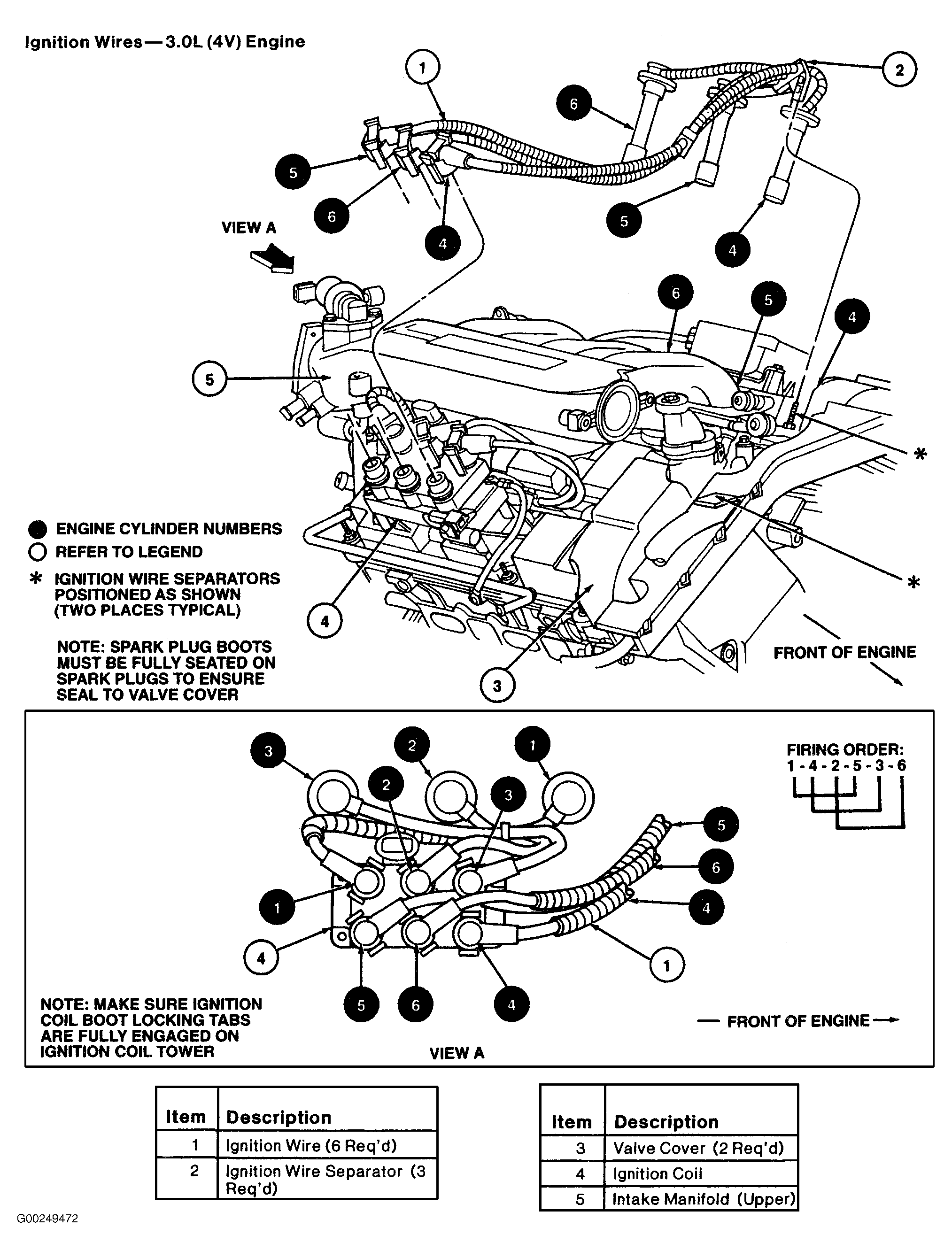

Fig 2: Identifying Spark Plug Wire Routing (3.0L - DOHC, VIN "S")

G00249472

Courtesy of FORD MOTOR CO.
