Pinpoint Test T: The Stability Assist System Cannot Be Disabled

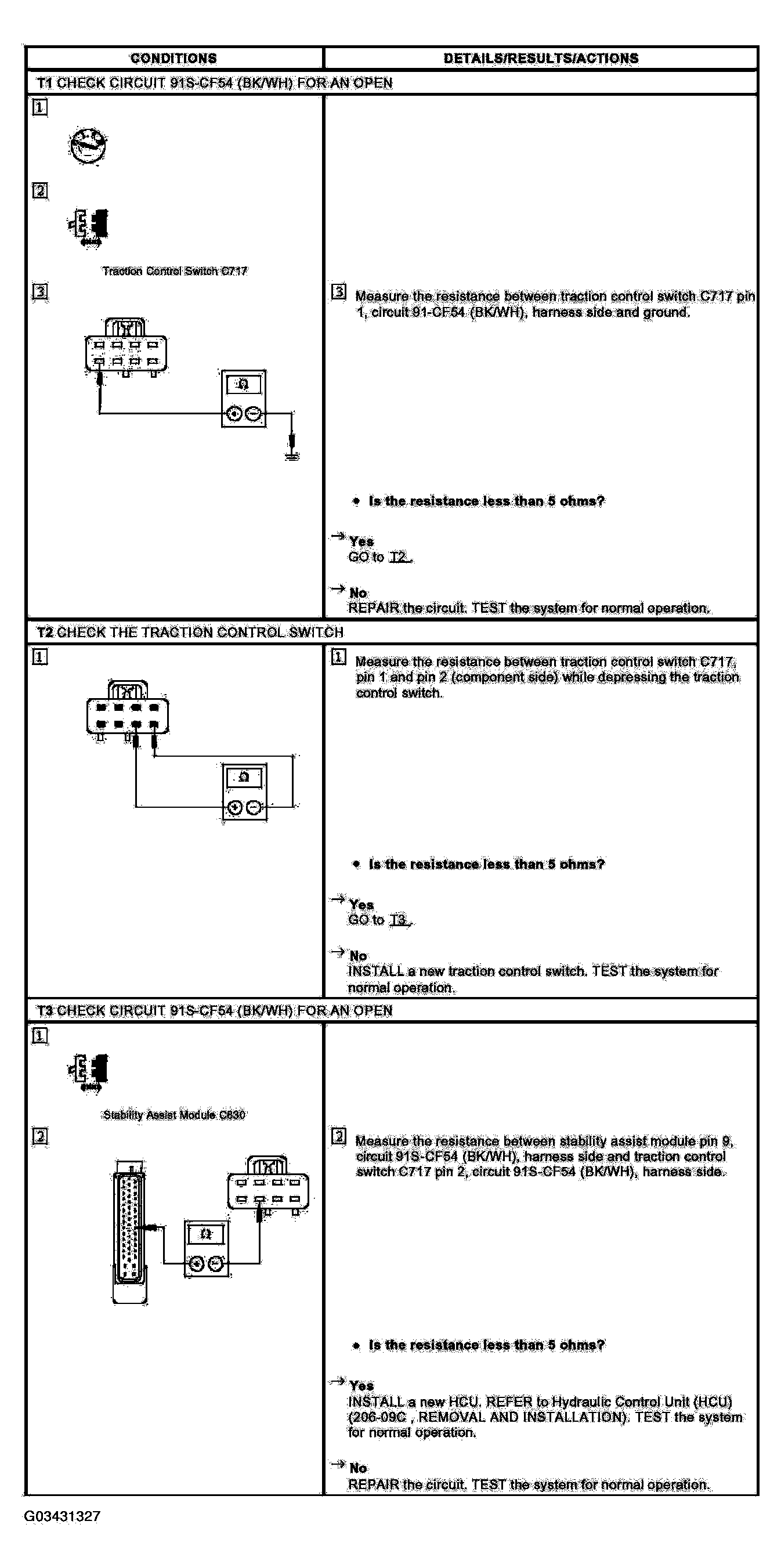

Fig 1: Pinpoint Test T Chart - Stability Assist System Cannot Be Disabled

G03431327

Courtesy of FORD MOTOR CO.
