Pinpoint Test R: The Traction Control Is Inoperative

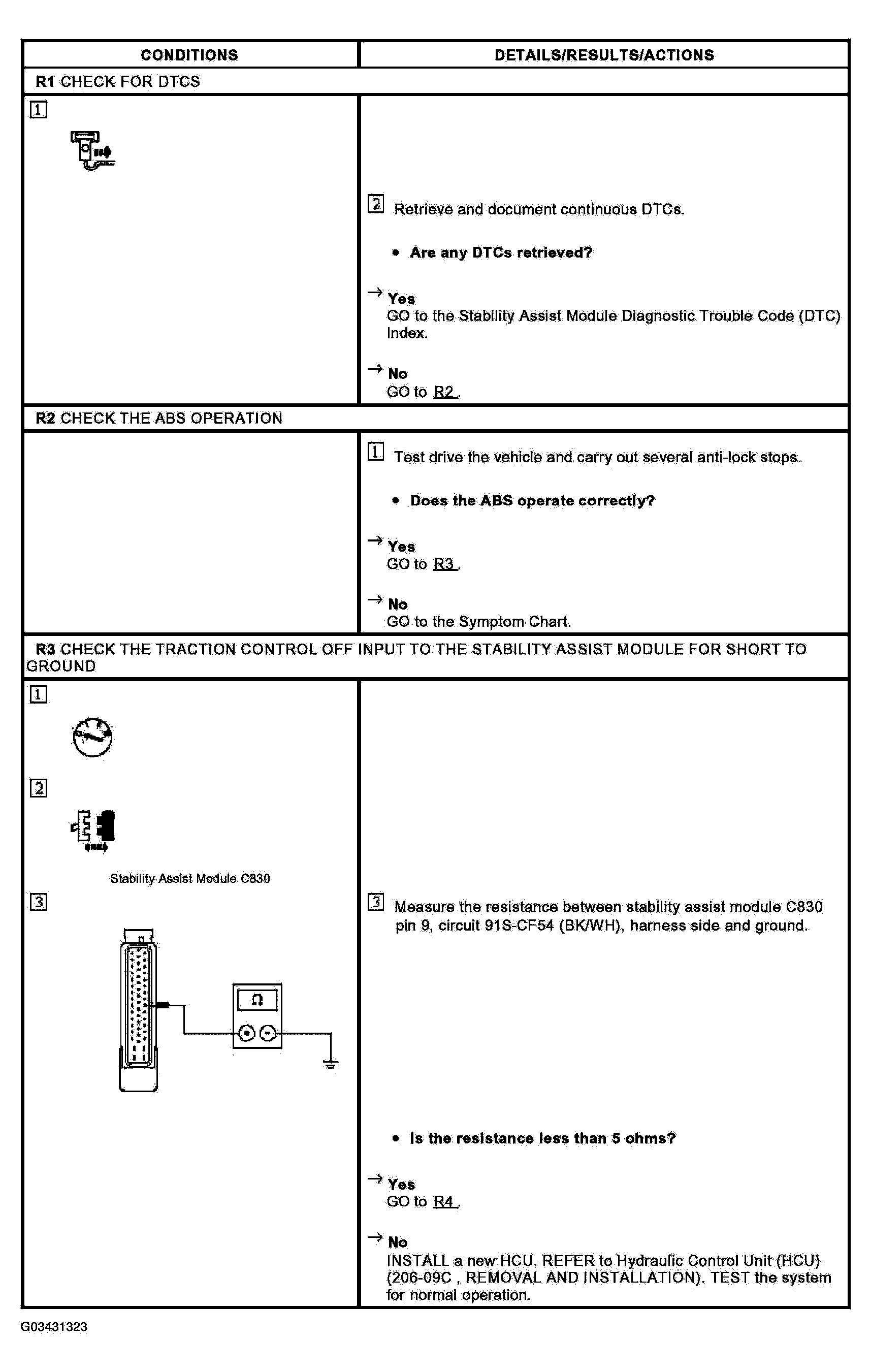

Fig 1: Pinpoint Test R Chart - Traction Control Is Inoperative (R1-R3)
G03431323Courtesy of FORD MOTOR CO.

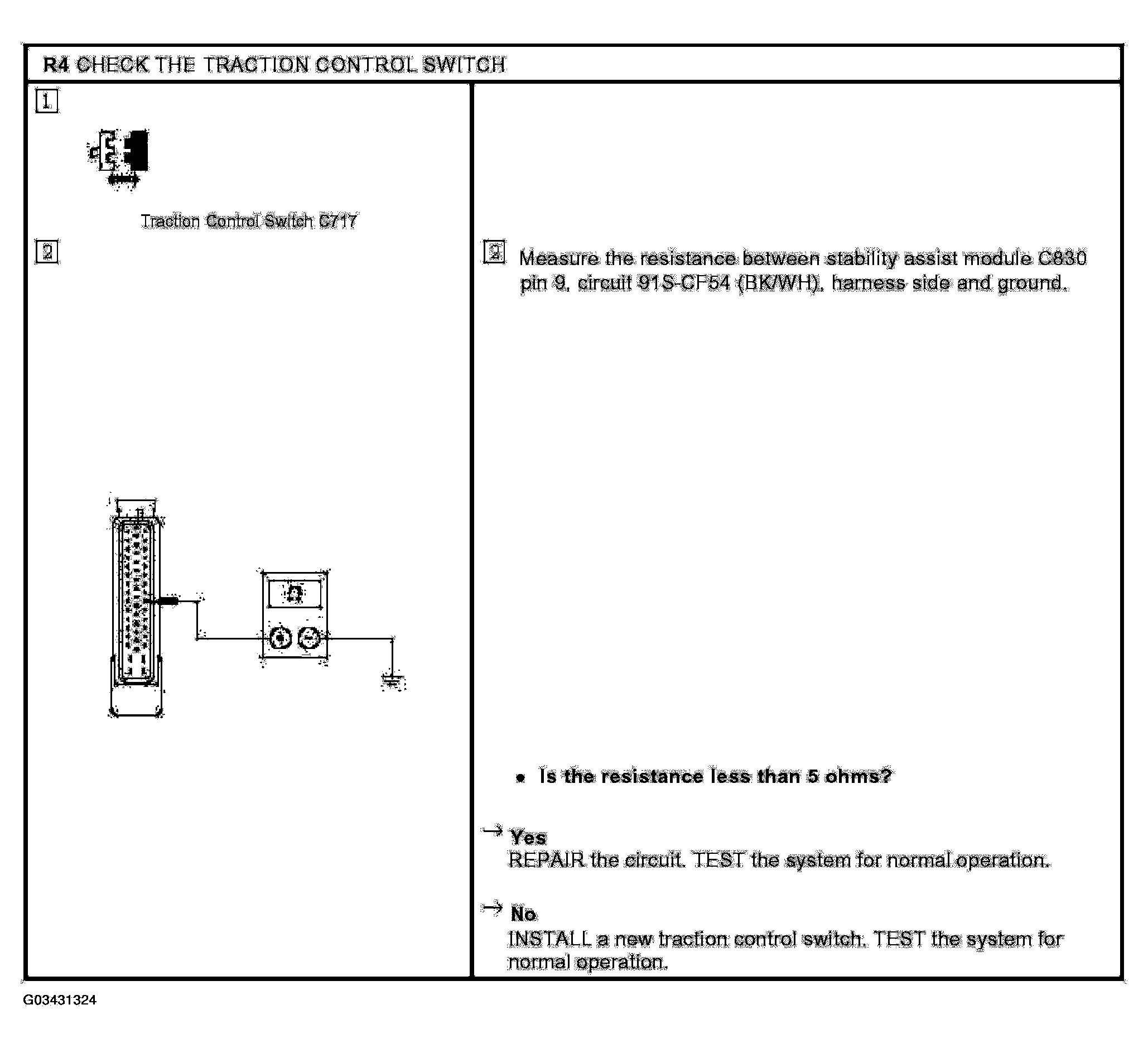

Fig 2: Pinpoint Test R Chart - Traction Control Is Inoperative (R4)
G03431324Courtesy of FORD MOTOR CO.
