Pinpoint Test H: The Red Brake Warning Indicator Does Not Self-Check

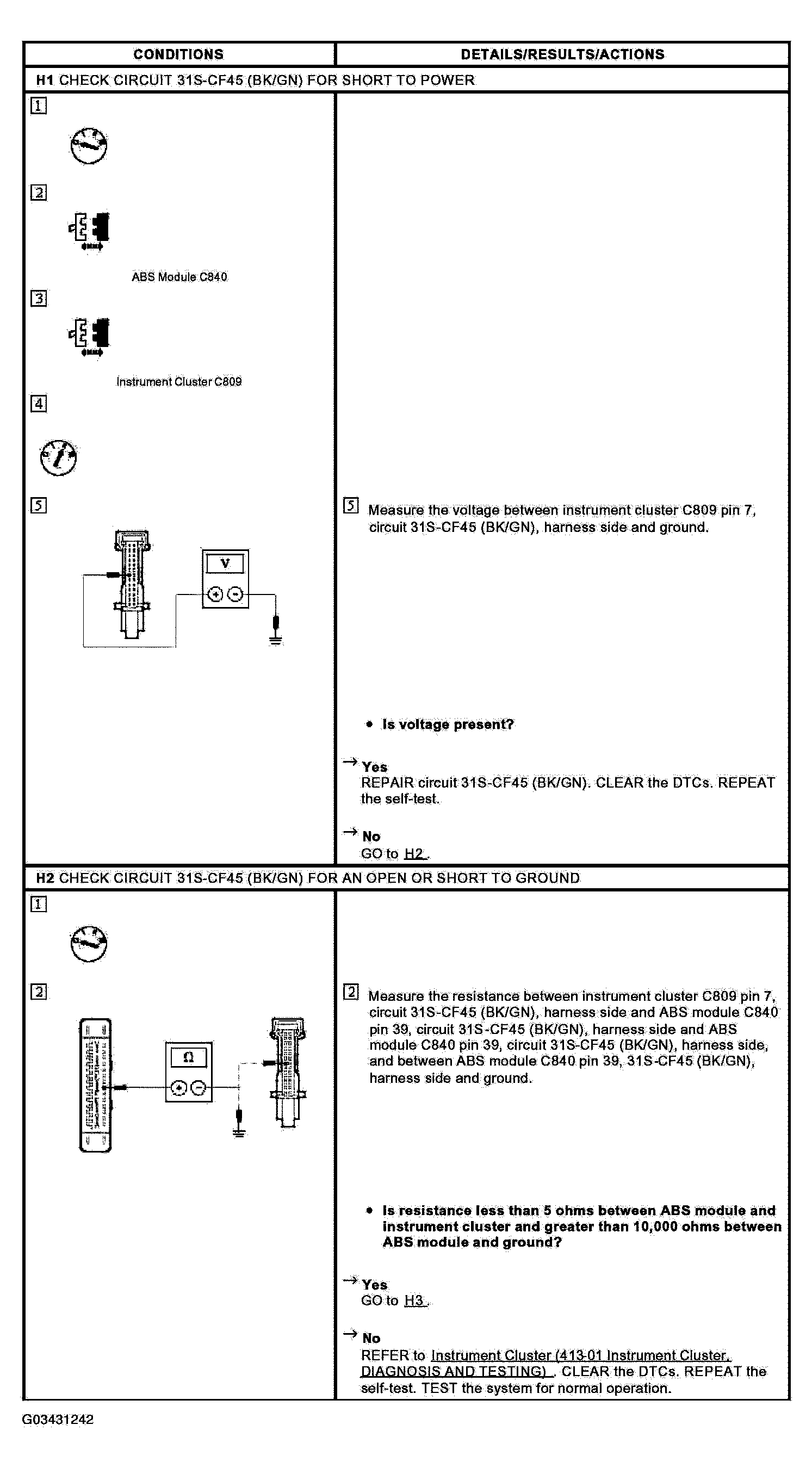

Fig 1: Pinpoint Test H Chart - Red Brake Warning Indicator Does Not Self-Check (H1-H2)
G03431242Courtesy of FORD MOTOR CO.

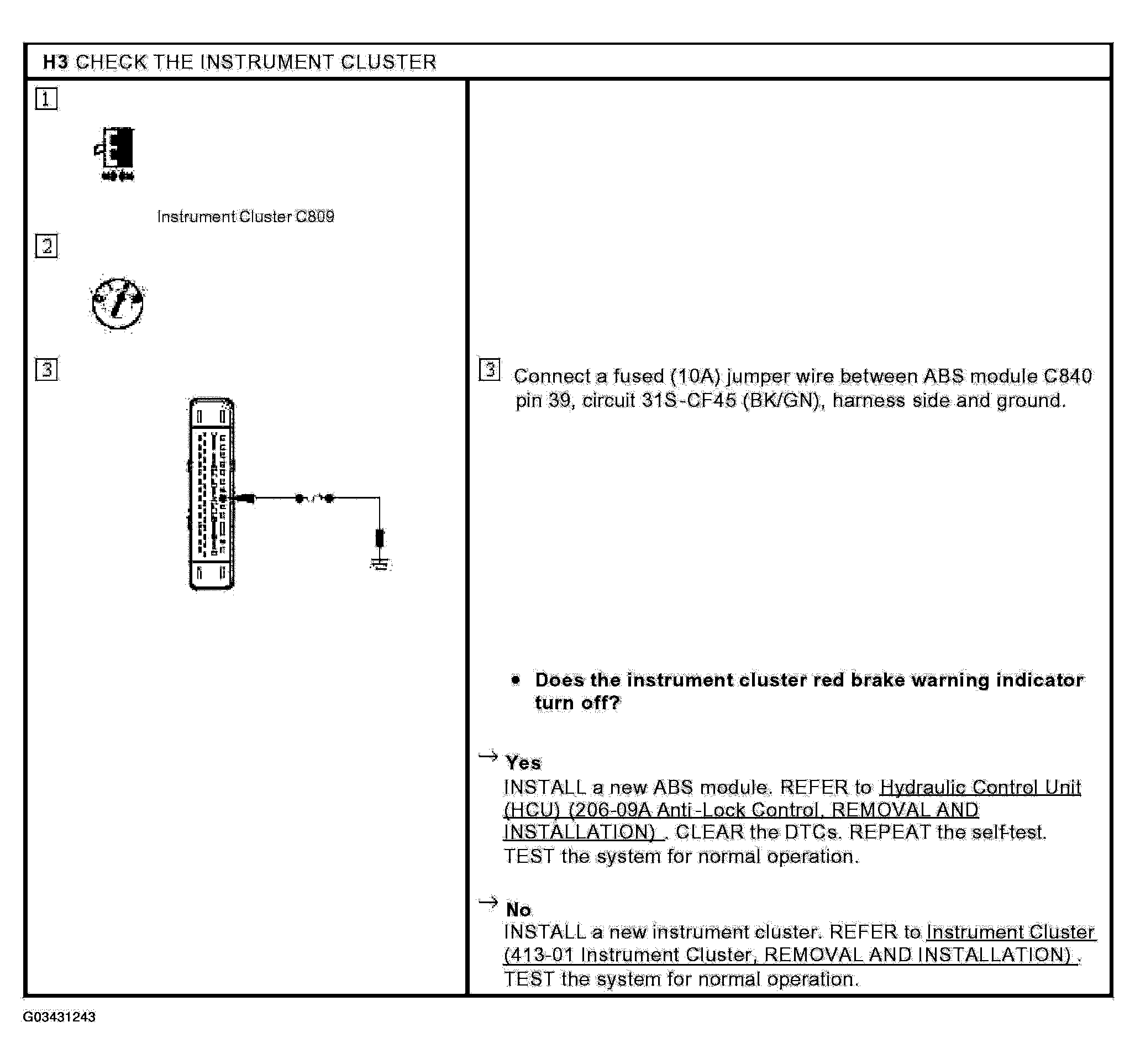

Fig 2: Pinpoint Test H Chart - Red Brake Warning Indicator Does Not Self-Check (H3)
G03431243Courtesy of FORD MOTOR CO.
