Pinpoint Test A: No Communication With The Vehicle Security Module

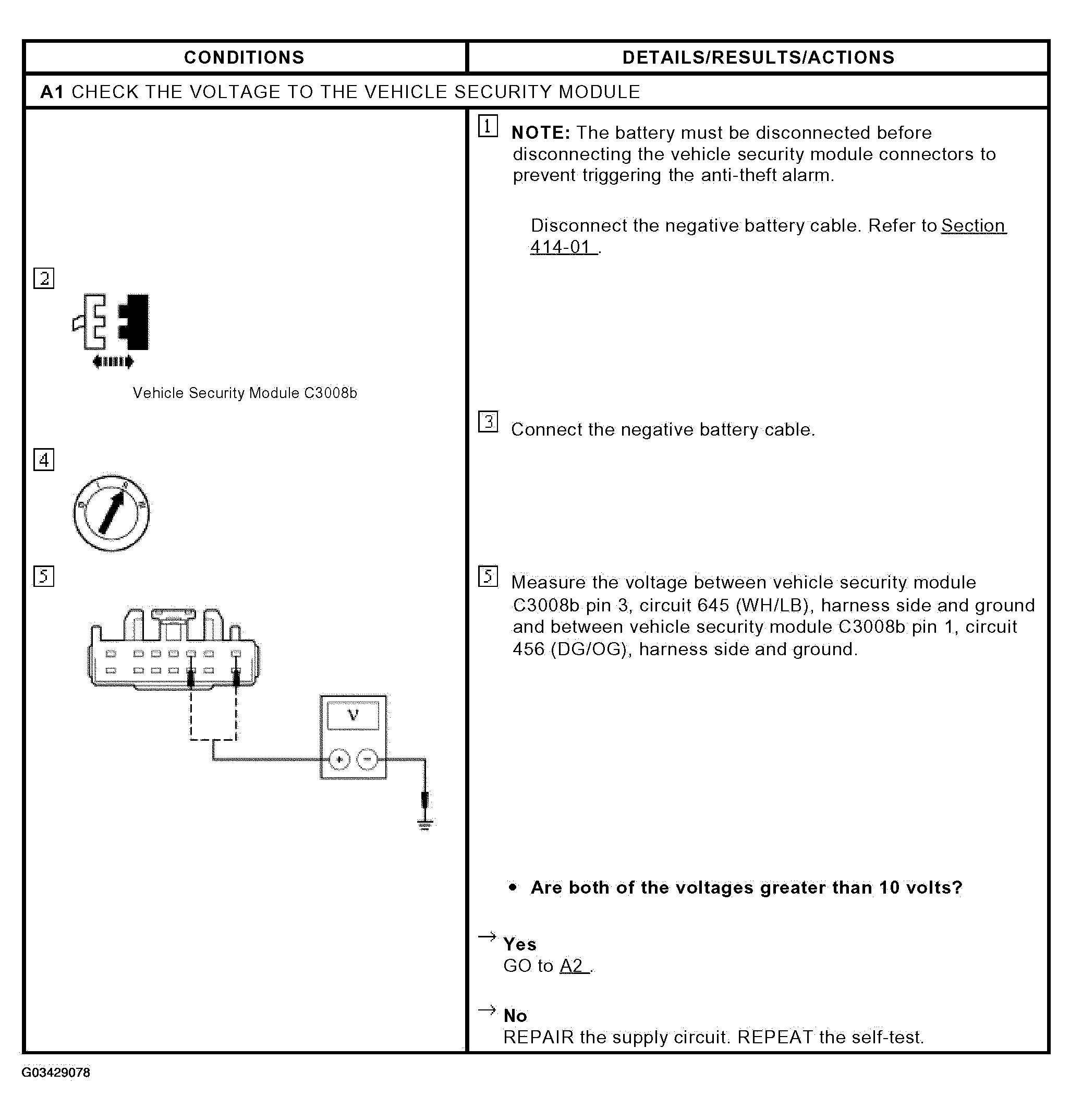

Fig 1: Identifying Pinpoint Test A: No Communication With Vehicle Security Module (A1)
G03429078Courtesy of FORD MOTOR CO.

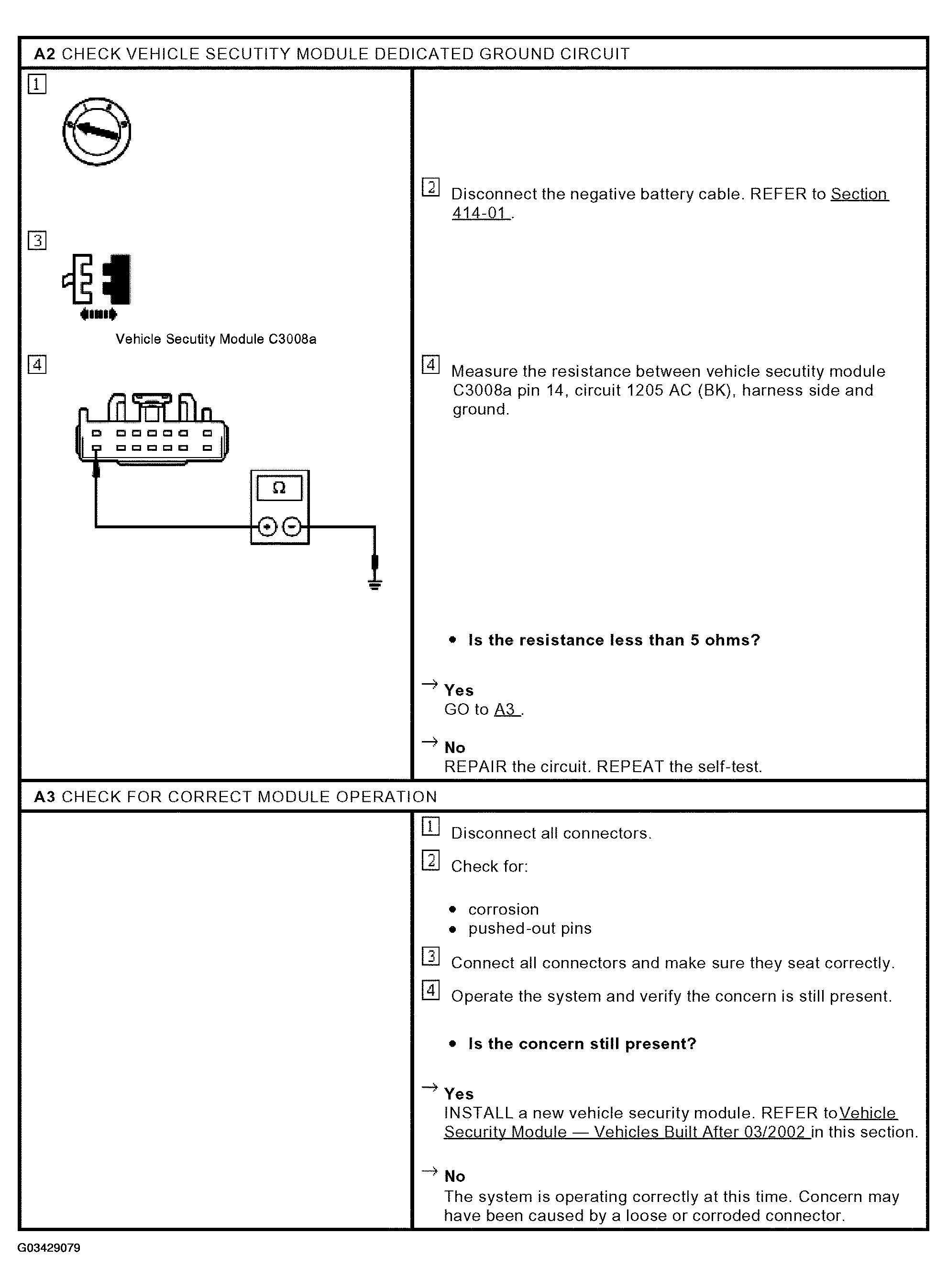

Fig 2: Identifying Pinpoint Test A: No Communication With Vehicle Security Module (A2 & A3)
G03429079Courtesy of FORD MOTOR CO.
