Pinpoint Test C: No Communication With The Generic Electronic Module

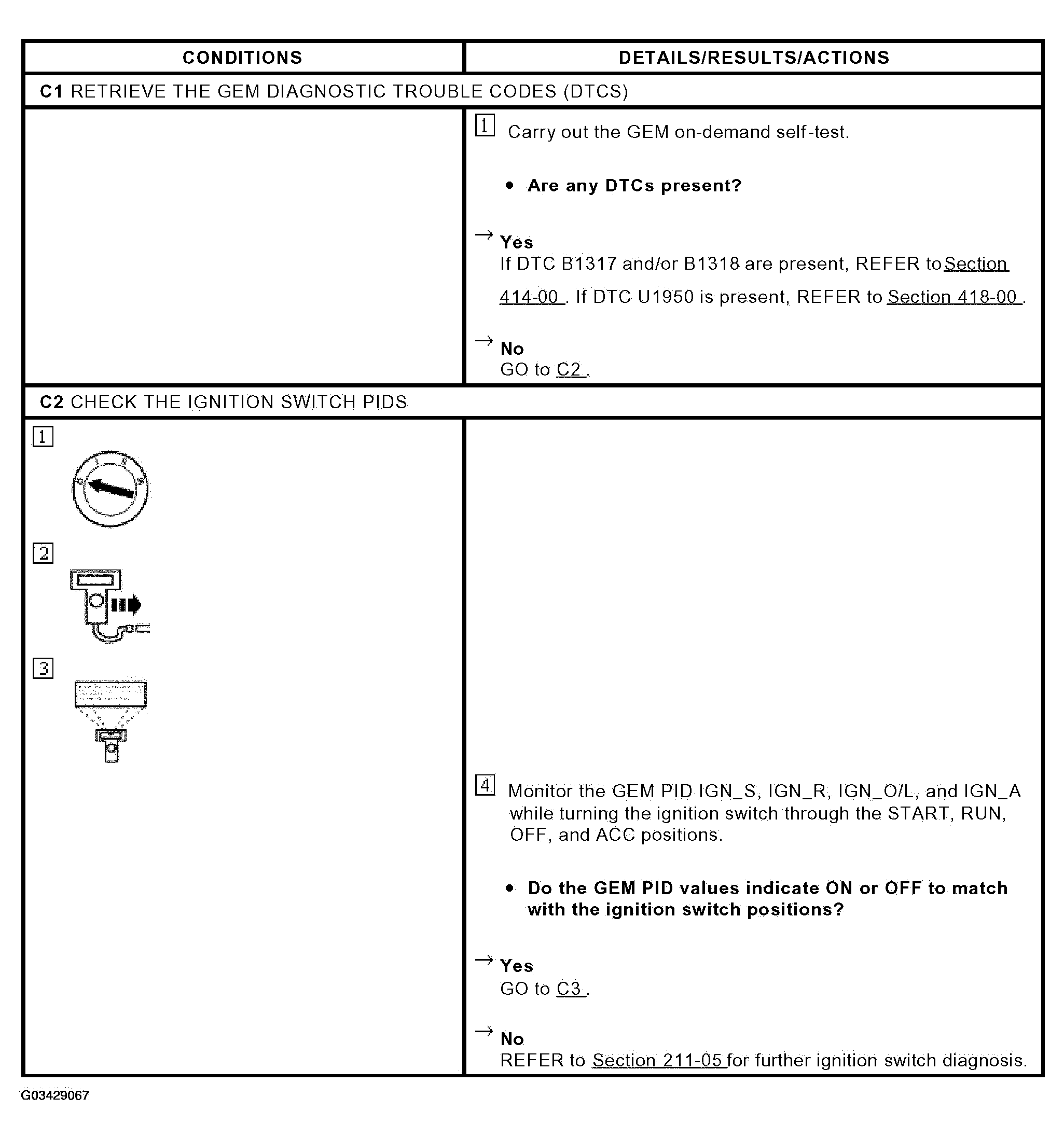

Fig 1: Identifying Pinpoint Test C: No Communication With Generic Electronic Module (C1 & C2)
G03429067Courtesy of FORD MOTOR CO.

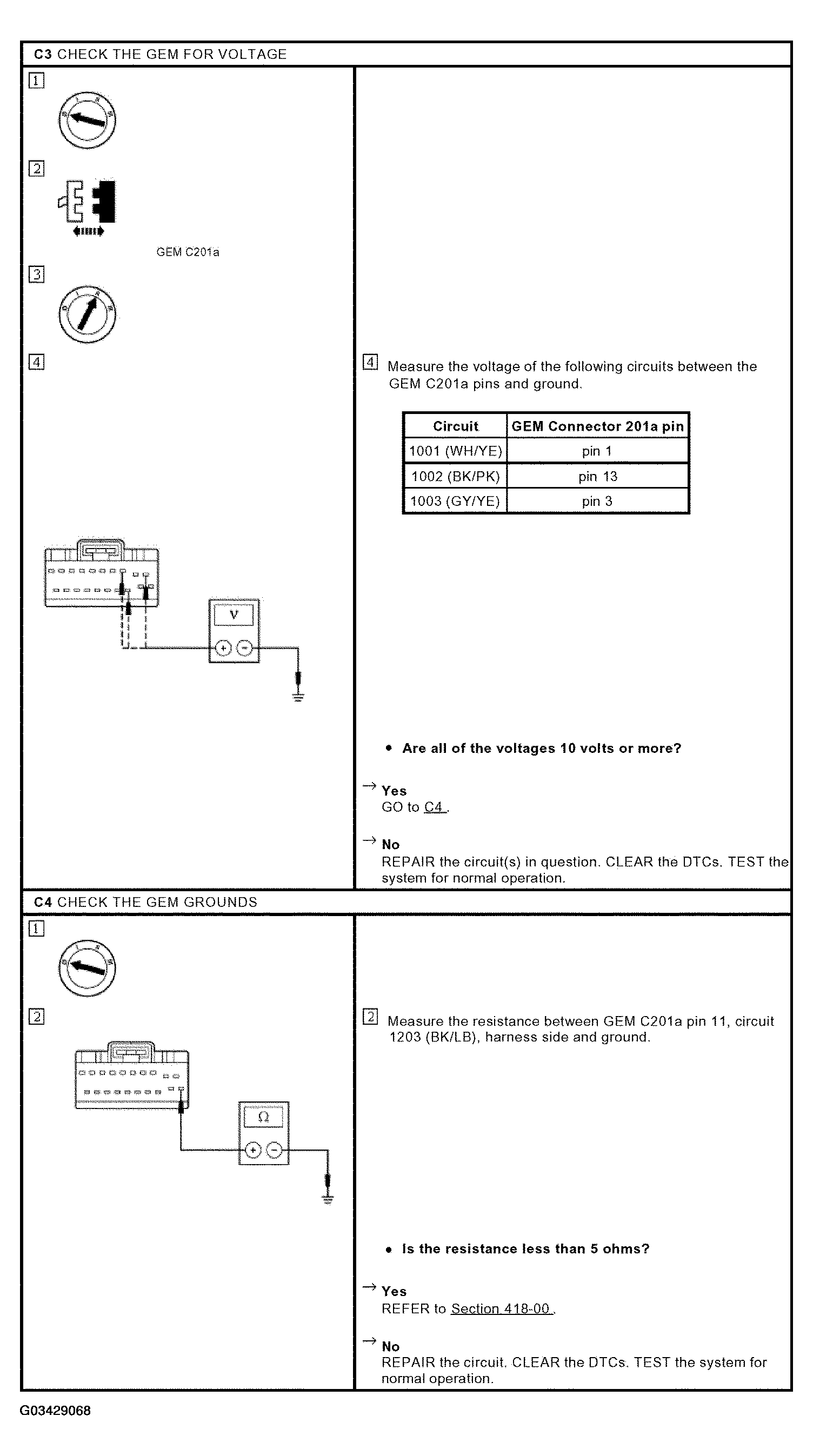

Fig 2: Identifying Pinpoint Test C: No Communication With Generic Electronic Module (C3 & C4)
G03429068Courtesy of FORD MOTOR CO.
