Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Press in on the glove compartment at the points shown and lower the glove compartment.
    Fig 1: Pressing On Glove Compartment
    G02168702Courtesy of FORD MOTOR CO.
  3. Remove the 4WD control module.
    1. Disconnect the 4WD control module electrical connectors.
    2. Remove the two screws.

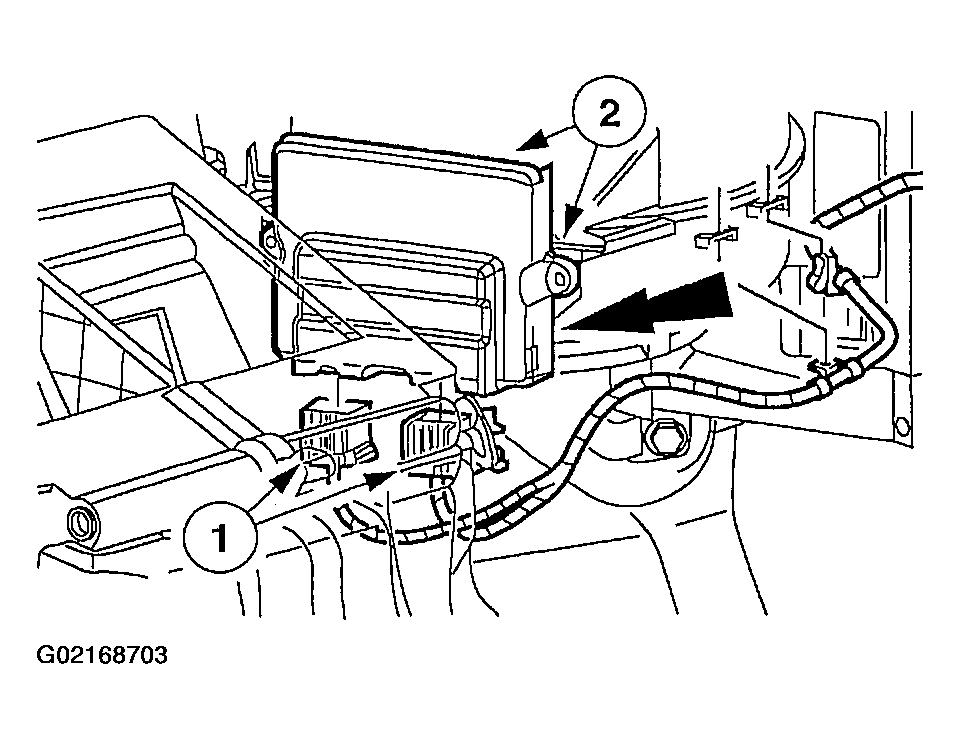

      Fig 2: Removing 4WD Control Module
      G02168703Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
