Pinpoint Test A: No Communication With The Generic Electronic Module (Gem)

WARNING: This page is about a different car, the 2004 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

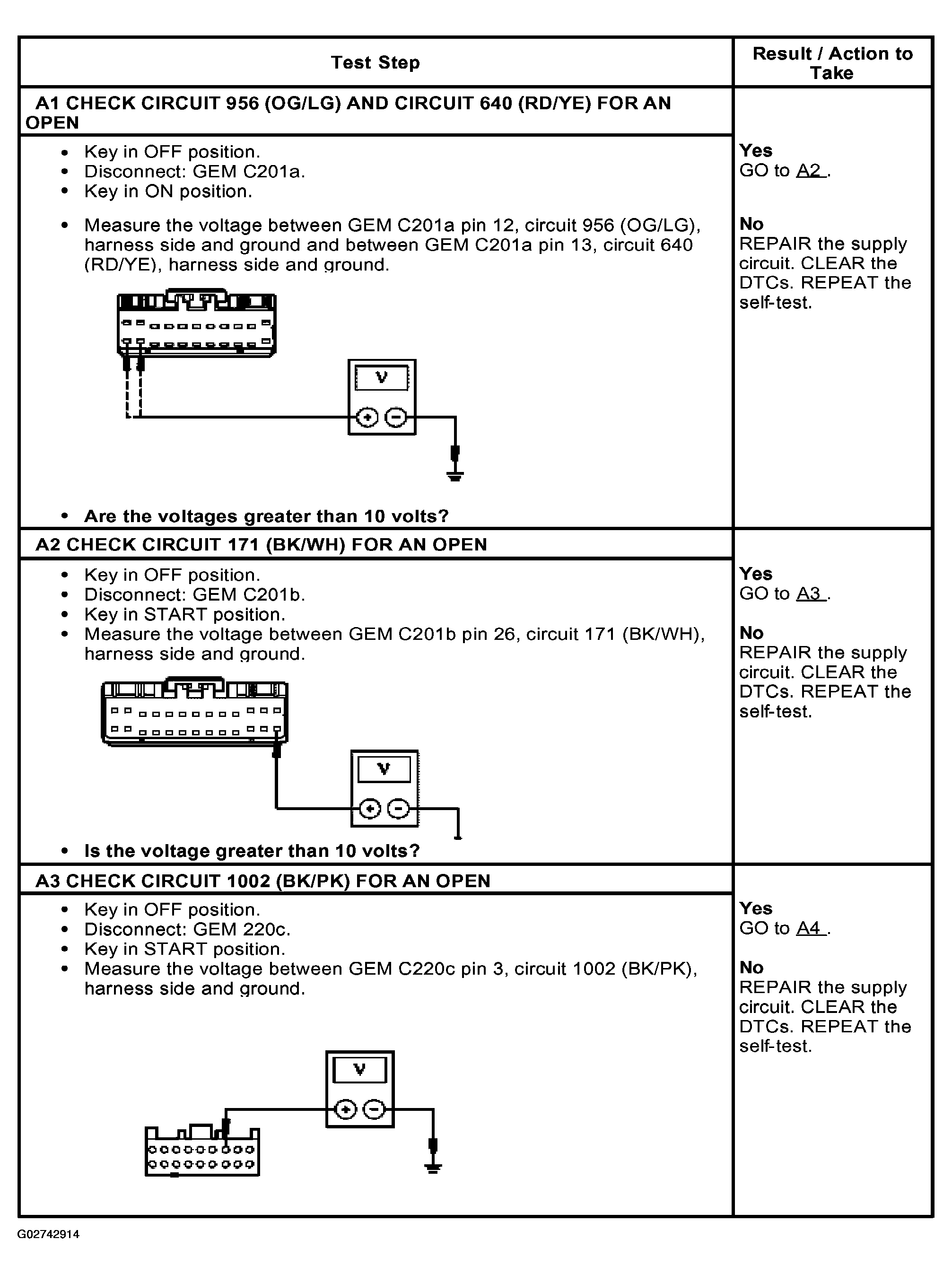

Fig 1: Pinpoint Test A: No Communication With Generic Electronic Module (GEM) Step (A1-A3)
G02742914Courtesy of FORD MOTOR CO.

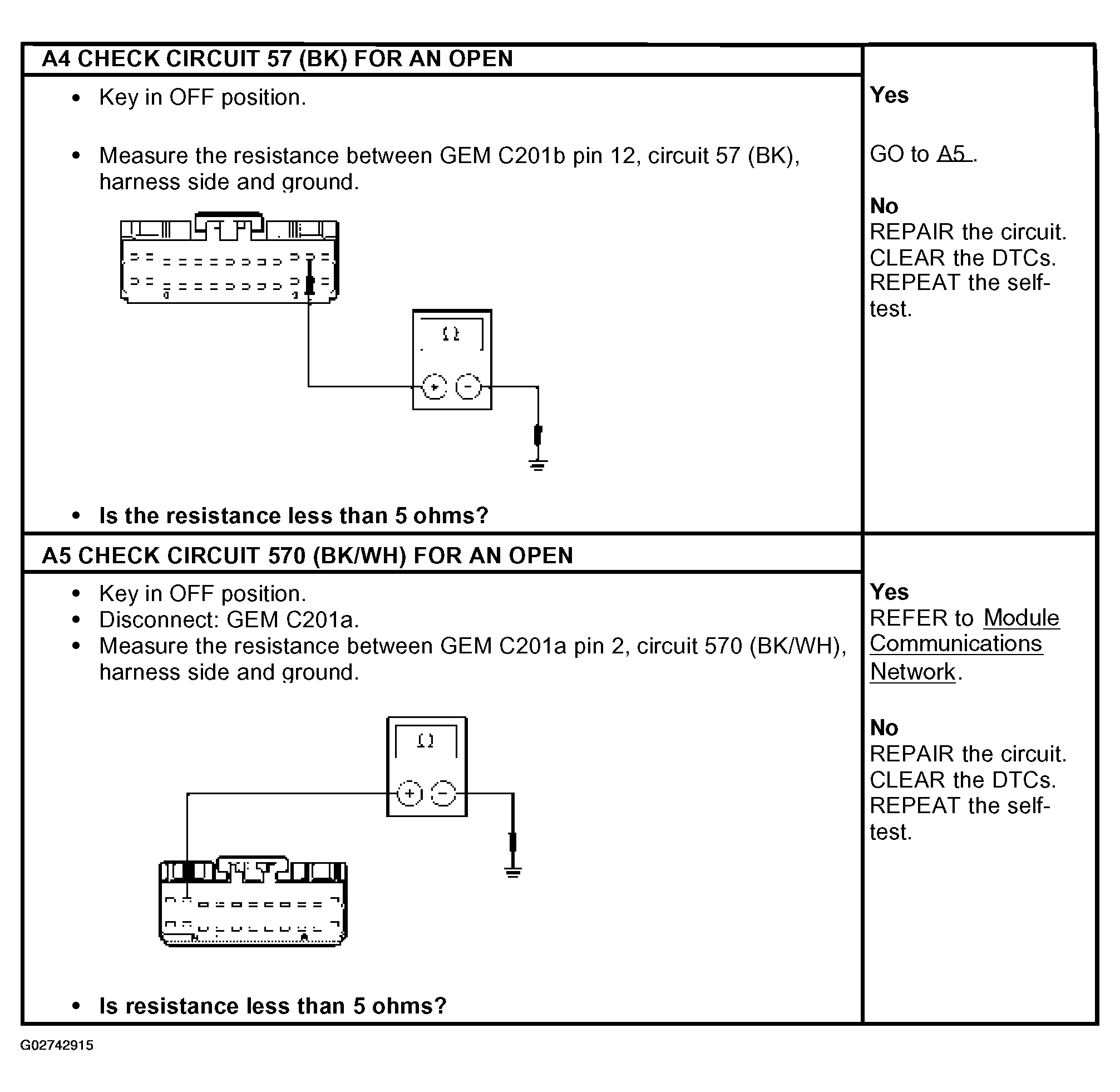

Fig 2: Pinpoint Test A: No Communication With Generic Electronic Module (GEM) Step (A4-A5)
G02742915Courtesy of FORD MOTOR CO.
